Product Code: 3242139

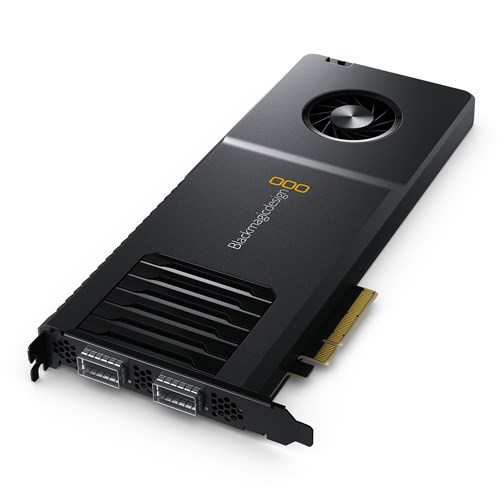

The Blackmagic DeckLink IP 100G lets you capture and play back up to 8 HD/Ultra HD channels into 2110 IP systems. With dual 100G QSFP ports, GPUDirect RDMA for direct memory transfers between DeckLink and GPUs, and support for IP10 compression, it’s ideal for high-end IP broadcast. PCIe Gen 4, 10-bit uncompressed video, and full DaVinci Resolve compatibility make it broadcast-grade and future-ready.
Blackmagic DeckLink IP 100G Key Features:
- Supports up to 8 simultaneous HD or Ultra HD video channels
- PCIe Gen 4 interface for high-speed data transfer
- Dual 100G Ethernet QSFP ports for redundancy or dual switch connectivity
- Conforms to SMPTE ST2110 standards for IP video, audio and ancillary data
- Built-in cooling system for thermal reliability
- Supports GPUDirect RDMA for direct GPU memory access
- Reduces PCIe bandwidth use and latency for GPU video processing
- Isolated video buffer architecture acts as a hardware-level firewall
- Capture and playback simultaneously on each channel
- Supports all SD, HD, and Ultra HD formats up to 2160p60
- Individual video standard control per channel
- Supports 10-bit uncompressed video for pixel-accurate quality
- IP10 codec for high frame rate Ultra HD over 2110 IP with minimal latency
- Works with DaVinci Resolve, Premiere Pro, Media Composer and more
- Compatible with popular VFX tools including After Effects and Fusion
- Windows WDM driver included for broader system compatibility
- Multi-channel operation on macOS, Windows and Linux
- Supports ProRes, DNxHD and uncompressed video formats
- Developer SDK included for building custom broadcast systems
- Enables live grading, VFX and real-time colour correction over IP
Expanded Blackmagic DeckLink IP 100G Key Features:
High-Density 2110 IP broadcast integration
DeckLink IP 100G is engineered for demanding broadcast environments that require seamless integration with SMPTE ST2110 networks. It supports up to eight channels of simultaneous HD and Ultra HD video capture and playback, conforming to ST2110-20 for uncompressed video, ST2110-30 for audio, and ST2110-40 for ancillary data. Each channel operates independently, making it suitable for multi-stream production setups, real-time graphics generation, or GPU-accelerated AI video processing — all over standard 2110 IP infrastructure. With support for precision synchronisation via PTP, this card ensures reliable timing across complex broadcast systems.
Built for performance-critical broadcast systems
With a PCIe Gen 4 interface and dual 100G QSFP ports, DeckLink IP 100G delivers substantial data throughput to support high-frame-rate Ultra HD over IP. The dual-port design enables either full redundancy or dual-switch connections for increased network resilience. To meet bandwidth demands at higher resolutions such as 2160p60, the onboard IP10 codec compresses video with only 8 samples of latency, while maintaining compatibility with downstream 10G-based systems. This codec is implemented in FPGA with minimal resource usage, allowing reliable performance without inflating system complexity or cost.
Low-latency GPU acceleration with GPUDirect RDMA
One of the standout features is support for GPUDirect RDMA, which enables direct memory transfers between DeckLink IP 100G and compatible GPUs. This minimises PCIe bandwidth use and dramatically reduces processing latency — ideal for live grading, real-time visual effects, and colour correction. Video bypasses CPU bottlenecks and reaches the GPU with significantly lower overhead, making it highly suitable for systems that rely on fast, frame-accurate processing such as virtual sets or automated vision-based tasks.
Broadcast-grade video format support
DeckLink IP 100G supports a wide array of professional video formats, including Apple ProRes, DNxHD, and 10-bit uncompressed video. Operating in 10-bit ensures quadruple the colour precision of standard 8-bit, which is critical for maintaining the integrity of chroma keying, VFX layering, and professional-grade colour correction. SD, HD, and Ultra HD formats are supported across all channels, including 720p, 1080i, 1080p and up to 2160p60. Each input and output channel can be configured with its own resolution and frame rate, with instant format switching via the DeckLink SDK or Desktop Video Utility.
Secure, isolated video transport system
Security is a key concern in IP-based video systems, and DeckLink IP 100G addresses this with a frame buffer-based system that isolates video traffic from the host system's network interface. This design prevents unauthorised access from software or network sources, functioning as a hardware-level barrier between the 2110 IP network and the computer. All video and audio data is routed through dedicated buffers, ensuring that only intended content is processed and transferred. This makes the card a reliable choice for broadcasters requiring robust protection against rogue software or external threats in mission-critical IP production environments.
What’s in the box?
- 1 x Blackmagic DeckLink IP 100G
FAQs:
Is the Blackmagic DeckLink IP 100G compatible with popular video editing and streaming software?
Blackmagic’s DeckLink IP 100G supports a wide range of editing, grading, and streaming applications. It works seamlessly with DaVinci Resolve, Adobe Premiere Pro, Media Composer, Final Cut Pro, and VFX platforms like Fusion and After Effects. Streaming compatibility includes Open Broadcaster, Wirecast, and XSplit on both macOS and Windows. This means users can continue working with familiar software while moving to 2110 IP infrastructure.
Does the Blackmagic DeckLink IP 100G require specialised hardware or drivers to operate?
The Blackmagic DeckLink IP 100G connects via standard PCIe Gen 4 and is compatible with macOS, Windows, and Linux systems. It comes with a Windows WDM driver and Blackmagic’s Desktop Video SDK, so users can quickly integrate it into custom or other workstations. The onboard cooling system ensures reliability under heavy loads without the need for additional thermal management solutions.
What kind of development support is available for the DeckLink IP 100G?
Blackmagic provides a free software development kit (SDK) for Mac, Windows, and Linux, designed to support both low-level hardware control and high-level application integration. The SDK is widely used by broadcast manufacturers and allows developers to create tailored capture, playout, and processing applications. Whether for internal systems or commercial software, the SDK helps ensure long-term support and flexibility.
How does DeckLink IP 100G handle audio over IP?
The card conforms to SMPTE ST2110-30, which standardises uncompressed audio transport over IP. This ensures high fidelity, low-latency audio synchronisation across all channels. DeckLink IP 100G supports multi-channel audio per video stream, and the data is managed separately from video and ancillary streams, as defined in the ST2110 standard.
Back to topProduct Specification
| Audio Formats | Input/Output: 48 kHz / 24-Bit |
| Operating System | Windows 10 to 11, macOS 14.0, macOS 15.0 or Later, Linux |
| Weight [g] | 390.00 |
