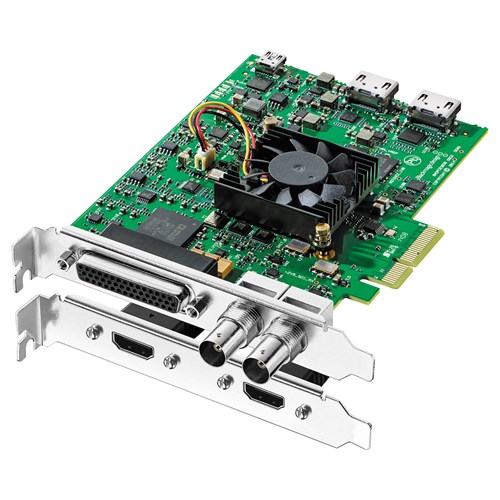

Capture and playback your videos, games, and more with the Blackmagic DeckLink Studio 4K. Featuring 6G-SDI inputs and outputs, this professional capture card is capable of outputting SD to Ultra HD resolutions. Supplied with an analogue breakout cable, the DeckLink supports a wide range of video and audio standards. Additionally, this card also provides SD down-conversion.

Blackmagic DeckLink Studio 4K Key Features:

  • Capable of outputting up to both HDI and DCI 4K outputs
  • Compatible with the RS-422 deck control system for intuitive operation
  • Analogue and digital connections for working with different devices
  • Compatible with macOS, Windows, and Linux operating systems
  • Physically installs on a station featuring a PCIe slot
  • Works with most popular software designed for video capture and editing
  • HD up and HD down-conversion feature obtains the desired quality video
  • HD up and HD down-conversion feature obtains the desired quality video
  • Includes analogue breakout cable to support a wide range of audio and video standards
  • Works with compressed video formats including ProRes and DNxHD
  • Outputs high-quality video without any frame or resolution loss
  • Internal SD keying offers cleaner compositions and exceptional colour correction
  • Loaded with firmware that updates frequently for a smooth operation
  • Provides hardware-based real-time colourspace conversion

Expanded Blackmagic DeckLink Studio 4K Key Features:

Impressive Quality

Equipped with both digital and analogue input and output connections, the DeckLink Studio is capable of working with different devices and video standards. There are SDI and HDMI inputs and outputs on this capture card that support up to UHD 4K 3840x2160 and DCI 4K 4096x2160 resolutions, providing fine details in the results. The 6G-SDI input works with previous generation resolutions, outputting colour accurate and high fidelity results without any resolution or quality loss.

Software Support

Supporting a variety of video editing software, such as Da Vinci Resolve, this capture and playback card offers instant use, allowing you to work on your projects right after you install it on your workstation. Additionally, the PCIe card supports various software applications that are widely used in video and audio editing. Best of all, this card has internal firmware that updates frequently to provide stable performance and stay up-to-date with the latest software apps.

Flexible Support

The DeckLink Studio 4K provides flexible format support, allowing you to work with compressed and uncompressed video standards. You can easily work with codecs such as ProRes and DNxHD. In addition, this playback card is supplied with an analogue breakout cable for working with traditional video sources, such as VHS, DVD player or Betamax videotape. There are also two channels of AES/EBU audio and four channels of analogue audio that replicates high-fidelity audio from the source.

Exceptional Processing

Blackmagic Studio 4K features built-in hardware-based converter outputs, facilitating conversion from SDI to HD and vice-versa. This enables you to archive older formatted video files into newer resolutions, or compress a large file into a smaller one for easy storage. In addition to this, the DeckLink Studio offers real-time hardware-based colourspace conversion. Also, cross-conversion from 720p to 1080p and vice-versa on playback is also possible.

Multi-Rate Support

Featuring HDMI and SDI video connections, this compact card allows you to switch between SD, HD, 2K, and 4K resolutions. Plus, the component analogue connections are switchable from SD to HD and vice-versa. However, this card cannot capture from copy protected HDMI sources. It offers a 1-0-bit colour precision for colour accurate and vivid output.

What's in the box?

  • 1 x Blackmagic DeckLink Studio 4K
  • 1 x SD Card with Support Software/Drivers
  • 1 x Breakout Cable for Analog and RS-422 Control
  • 1 x HDMI Bracket
  • Limited 3-Year Warranty

FAQs:

Can you capture composite SD video while capturing SDI simultaneously?

SDI and composite analogue video formats do not support high definition resolution. You may not be able to see videos on these outputs when working with HD video input.

Is this PCI Express card compatible with Mac systems?

This capture card is compatible with Mac, Windows, and Linux workstations that have a PCIe slot.

Is this card compatible with Blackmagic RS-422 control?

There is an analogue breakout cable supplied with this capture card that lets you connect and operate the RS-422 control. It further allows you to archive video data from traditional video equipment, such as VHS, DVD players, and more.

Can you work with compressed files with this card?

You can easily work with both compressed and uncompressed file codecs, such as ProRes and DNxHD.

Is this card capable of capturing audio from the source file?

This card has two channels for AES/EBU audio and four channels of analogue audio to capture sound from the source file without any quality loss.

Back to top

Product Specification

Type 4K Enhancer
