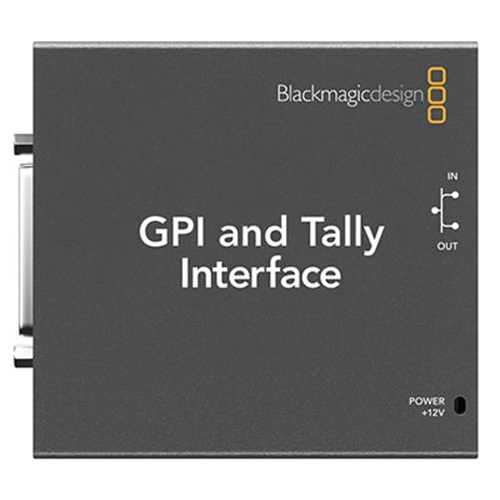

Blackmagic GPI + Tally Interface

£471.00 Special Order
Spread cost over 12, 24 or 36 months
>
Paypal Pay in 3
Pay in 3 interest free payments
>
Get this for even less with trade-in
>
Back to top

The Blackmagic GPI + Tally Interface is designed to send a tally signal to your cameras and monitors to indicate which camera is 'on-air'. Ideal for multi-camera productions, it provides 8 contact closure inputs and outputs for connecting to ATEM switchers and Videohub routers. You can also connect multiple interfaces together to increase the number of inputs and outputs.

Key Features: Blackmagic GPI + Tally Interface (BMD-SWTALGPI8)

  • Displays tallies for video signals
  • Indicates "on-air" status
  • For connecting to ATEM Switchers and Videohub Routers
  • 8 configurable GPIs and 8 configurable GPOs
  • Can be used with multiple interfaces to increase inputs and outputs
  • Ethernet connection for connecting to other ethernet enabled equipment
  • 1x USB 2.0 high-speed interface for configuration and firmware updates

The GPI and Tally Interface is a low cost alternative for multi-camera productions where a Camera Control Unit (CCU) operator needs to switch video from one of several cameras being controlled to a single monitor. It features 8 configurable GPIs and 8 configurable GPOs. The GPIs send commands to your Videohub by ethernet to switch the selected camera to the operator's monitor under certain crosspoint conditions. The GPOs send a tally signal to your cameras or other devices under certain crosspoint conditions. Refer to the pinout diagram on the back of the unit when fabricating your custom cable.

  Back to top

Product Specification

Type Tally Interface
