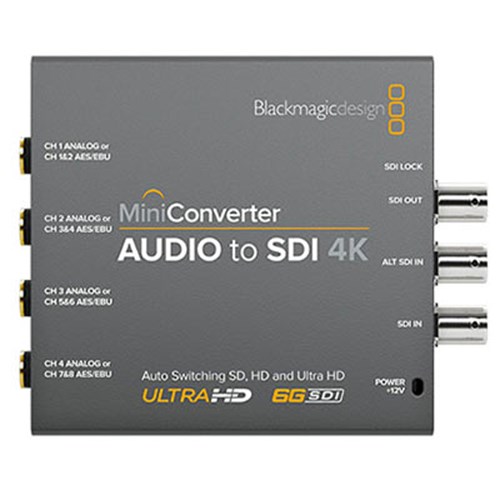

Blackmagic Mini Converter - Audio to SDI 4K
The Blackmagic Mini Converter - Audio to SDI 4K allows users to embed either 4 channels of analogue audio, or 8 channels of AES-EBU digital audio into an SDI connection. Take audio from professional audio mixers and analogue decks into your SDI video connection, use with SDI routers and decks, or add additional audio channels to converters. More
Finance options available
The Blackmagic Mini Converter - Audio to SDI 4K allows users to embed either 4 channels of analogue audio, or 8 channels of AES-EBU digital audio into an SDI connection. Take audio from professional audio mixers and analogue decks into your SDI video connection, use with SDI routers and decks, or add additional audio channels to converters.
Blackmagic Mini Converter - Audio to SDI 4K
- Connections:
- SDI Video Inputs: 1 x SD, HD or 6G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails
- SDI Video Outputs: 1 x Embedded SDI Output
- Analog Audio Inputs: 4 channels of professional balanced analog audio with standard 1/4 inch jack connections
- Digital Audio Inputs: 8 channels of professional balanced digital with standard 1/4 inch jack connections
- SDI Redundant Input: Automatically switches over if main SDI input is lost
- Multi Rate Support: Auto detection SD, HD or 6G-SDI
- Updates and Configuration: Via USB 2.0 high speed (480 Mb/s)
- Reclocking: Yes
- Standards:
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
- 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2036, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601
- SDI Video Rates: SDI video connections are switchable between standard definition and high definition
- SDI Video Sampling: 4:2:2, 4:4:4
- SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit
- SDI Colour Precision: 4:2:2, 4:4:4
- SDI Colour Space: YUV, RGB
- SDI Auto Switching: Automatically selects between SD, HD, 3G and 6G-SDI
- Software:
- Software Control: Mac OS X™ and Windows™ software upgrade via USB
- Internal Software Upgrade: Via included updater application
- Operating systems: MacOS 10.12 Sierra or later, Windows 8.1, Windows 10
- Power requirements:
- Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point
- Power Consumption: 8.40 Watts
- Operational Voltage Range: 12-31V DC
- Dimensions: 115 x 92.27 x 23mm
- Weight: 216g
What's included:
- Mini Converter Audio to SDI 4K
- 12V universal power supply with international socket adaptors
