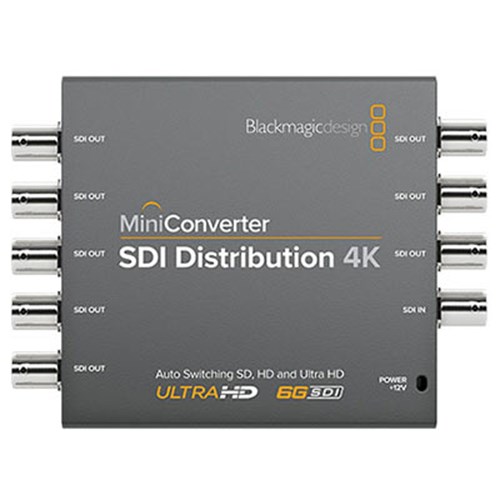

Connect to multiple SDI devices with the Blackmagic Mini Convert – SDI Distribution 4K. A single SDI input can be distributed to up to 8 different SDI devices, with auto-switching between all SD-SDI, HD-SDI, 3G-SDI, and 6G-SDI video formats. The SDI Distribution 4K is also compatible with all ASI, ancillary, and embedded audio formats.
- SDI Video Inputs: Switchable between SD, HD and 6G-SDI
- Reclocking: Yes
- SDI Video Outputs: 8 outputs automatically match the SDI video input
- Multi Rate Support: Auto detection of SD, HD or 6G-SDI
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
- 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K Video Standards: 4K DCI 24p
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2081
- SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K
- SDI Video Sampling: 4:2:2 and 4:4:4
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
- SDI Colour Precision: 4:2:2 and 4:4:4
- SDI Colour Space: YUV and RGB
- SDI Auto Switching: Automatically detects SD, HD or 6G-SDI
- ASI Support: Yes
- Power requirements:
- Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point
- Power Consumption: 4.80 Watts
- Operational Voltage Range: 12-31V DC
- Operating systems: MacOS 10.12 Seirra or later
- Dimensions: 122.1 x 92.27 x 23mm
- Weight: 337g
Back to top
- Mini Converter SDI Distribution 4K
- 12V universal power supply with international socket adapters
