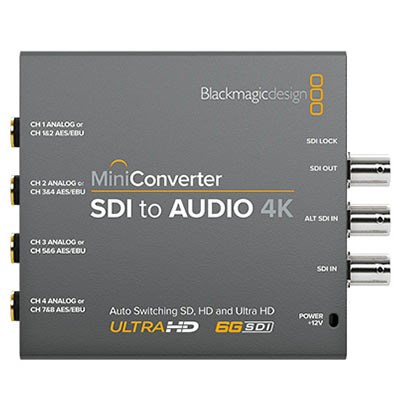

Blackmagic Mini Converter - SDI to Audio 4K
Spread cost over 12, 24 or 36 months
>
Pay in 3 interest free payments
>
Blackmagic's Mini Converter - Audio to SDI 4K allows the user to de-embed up to 4 channels of analogue audio or 8 channels of AES/EBU digital audio from video connections. With the Mini Converter you can access the audio from any SDI source for output to most audio mixers, decks and monitors.
Specifications:
- Connections:
- SDI Video Inputs: 1 x SD, HD or 6G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails
- SDI Video Outputs: 1 x SDI Video Loop Output
- SDI Redundant Inputs: Automatically switches over if main SDI input is lost
- Analog Audio Outputs: 4 channels of professional balanced analog audio with standard 1/4 inch jack connections
- Digital Audio Outputs: 8 channels of professional balanced digital with standard 1/4 inch jack connections
- Multi Rate Support: Auto detection SD, HD or 6G-SDI
- Updates and Configuration:
- Reclocking: Yes
- Standards:
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
- 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K Video Standards: 4K DCI 24p
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, SMPTE ST-2036, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601
- SDI Video Rates: SDI video connections are switchable between standard definition and high definition
- SDI Video Sampling: 4:2:2, 4:4:4
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
- SDI Colour Precision: 4:2:2, 4:4:4
- SDI Colour Space: YUV, RGB
- SDI Auto Switching: Automatically selects between SD, HD, 3G and 6G-SDI
- Software:
- Software Control: Mac OS X™ and Windows™ software upgrade via USB
- Internal Software Upgrade: Via included updater application
- Operating systems: MacOS 10.12 Sierra or later, Windows 8.1, Windows 10
- Power requirements:
- Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point
- Power Consumption: 5.52 Watts
- Operational Voltage Range: 12V-31V DC
- Dimensions: 115 x 92.27 x 23mm
- Weight: 216g
What's included:
- Mini Converter SDI to Audio 4K
- 12V universal power supply with intentional socket adapters
