Product Code: 1642273

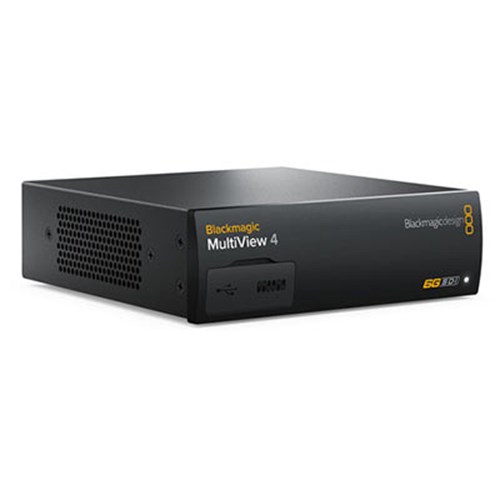

Blackmagic MultiView 4
Spread cost over 12, 24 or 36 months
>
Pay in 3 interest free payments
>
The Blackmagic MultiView 4 provides a multi-source monitoring solution for up to four video sources. Compact and easily portable, the MultiView 4 features four independent SD/HD/6G-SDI inputs for SD, HD, and 4K support. It provides a quad-split screen so that you can monitor any format and frame rate all at the same time.
Key Features: Blackmagic MultiView 4
- Four 10-bit 6G-SDI inputs
- Monitor SD, HD, or 4K video formats in any combination
- Advanced monitoring tools - custom labels, tally, audio meters and more
- Auto detection of SD, HD or 6G-SDI
- 1 RU machined aluminum chassis
- Ethernet remote control software
Specifications:
Connections:
- SDI Video Inputs: 4 x 10-bit SD-SDI, HD-SDI and 6G-SDI
- SDI Video Outputs: 4 loop, 1 HD/Ultra HD
- SDI Rates: 270Mb, 1.5G, 3G, 6G
- SDI Video Multi View Outputs: 1 x 10-bit HD-SDI and 10 bit 6G-SDI
- HDMI Video Multi View Outputs: 1 x HDMI type A connector. Output supports EDID of the monitor
- SDI Reclocking: On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video
- Reference Input: None
- Multi Rate Support: Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video
- Updates: USB 2.0 high speed (480Mb/s) interface or via Ethernet
- Configuration: RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting
Standards:
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94,720p60.1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p. 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K Video Standards: 4K DCI 24p
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M, SMPTE 425M-B,, ITU-R BT.656 and ITU-R BT.601
- Audio Meters: Each view, VU standard
- Source Routing: None
- SDI Video Sampling: 4:2:2 and 4:4:4
- SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit
- SDI Color Precision: 10-bit 4:2:2 and 4:4:4
- SDI Color Space: YUV or RGB for inputs, YUV for outputs
- SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard
- SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M
Control:
- Built in Control Panel: None. Supports Teranex Mini Smart Panel which adds menus and 2.2 inch color display External Control Panel: None
Display:
- Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings
Power Requirements:
- Power Supply: IEC power cable required. 90 - 240V AC input
- Power Fail Protection: MultiView 4 settings preserved and restored instantly at power on
- Power over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet)
- Power Consumption: 16 Watts
Product Specification
| Type | Multiview Box |
