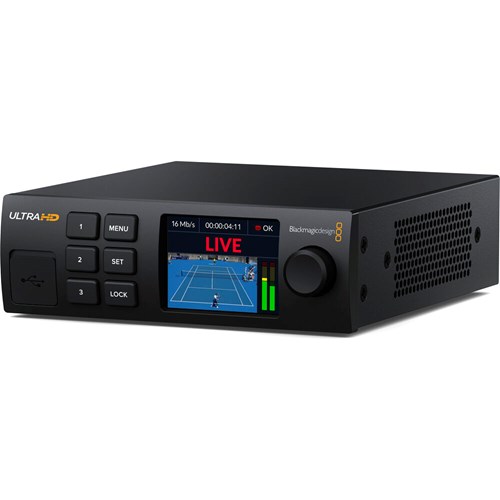

The Blackmagic Streaming Decoder 4K receives H.264 or H.265 streams from Blackmagic Streaming Encoders, ATEM switchers or Blackmagic cameras and converts them to SDI and HDMI video outputs. With return talkback, tally, and camera control support over SDI, it’s ideal for creating point-to-point broadcast links. Its compact design includes a control panel, 2.2" LCD and 12G-SDI/HDMI outputs up to 2160p60.
Key Features:
- Professional H.264/H.265 decoder for receiving live IP streams
- Converts video streams to 12G-SDI and HDMI outputs up to 2160p60
- Supports streams from Blackmagic Encoders, ATEMs and cameras
- Built-in 12G-SDI reference input and output with camera control return
- Delivers tally, talkback and camera control via SDI return path
- A USB-C webcam output up to 2160p60
- Built-in LCD screen with menu and status monitoring
- Front panel buttons and knob for local control
- Compatible with Blackmagic Cloud for stream routing
- SDI audio support for 16 embedded channels
- HDMI audio with up to 8 embedded channels
- REST API over Ethernet for external HTTP control
- Supports Rec.709 and Rec.2020 SDI input colour spaces
- Standardised support for all major HD, 2K and Ultra HD formats
- Compact 1/3 rack width with internal and 12V DC power
- Ethernet input supports 10/100/1000 BASE-T networking
- Compatible with Mac, Windows, Linux and Chrome OS
FAQs
What devices can send streams to the Blackmagic Streaming Decoder 4K?
It can receive H.264 or H.265 streams from a Blackmagic Streaming Encoder 4K, ATEM switcher with streaming support, or Blackmagic cameras such as the URSA Broadcast G2 and Studio Camera Pro.
What is the purpose of the reference SDI input?
The 12G-SDI reference input allows for return communication features. When used with a compatible setup, you can enable camera control, tally and talkback over the same IP stream used for video delivery.
Does the Blackmagic Streaming Decoder 4K work as a standalone receiver?
Yes, the Streaming Decoder is completely standalone. It receives a live stream via Ethernet and converts it directly into broadcast outputs without requiring any other Blackmagic devices.
How do I configure the Decoder 4K?
It can be configured via its built-in front panel controls, via the USB-C connection, or remotely over Ethernet using the Blackmagic Streaming Utility software. It also supports REST API for automated environments.
Product Specification
| Connections | 12G-SDI Output, HDMI Output, USB-C, 10G Ethernet, Balanced XLR Audio |
| Connector Type | SDI, HDMI, USB-C, Ethernet, XLR |
| Dimensions | 22.1 x 14.1 x 4.2 cm |
| Outputs | 1x HDMI, 1x SDI, 1x USB-C, 1x Ethernet |
