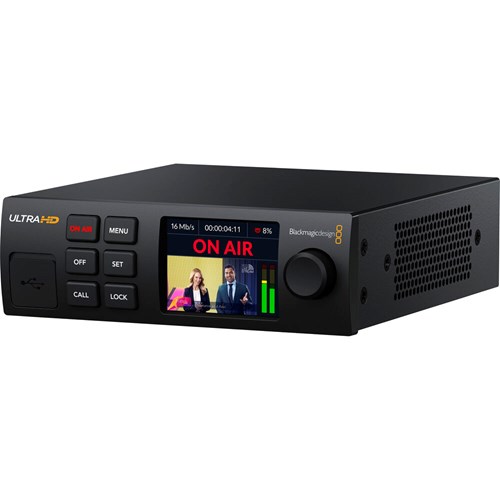

Blackmagic Streaming Encoder 4K

The Blackmagic Streaming Encoder 4K is a self-contained hardware encoder for live streaming HD and Ultra HD video directly to YouTube, Facebook, X and more. Featuring a 12G-SDI input with standards conversion, H.264 and H.265 streaming via RTMP or SRT, and webcam output via USB-C, it offers professional streaming without needing a computer. Monitor stream health with SDI/HDMI out and configure via USB or Ethernet.

Key Features:

• Professional 4K streaming encoder for live video broadcasting
• Hardware-based H.264 and H.265 encoding with RTMP and SRT support
• 12G-SDI input with standards conversion up to 2160p60
• Built-in SDI loop out and HDMI/SDI monitoring output
• Dual USB-C webcam outputs up to 2160p60 for video software
• Direct platform support for YouTube, Facebook, Twitch, X and more
• Blackmagic Streaming Utility for setup, updates and XML preset editing
• Supports closed captions in CEA‑608 and CEA‑708 formats
• Ethernet and 4G/5G phone tethering with auto-failover switching
• Graphical monitoring output with ON AIR, bitrate, cache, and audio
• Configurable trend graphs and 6-second input history
• LCD front panel display with buttons and rotary control
• Embedded SDI audio support for up to 16 input/output channels
• Supports Rec.709, Rec.2020 and Rec.601 SDI input colour spaces
• REST API over Ethernet for external HTTP control
• Compatible with Mac, Windows, Linux and Chrome OS
• Internal AC and 12V DC power inputs for redundancy
• 1/3 rack width form factor with Teranex Mini-style chassis

HD and Ultra HD Streaming

The Blackmagic Streaming Encoder 4K enables direct live streaming of broadcast-grade video in HD and Ultra HD formats up to 2160p60. Thanks to onboard H.264 and H.265 encoding, it delivers high efficiency and quality across SRT or RTMP protocols without relying on external computers or software. The 12G-SDI input supports all major video standards and includes Teranex standards conversion, allowing you to match incoming formats to the ideal streaming resolution automatically. You can loop through the SDI input to other devices or record simultaneously while streaming, making this ideal for studios, events, and mobile productions.

Network and Mobile Connectivity

This encoder is designed with flexible connectivity to suit any location. It includes a built-in Ethernet port for primary internet access and dual USB-C ports for phone tethering, allowing you to stream over 5G or 4G networks. The unit can prioritise Ethernet or mobile data and will automatically switch to the backup connection if the primary one fails, ensuring continuous streaming. This is especially valuable for live coverage from remote venues, outdoor events, or in field production where internet reliability varies.

Monitoring and Diagnostics

A dedicated HDMI and SDI monitoring output provides real-time diagnostic overlays that help visualise the stream’s technical performance. You can track data rate trends, cache fill, audio meters, and a six-second visual history of incoming video and audio. It also includes status readouts for SDI colour space, ancillary data, bit depth, timecode, and audio channel presence. This output can be used on professional SDI monitors or even HDMI televisions, giving both broadcast engineers and non-technical users confidence in the stream’s integrity.

What’s in the box?

• 1 x Blackmagic Streaming Encoder 4K
• 1 x Welcome Wallet with QR Code for Software Download

FAQs

Does the Blackmagic Streaming Encoder 4K work without a computer?

Yes, it is a self-contained encoder that requires no external computer or software. You connect a video source and network, choose your platform in the Blackmagic Streaming Utility, and begin streaming directly from the hardware unit.

Can I use this with video conferencing apps?

Yes, it includes dual USB-C webcam outputs that appear as standard webcams to software like Zoom, Teams or WebEx. It provides true broadcast-quality SDI video as a webcam feed in resolutions up to 2160p60.

What streaming formats and platforms are supported on the Blackmagic Streaming Encoder 4K?

It supports H.264 over RTMP and H.264/H.265 over SRT. Preconfigured for YouTube, Facebook, X, Twitch and more, you can also add custom XML profiles. Closed captioning and timecode metadata can be embedded in supported protocols.

Can I use this for mobile streaming?

Yes. With USB-C tethering for 4G and 5G phones, you can stream from anywhere with mobile data. It also offers automatic failover, switching to mobile if your Ethernet connection is interrupted.

How does the monitoring output on the Blackmagic Streaming Encoder 4K help with troubleshooting?

The SDI/HDMI monitor shows real-time graphics of bitrate, cache fill, audio meters and stream health. It also displays 6-second video and audio histories, plus technical data for SDI input, timecode, audio bit depth and ancillary metadata.
