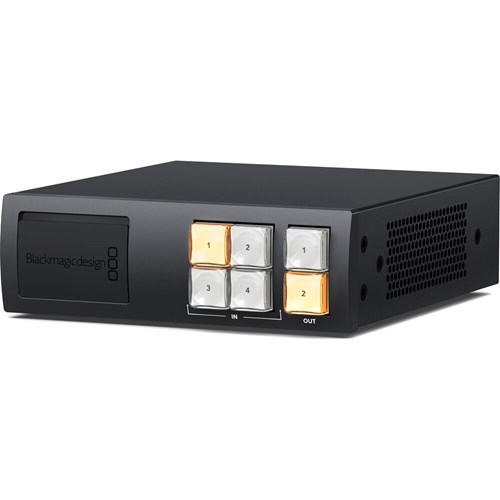

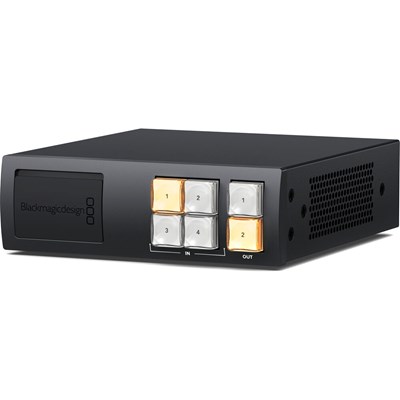

Blackmagic Videohub Mini 4x2 12G

Compact and rack-friendly, the Blackmagic Videohub Mini 4x2 12G is a versatile SDI router with four 12G-SDI inputs, two outputs, and four loop outputs. It supports SD through to DCI 4K signals up to 2160p60. Features include front-panel controls, a USB webcam output, and SDI clean switching. With AC and DC power options, it’s ideal for flexible, high-quality video routing in production settings.

Key Features:

• 4x 12G-SDI Inputs and 2x 12G-SDI Outputs
• 4x 12G-SDI Loop Outputs for Signal Pass-Through
• Supports SD, HD, UHD 4K and DCI 4K up to 2160p60
• Front 12G-SDI Input Overrides Rear Ports
• USB-C Output Acts as 1080p Webcam Source
• Push-Button, Knob, and Ethernet Router Control
• Clean Switch Function on Each Output
• Integrated SDI Re-Clocking for Signal Stability
• Compatible with Videohub Software and Panels
• Dual Power Input: 12 VDC and 100–240 VAC

Streamlined SDI Routing

The Videohub Mini 4x2 12G gives you quick-access, professional routing in a compact design. Use it to add inputs to switchers, encoders or monitors without repatching cables mid-production. The four rear inputs with corresponding loop outs allow seamless distribution, while the front SDI port lets you patch in emergency sources instantly—ideal for live and fast-paced environments.

Front Panel Control and Webcam Output

Designed for fast, cut-style switching, the front panel features separate buttons for source and destination routing. A 12G-SDI input and USB-C output on the front make it easy to patch gear without rack access. The USB-C output functions as a 1080p webcam source, allowing SDI video to stream into Zoom, Teams, OBS or broadcast software with ease.

12G-SDI and Clean Switching

With 12G-SDI multirate inputs, the router supports simultaneous SD, HD, and 4K formats and automatically adapts to the connected signal. Re-clocking on every input ensures long cable runs remain stable. Each output includes a clean switch, essential for smooth transitions to monitors or live streams, while bypass options maintain direct feeds for recorders.

What’s in the box?

• 1 x Blackmagic Videohub Mini 4x2 12G

FAQs

What types of video formats does the Blackmagic Videohub Mini 4x2 12G support?

It supports a wide range of video standards including SD, HD, UHD 4K, and DCI 4K up to 2160p60. All 12G-SDI ports are multirate, allowing mixed formats to be routed simultaneously.

Can the USB-C output be used for live streaming?

Yes, the USB-C port acts as a webcam output. It converts any incoming SDI signal into a full HD video stream, compatible with Zoom, OBS, Teams, and other software.

What happens when the front SDI input is used?

The front panel 12G-SDI input overrides the highest numbered rear input, making it ideal for on-the-fly source changes or emergency patch-ins without rerouting cables behind your rack.

Does the router require mains power?

It features both AC (IEC) and DC (12 V barrel) power inputs. This redundancy ensures uninterrupted operation in both fixed and mobile production environments.
