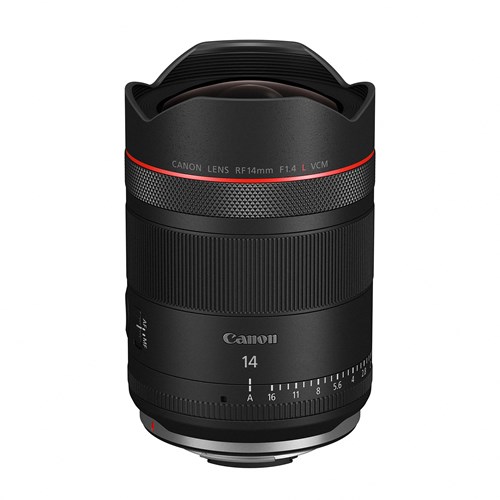

Canon RF 14mm f1.4L VCM Lens

The Canon RF 14mm f1.4L VCM Lens is an ultra-wide hybrid prime lens in the RF L-series, combining a rectilinear optical design with an f1.4 maximum aperture and a near-silent VCM autofocus system. Its optical construction uses 18 elements in 13 groups, including fluorite, BR, UD, and folded aspherical elements to control chromatic aberration and coma. A dedicated iris ring and an integrated lens hood support exposure and framing at wide angles, with a minimum focus distance of just 0.24m.

Canon RF 14mm f1.4L VCM Lens Key Features:

• RF-Mount L-series ultra-wide prime lens featuring Canon’s complex optics
• 14mm rectilinear focal length for straight-line rendering in wide compositions
• Fast f1.4 maximum aperture supports low-light exposure control
• 11-blade aperture for smooth out-of-focus transitions and soft bokeh
• Near-silent VCM autofocus system controls a precise focus drive
• Optical design incorporates fluorite, BR, UD, and aspherical elements
• Complex 18-element, 13-group optical design supports aberration control
• 114° diagonal angle of view with 104° horizontal and 81° vertical coverage
• Consistent point-light definition across the frame at wide apertures
• Edge-to-edge sharpness prioritised across the image circle
• Dual ASC, SWC, and Super Spectra coatings reduce flare and ghosting
• Consistent point-light definition across the frame for astro and night-sky shooting
• Minimum focusing distance of 0.24 m for close wide-angle framing
• Built-in lens hood integrated into the barrel design
• Rear-mounted gelatin filter support allows filtration without a front filter
• Weather-sealed L-series construction, weighing just 578g
• Compact length balances well on Canon RF camera bodies

What’s new?

At 14mm, the Canon RF 14mm f1.4L VCM Lens applies an optical approach more commonly used at longer focal lengths. Until now, other f1.4 L-series prime lenses have been available exclusively at longer focal lengths, ranging from 20mm to 50mm to 85mm, where maximum aperture and subject isolation have been prioritised over field of view. This new optical design brings the defining characteristics of the L-series family to a wider perspective, combining extreme aperture speed with a more dramatic angle of view.

The lens’s fluorite element controls chromatic aberration toward the edges of the frame, supported by BR, UD, and folded aspherical elements arranged across 13 groups. This optical structure maintains correction at f1.4, keeping point-light rendering and edge performance consistent without relying on post-production.

The Canon RF 14mm f1.4L VCM Lens also pairs a dedicated iris ring with a fixed hood, prioritising front-element performance and direct exposure control. The VCM autofocus and multi-layer coatings complete a design driven by optical requirements rather than external add-ons.

Optical Architecture and Aberration Control

The Canon RF 14mm f1.4L VCM Lens centres around an 18-element, 13-group optical formula designed to maintain rectilinear geometry. Fluorite suppresses chromatic aberration at the periphery, an approach rarely applied to ultra-wide lenses due to cost and complexity. However, in this lens, BR and UD elements address axial and lateral colour fringing, while folded aspherical elements contribute to distortion correction. The combined behaviour of these groups produces consistent sharpness and controlled point-light rendering across the frame without relying on post-production correction.

Aperture System and Exposure Control

An 11-blade diaphragm shapes the aperture, affecting exposure and out-of-focus rendering. Aperture can also be adjusted directly on the lens via a dedicated iris ring, eliminating the need to navigate camera menus. On EOS R system cameras released before May 2024, the iris ring is inactive for still-image aperture control. In this instance, the ring provides a more direct way to manage exposure and depth of field, particularly when working at wide apertures or in low light.

Autofocus and Close-Range Composition

The optical group of focusing elements is driven by a VCM autofocus system, providing controlled and precise movement across its range. A 0.24m close-focusing distance makes it possible to work very close to the subject while keeping the wider scene in frame, relying on placement rather than distortion to shape perspective.

Coatings and Construction

The lens features SWC and ASC coatings to reduce internal reflections when bright light sources are present in or near the frame. The front element’s fluorine coating helps to resist smudges and moisture during regular use. A built-in hood forms part of the lens barrel, shaped around the requirements of the front element and eliminating the need for add-on accessories. L-series weather sealing supports outdoor use, and the 578 g weight keeps the lens balanced on RF-mount bodies when shooting handheld for longer periods.

Use and Application

The rectilinear 14mm field of view maintains straight-line accuracy, making it suitable for architectural work and wide geometric scenes. In landscape use, the 114° field of view allows foreground-to-background relationships to be controlled through camera position. Coma suppression and consistent edge performance support astro and night photography, where point-light accuracy across the frame is critical. Close focusing and direct aperture control further allow environmental framing to be shaped by subject placement and exposure choice rather than optical distortion.

What’s in the box?

• 1 x Canon RF 14mm F1.4L VCM Lens
• 1 x Lens Cap 14B
• 1 x Lens Dust Cap RF
• 1 x Lens Case LP1219
• 1 x User Manual

Canon RF 14mm f1.4L VCM Lens Product Video:

FAQs:

Is the Canon RF 14mm f1.4L VCM Lens a rectilinear or fisheye?

The Canon RF 14mm f1.4L VCM Lens uses a rectilinear optical design. Straight lines are maintained without fisheye distortion, making it suitable for architectural and wide-angle compositions that require geometric accuracy.

What does the dedicated iris ring do?

The iris ring provides direct physical control over the lens barrel aperture. This feature allows for adjustments to be made without accessing camera menus, supporting deliberate exposure control.

How does the Canon RF 14mm f1.4L VCM Lens perform for astro and night photography?

The optical design prioritises coma suppression and chromatic aberration control across the frame. Combined with the f1.4 aperture, this supports clean point-light rendering for night sky and low-light work.

Does the Canon RF 14mm f1.4L VCM Lens accept filters on the front of the lens?

The Canon RF 14mm f1.4L VCM Lens includes a built-in hood and does not support front-mounted filters due to the lens's optical design. Instead, a rear-mounted gelatine filter slot allows thin cut-to-size filters to be placed behind the optics. This provides basic filtration without introducing vignetting or affecting the front-element performance of the ultra-wide design.

How does the lens behave on APS-C cameras?

On APS-C cameras, the lens can provide diagonal fisheye coverage of approximately 8.7mm when the focal length aligns with the ‘C’ index mark. This enables fisheye rendering optimised for APS-C sensors, with projection behaviour that differs from full-frame operation.

Is the Canon RF 14mm f1.4L VCM Lens compatible with extenders?

The Canon RF 14mm f1.4L VCM Lens is not compatible with RF extenders. Its optical design and ultra-wide rectilinear construction do not support extender use.

Canon RF 14mm f1.4L VCM Lens - Sample Images
