Cineo Wave HS2 Bi-colour Kit
Product Code: 1611578

Cineo Wave HS2 Bi-colour Kit

Special Order
This product is either directly despatched from our supplier or produced to order. Delivery usually takes at least 4 weeks. Order today and no payment will be taken until the item is in stock and ready to be despatched. Full details »

Thinking of upgrading? Trade in today

£4,450.00

1x Cineo Wave HS2 Bi-colour Kit Sorry, there are no more available.

Please Login or Register to add to your Wish List.

Finance options available

Spread the cost over 12, 24 or 36 months
Back to top

The Cineo Wave HS2 Bi-colour Kit delivers the unexcelled brightness, extremely accurate colour quality, power efficiency, flexibility and the control that hundreds of cinematographers, gaffers, and lighting designers rely on daily. Features include integration of LumenRadio receivers for wireless DMX support and RDM programing in addition to traditional 5-pin XLR control, plus a digital display, rotary control local dimming, 3 channel DMX fine dimming, 1 channel DMX smooth dimming, and DMX strobe capabilities.

HS2 Wave Lamphead Features:

  • Utilizes Remote Phosphor Technology (RPT) for accurate, consistent output
  • Full compatible with all legacy HS power supplies, accessories, phosphor panels, and cabling
  • Local and DMX dimming 0-100% with no colour shift
  • 80/20 mounting slots on both sides and back
  • Two mixing chambers provides custom CCT mixing
  • Hinged top access panel for easy operation
  • Output is identical to legacy HS series fixtures

HS2 Wave Power Supply Features:
  • LumenRadio™ wireless DMX support
  • Improved form factor
  • Smaller, lighter weight than previous power supplies
  • Improved digital display and control
  • Remote DMX address programming via RDM
  • Operates up to 300' from fixture
  • Optionally attaches directly to the HS2 head
  • Smooth Dimming (0-100%) and strobe capability
  • Fine dimming mode available on DMX
  • Flicker-free, completely silent operation

Speci fications:

  • Input voltage: 100-240 VAC 50/60 Hz.
  • Power consumption: 500 watts, max
  • Lamp head dimensions: 12" H x 21" W x 3.8" D (290 mm x 532 mm x 96.5 mm)
  • Lamp head weight: 14 lbs (6.4 kg)
  • HS2 Wave PSU dimensions: 10.5" H x 19.25" W x3.75" D / (267 mm x 489 mm x 95 mm)
  • HS2 Wave PSU Weight: 11 lbs (5 kg)
  • 35,000 hr. L70 rated
  • Environmental temperature range: -20º - + 50º C
  • Max. temperature rise: +45º C
  • 2-year parts and labor warranty
  • ETL and cETL Listed, CE and RoHS Compliant
  • Zero UV light emitted
  • Made in USA

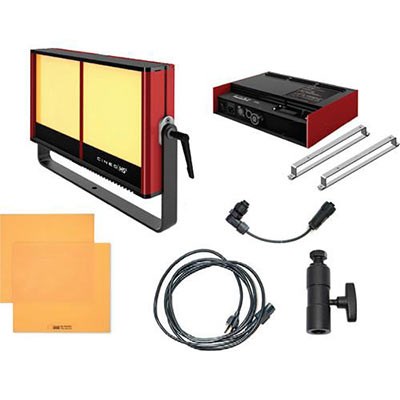

Cineo Wave HS2 Bi-color integrated Kit (901.0022) Contents:

  • HS2 lamphead
  • RDM450 power supply
  • RDM450 Mounting
  • Cable
  • RDM450 Mounting Rails
  • 3200K and 5600K panel sets
  • AC power cable
  • TVMP adapter

The HS2 Wave has a notably improved ergonomic design for more elegant handling on set and on location. Now featuring an integrated design, the lamphead and power supply are shipped preconfi gured for simple one piece operation yet maintain the ability to be separated up to 300 feet via optional lamphead cables. The lamphead continues to utilize 80/20 mounting slots for attaching various yoke options and accessories. The simple to use top hinge access on HS2 Wave makes changing Remote Phosphor panels easier than ever before while also allowing direct access to improved safety switches and internal controls. Maintaining product line conformity, HS2 Wave components are 100% cross-compatible with all legacy HS fi xtures, power supplies, accessories, phosphor panels, and cabling.

Key electronic enhancements of the HS2 Wave include integration of LumenRadio™ receivers for wireless DMX support and RDM programing in addition to traditional 5-pin XLR control. A 5v USB port is now available on the back of the fi xture to power third party wireless receivers as well as to accommodate speedy fi rmware updates. Other notable features include an enhanced digital display, rotary control local dimming, 3 channel DMX fi ne dimming, 1 channel DMX smooth dimming, and DMX strobe capabilities. Additionally, two distinct mixing chambers allow for custom CCT mixing via DMX while in 3 channel operation.

Building upon Cineo's years of experience in Remote Phosphor Technology, HS2 Wave delivers the unexcelled brightness, extremely accurate color quality, power effi ciency, fl exibility and the control that hundreds of cinematographers, gaff ers, and lighting designers rely on daily.

  Back to top

Product Specification

AC Input Power 100-240 VAC 50/60 Hz
Colour Temperature [k] 3200-5600K Bi-Colour
Cooling System Silent Passive Cooling
Dimming 0 - 100%
DMX Connection LumenRadio wireless DMX support
Power Source 100-240 VAC 50/60 Hz
Remote Control Type LumenRadio wireless DMX support
Size [cm] H29 x W53.2 x D9.65 cm
Weight [g] 6400.00
