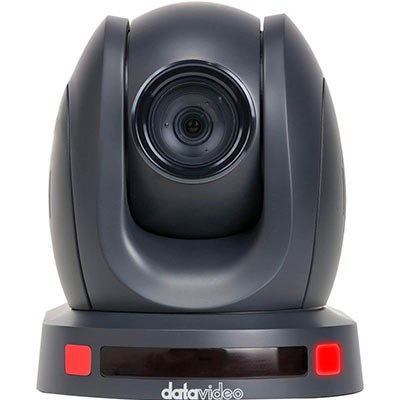

Datavideo 3 x PTC-140T HDBaseT PTZ Camera and custom foam hardcase with HS-1600T 4-Channel HD/SD HDB

The Datavideo 3 x PTC-140T HDBaseT PTZ Camera and custom foam hardcase with HS-1600T 4-Channel HD/SD HDB is a low-cost high-definition pan-tilt-zoom camera with 20x optical zoom and 10x digital zoom. The singular CAT6 network cable is needed for all power, signals and control data. The cable can reach a distance up to 100m. The cameras feature an on-board streaming encoder that can encode up to 2 simultaneous streams to any cloud service. This includes Datavideo's DVS-200. Ideal for television productions and can be used in conjunction with professional cameras when working in a studio setting, on sporting events or Reality TV. The included HS-1600T supports full HD 1080p recording and is capable of controlling the camera's pan, tilt, and zoom with a convenient joystick. It is perfect for streaming to Facebook Live, YouTube, Twitch and much more thanks to the built-in H.264 streaming recorder.

Datavideo 3 x PTC-140T HDBaseT PTZ Camera with HS-1600T 4-Channel HD/SD HDB Key Features:

• The kit includes 3x PTC-140T HDBaseT PTZ Camera
• Includes the HS-1600T HDBaseT 4 input Portable Video Studio
• Comes with a custom foam heavy-duty hardcase with rubber seals to guard against dust and water
• Tally LED shows which camera is active
• Offers a 20x optical zoom and a 10x digital zoom
• Features a 1/2.8 inch high quality HD CMOS sensor and 255 pre-sets
• Capable of Full HD with 60fps recording
• Users benefit from advanced noise reduction making these cameras perfect for studio work
• Facilitates H.264/H.265 video compression for streaming
• Approx. 2.07-megapixel effective pixels
• Can be mounted on a tripod with 1/4-20 UNC screw hole
• Comes with audio input interface-Line In (IP Stream Output)
• Controllable features include IR, Electronic Shutter, Iris, White Balance, AGC/Gain Control/ Focus/ Pan Tilt and Speed, and more
• Compatible with HS-1500T / HS-1600T / RMC-180 / RMC-300 Camera Control Units
• Includes RTSP and RTMP multiple network protocol that is easy to link to streaming media servers
• Backlight image compensation

You can view the RMC-180 Compatibility Chart here.

Expanded Datavideo 3 x PTC-140T HDBaseT PTZ Camera with HS-1600T 4-Channel HD/SD HDB Key Features:

HS-1600T Portable Video Studio

The included HS-1600T is an HDBaseT Portable Video Studio with PTZ Control and built-in encoding thanks to which it is ideal for live streaming to Twitch, Facebook, YouTube and much more. It fully supports Full HD 1080P recording and features built-in HDBaseT technology that allows for the connection of up to three PTZ cameras via one CAT6 cable or higher (maximum distance 100 meters). Other features include PoE, flexible effects such as fades, a tally output, and a built-in SD card slot. Users can easily control the pan, zoom, and tilt of the PTZ camera via a joystick. Additionally, functions such as focus, gain, and iris can be controlled on either PTC-150T or PTC-140T. Video inputs include 3x RJ-45, and 1x HDMI; whereas, the video output is 3x HDMI. Available audio inputs are XLR Analogue x 2 + RCA Analogue (L/R) x 2. Finally, the HS-1600T is capable of supporting different bitrate for recording and streaming and offers broadcast-quality HD / SD H.264 network streaming.

What's in the box?

• 3 x PTC-140T
• 3 x Ceiling Mount Bracket-A
• 3 x Ceiling Mount Bracket -B
• 18 x Ceiling Mount Bracket screw M3*4mm
• 3 x IR Remote Controller
• 3 x DC 12V adaptor
• 3 x UK Figure 8 Power Cable
• 1 x Heavy duty case with custom foam
• 1 x HS-1600T
• 1 x AD Switch DC 48V with AC Cord
• 3 x Ethernet Cable
