Product Code: 1720958

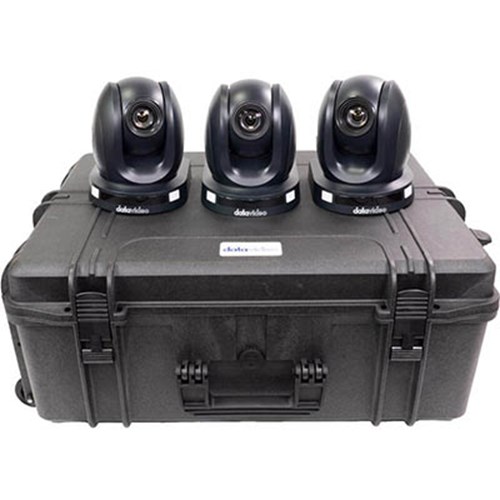

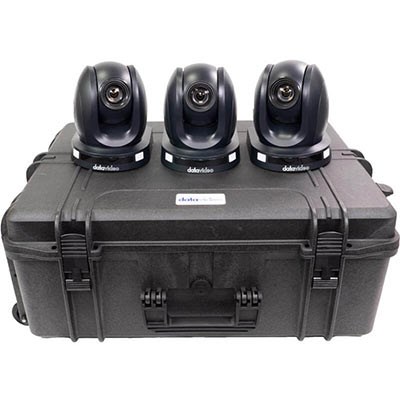

Datavideo 3 x PTC-140TH HDBaseT PTZ Camera with HBT-11 and custom foam hardcase
The Datavideo 3 x PTC-140TH HDBaseT PTZ Camera with HBT-11 and custom foam hardcase is a low-cost high-definition pan-tilt-zoom camera with 20x optical zoom and 10x digital zoom. The singular CAT6 network cable is needed for all power, signals and control data. The cable can reach a distance up to 100m. The cameras feature an on-board streaming encoder that can encode up to 2 simultaneous streams to any cloud service. This includes Datavideo's DVS-200. Ideal for television productions and can be used in conjunction with professional cameras when working in a studio setting, on sporting events or Reality TV.
Datavideo 3 x PTC-140TH HDBaseT PTZ Camera with HBT-11 Key Features:
- The kit comes with 3x PTC-140TH HDBaseT PTZ Camera
- Comes with a custom foam heavy-duty hardcase with rubber seals to guard against dust and water
- Includes HBT--11 HDBaseT receiver that allows for power, control and view video through 1x CAT5 or CAT6 cable up to 100Metres away
- Offers a 20x optical zoom and a 10x digital zoom
- Features a 1/2.8 inch CMOS sensor capable of Full HD with 60fps capture and 255 pre-sets
- Users benefit from advanced noise reduction making these cameras perfect for studio work
- Facilitates H.264/H.265 video compression for streaming
- Approx. 2.07-megapixel effective pixels
- Can be mounted on a tripod with 1/4-20 UNC screw hole
- Compatible with HS-1500T / HS-1600T / RMC-300 Camera Control Units
- Controllable features include IR, Electronic Shutter, Iris, White Balance, AGC/Gain Control/ Focus/ Pan Tilt and Speed, and more
- Backlight image compensation
- Includes RTSP and RTMP multiple network protocol that is easy to link to streaming media servers
- Comes with audio input interface-Line In (IP Stream Output)
- Tally LED shows which camera is active
What's in the box?
- 3 x PTC-140TH
- 3 x Ceiling Mount Bracket-A
- 3 x Ceiling Mount Bracket -B
- 18 x Ceiling Mount Bracket screw M3*4mm
- 3 x IR Remote Controller
- 3 x DC 12V adaptor
- 3 x UK Figure 8 Power Cable
- 3 x HBT-11 Receiver Box
- 3 x DC 48V Power Adaptor
- 3 x 5-pin RS-422/232 to Ethernet Cable (For Receiver Box)
- 1 x Heavy duty case with custom foam
Datavideo 3 x PTC-140TH HDBaseT PTZ Camera with HBT-11 Product Videos:
Four Ways to Control PTZ Cameras | Tech Tip Tuesdays
What is HDBaseT? | Tech Tip Tuesdays
Product Specification
| Field Of View | Approx. 54.7° (WIDE END) / 3.3° (TELE END) |
| Focal Length | f=5.2 (wide) ~98 (tele) mm | F1.6 to F3.5 |
| Outputs | HDBaseT (PoE), RJ-45 |
| Panning|Tilting Range | Pan: 340° , Tilt: +90° to -30° |
| Panning|Tilting Speed | 0.1~60°/sec | Tilt: 0.1~30°/sec |
| Protocol | VISCA, DVIP |
| Recording Formats | 1080p 60/59.94/50/30/29.97/25/1080i 60/59.94/50/720p 60/50/30/25/59.94/29.97 |
| Remote Control Interface and Transmit Distance | RS-232, Lan (RJ-45) |
| Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Zoom Ratio | 20x Optical Zoom, 10x Digital Zoom |
