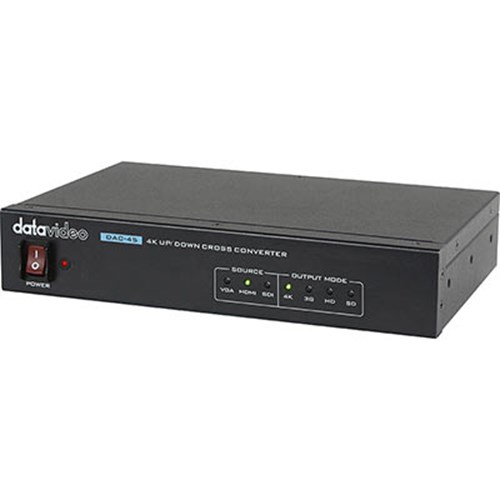

Datavideo DAC-45 4K UP/Down Cross Converter

The DAC-45 from Datavideo is an up/down cross converter designed to convert video signals from VGA, HDMI and SDI inputs with audio input to 4K HDMI or 3G-SDI output. It allows instant and automatic switch between 4K, HD and SD video formats when the video input changes.

Key Features: Datavideo DAC-45 4K UP/Down Cross Converter

• HDMI 2.0 input/output with 4:2:2 processing
• Up/Down/Cross convert between SD, HD, 3G and 4K formats
• SDI(3G)/HDMI(4K)/VGA Input
• SDI(3G)/HDMI(4K) Output
• Support 3G-SDI Level A/B
• Reference input (Black Burst and Tri-Level Sync)
• Built-in Super Resolution Engine for 4K Up Conversion
• Built-in Resolution & Frame rate Up/Down Conversion Engine
• Built-in De-interlacer and Interlacer (I <-> P conversion)

Specifications:

• Conversion: VGA/HDMI/SDI to 4K HDMI/3G-SDI Multi-format Up/Down/Cross
• Video Inputs: 1x VGA, 1x HDMI, 1x HD/SD-SDI, 1x Reference Input
• Loop Through: No
• Video Outputs: 1x SDI, 1x HDMI
• Audio Inputs: 2x RCA(Unbalanced Audio L/R) / 2x SDI/HDMI Audio embedded
• Audio Outputs: SDI embedded audio up to 8CH, 48KHz, PCM audio / HDMI embedded audio up to 8CH, 48KHz, PCM audio
• Supported Video Input Formats: 800x600 (60Hz),1024x768(60Hz), 1280x1024(60Hz),1366x768(60Hz), 1400x1050(60Hz), 1600x1200(60Hz), 1280x720(60Hz), 1920x1080(60Hz), 480i, 480p, 525i, 576i, 576p, 625i, 720p (50/59.94/60Hz),1080i (50/59.94/60Hz), 1080psf(23.98/24/25/29.97/30Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 2160p(23.98/24/25/29.97/30/50/59.94/60Hz)
• Output Resolutions: 480i, 480p, 525i, 576i, 576p, 625i, 720p (50/59.94/60Hz), 1080i (50/59.94/60Hz), 1080psf(23.98/24/25/29.97/30Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 2160p(23.98/24/25/29.97/30/50/59.94/60Hz)
• Equalizer: Yes
• Reclock: Yes
• SDI Cable Drive: Yes
• Power DC: 12V, 9.4 watts
