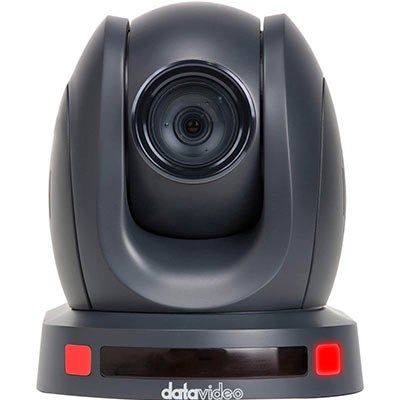

Datavideo PTC-140 HDBaseT PTZ Camera without HBT-11 for use with HS1500T/HS1600T
The Datavideo PTC-140 HDBaseT PTZ Camera comes without HBT-11 and has been designed for use with HS1500T/HS1600T. It is a low-cost HDBaseT, high-definition pan-tilt-zoom camera with 20x optical zoom and 10x digital zoom. It also includes PoE and built-in streaming encoder. In addition to this, all power, signal, and control data travel through a single CAT6 network cable that can reach a distance of up to 100m. The on-board streaming encoder is capable of encoding u More
Finance options available
Learn moreThe Datavideo PTC-140 HDBaseT PTZ Camera comes without HBT-11 and has been designed for use with HS1500T/HS1600T. It is a low-cost HDBaseT, high-definition pan-tilt-zoom camera with 20x optical zoom and 10x digital zoom. It also includes PoE and built-in streaming encoder. In addition to this, all power, signal, and control data travel through a single CAT6 network cable that can reach a distance of up to 100m. The on-board streaming encoder is capable of encoding up to 2 simultaneous streams to any cloud service. This includes Datavideo's very own DVS-200. Ideal for television productions and can be used in conjunction with professional cameras when working in a studio setting, on sporting events or Reality TV.
Datavideo PTC-140 HDBaseT PTZ Camera without HBT-11 Key Features:
- Features a 1/2.8 inch CMOS image sensor with a resolution up to 1920 x 1080 and frame rate up to 60fps
- Approx. 2.07-megapixel effective pixels
- Can be mounted on a tripod with 1/4-20 UNC screw hole
- Controllable features include IR, Electronic Shutter, Iris, White Balance, AGC/Gain Control/ Focus/ Pan Tilt and Speed, and more
- Facilitates digital noise reduction
- Comes with audio input interface-Line In (IP Stream Output)
- Supported video compression include H.264 and H.265
- Includes RTSP and RTMP multiple network protocol that is easy to link to streaming media servers
- Offers an 20x optical zoom and 10x digital zoom
- Compatible with HS-1500T / HS-1600T / RMC-180 / RMC-300 Camera Control Units
- Compatible with RMC-300C and RMC-180 PTZ controllers
You can view the RMC-180 Compatibility Chart here.
What's in the box?
- 1 x PTC-140T
- 1 x Ceiling Mount Bracket-A
- 1 x Ceiling Mount Bracket -B
- 6 x Ceiling Mount Bracket screw M3*4mm
- 1 x IR Remote Controller
- 1 x DC 12V adaptor
- 1 x UK Figure 8 Power Cable
Datavideo PTC-140 HDBaseT PTZ Camera without HBT-11 Product Videos:
Four Ways to Control PTZ Cameras | Tech Tip Tuesdays
What is HDBaseT? | Tech Tip Tuesdays
Product Specification
| Field Of View | Approx. 54.7° (WIDE END) / 3.3° (TELE END) |
| Focal Length | f=5.2 (wide) ~98 (tele) mm | F1.6 to F3.5 |
| Outputs | HDBaseT (PoE), RJ-45 |
| Panning|Tilting Range | Pan: 340° , Tilt: +90° to -30° |
| Panning|Tilting Speed | 0.1~60°/sec | Tilt: 0.1~30°/sec |
| Protocol | VISCA, DVIP |
| Recording Formats | 1080p 60/59.94/50/30/29.97/25/1080i 60/59.94/50/720p 60/50/30/25/59.94/29.97 |
| Remote Control Interface and Transmit Distance | RS-232, Lan (RJ-45) |
| Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Type | PTZ Camera |
| Zoom Ratio | 20x Optical Zoom, 10x Digital Zoom |
