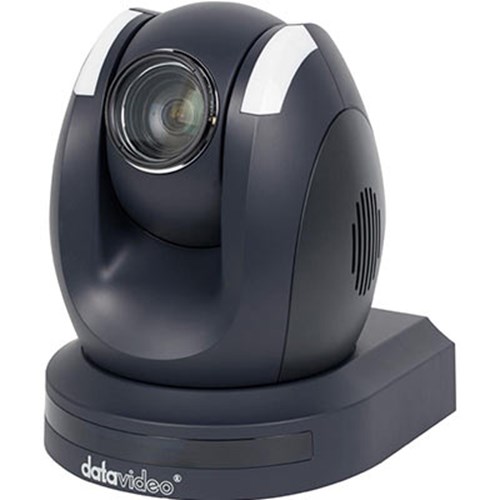

Datavideo PTC-150 PTZ Camera (Black)
The Datavideo PTC-150 PTZ Camera (Black) is a low-cost high-definition pan-tilt-zoom camera with 30x optical zoom, 4:2:2 output, and HDMI, SDI and composite outputs. This 1920 x 1080 resolution camera offers a built-in IR cut filter for low light shooting and wide dynamic range with backlight compensation. The operator is able to electronically orientate the image to adjust for the position in which the PTZ has been located via image mirror and image rotation functions. The camera can be mounted onto celling, wall, table-top, or flooring and includes a handy IR remote control. Ideal for television productions and can be used in conjunction with professional cameras when working in a studio setting, on sporting events or Reality TV.
Datavideo PTC-150 PTZ Camera (Black) Key Features:
- Users benefit from 50 programmable position pre-sets for pan, tilt and zoom positions
- Ideal for multi-cam studio work as the built-in tally light indicates when the camera is active
- Features a HD Resolution: 1/2.8" High Definition 2.14-Megapixel progressive MOS sensor
- Offers a 30x optical zoom (f=4.3 mm to 94.6 mm)
- Incorporates Dehazing Technology that clears up foggy or hazy images maintaining sharpness
- Digital Noise Reduction Function reduces noise and produces clearer image in low light
- Position coordinates are reported in real time per frame
- For improved operability there is a Tally LED Design (IR / RF Controller/ RS-422/ DVIP Operation)
- Facilitates HDMI, HD/SD-SDI, CVBS video outputs
- Supports High-Definition formats such as 1080p/59.94 (4:2:2), 1080p/50 (4:2:2), 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 720p/59.94, 720p/50
- Standard definition 480i, 576i formats are also supported
- Compatible with RMC-180 / RMC-300 Camera Control Units
- Compatible with SONY VISCA Protocol Keyboard and DVIP Control Protocol (F/W update to activate)
You can view the RMC-180 Compatibility Chart here.
What's in the box?
- 1 x PTC-150
- 1 x IR Remote Controller
- 1 x Ceiling Mount Bracket-A
- 1 x Ceiling Mount Bracket -B
- 6 x Ceiling Mount Bracket screw M3*4mm
- 1 x DC 12V Power Adaptor
- 1 x Power Cord
- 1 x A Tightrope
Datavideo PTC-150 PTZ Camera (Black) Product Videos:
Datavideo PTC-150 HD/SD-SDI PTZ Camera
How to Set Up the PTC-150 PTZ Camera and RMC-180 Controller
Four Ways to Control PTZ Cameras | Tech Tip Tuesdays
How to do Wireless Camera Control | Tech Tip Tuesdays
Product Specification
| Dimensions | (W x H x D): 173 x 189.1 x 218mm |
| Outputs | 3G-SDI, HDMI & CVBS |
| Protocol | VISCA, DVIP |
| Recording Formats | 1080p 59.94/50/29.97/25 Hz/1080i 59.94/50 Hz/720p 59.94/50 Hz/480i, 576i (on CVBS) |
| Remote Control Interface and Transmit Distance | RS-422, DVIP |
| Sensor | 1/2.8” type progressive scan CMOS sensor |
| Type | PTZ Camera |
| Zoom Ratio | Optical 30x Zoom |
