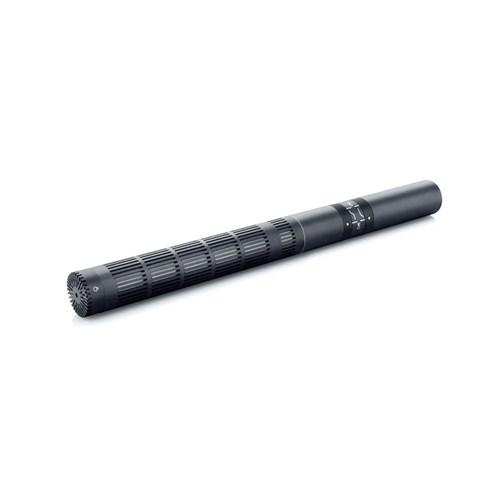

The DPA 4017B is a compact supercardioid shotgun condenser microphone with a 19mm cartridge and integrated active cable, designed for highly directional pickup in a remarkably small, lightweight body. At just 210mm and 68g, it delivers clean, accurate dialogue with controlled off-axis response, strong RF immunity and stable performance in humidity, heat or cold, making it a dependable choice for boom work in demanding conditions.
DPA 4017B Shotgun Mic Key Features:
- Highly directional supercardioid shotgun microphone for focused distant pickup
- Compact 210mm long body weighing just 68g
- Uniform off-axis response reduces coloured side reflections
- Handles peak SPLs up to 152dB without clipping
- Excellent RF immunity for use around transmitters
- Withstands high humidity and extreme temperatures
- Integrated active cable for streamlined boom setups
- Onboard high frequency boost and bass roll-off filters
- Permanent 50Hz high-pass filter controls low-frequency rumble
- High-voltage pre-polarised back plate ensures wide dynamic range
What's in the box?
- 1 x DPA 4017B Shotgun Mic
FAQs:
How does the 4017B control off-axis sound compared to typical shotgun mics?
The 4017B uses a supercardioid design combined with an interference tube that keeps the off-axis response far more uniform. Side and rear sound is reduced, but what remains sounds natural rather than hollow. The 4017B ensures dialogue sits more naturally in real locations, especially indoors.
Is the 4017B suitable for humid or extreme climates?
Yes. The microphone is designed to remain stable in very humid environments and to continue operating reliably in both hot and cold conditions. It performs consistently in challenging conditions, including tropical climates, desert heat, and freezing temperatures. That stability is particularly useful for documentary and location crews who cannot control the environment.
What filters are built into the microphone?
The 4017B features two switchable filters controlled by rotating rings on the body. A first-order bass roll-off below 120Hz reduces handling and wind noise, while a high-frequency boost adds a 4dB shelf at 8kHz to compensate for high-end loss when using wind protection. In addition, a permanent third-order high-pass filter at 50Hz removes low-frequency rumble. Together, these controls allow quick adjustment without relying entirely on the mixer.
How well does it handle loud sound sources?
The 19mm condenser cartridge can handle peak SPLs up to 152dB before clipping. That gives it enough headroom for raised voices, live performance, or sudden transient sounds without distortion. At the same time, the high-voltage pre-polarised back plate provides strong output with low noise. The result is a wide dynamic range that cleanly captures both quiet dialogue and louder moments.
Does the 4017B match other DPA microphones in tone?
Yes. DPA maintains a consistent sonic character across its range, from miniature lavaliers through to this shotgun microphone. That means you can mix a hidden miniature on talent with the 4017B on a boom and keep a similar timbre between sources. In post, that consistency reduces the need for heavy EQ to make tracks sit together
Back to topProduct Specification
| Frequency response | 20 Hz - 20 kHz |
| Max. sound pressure level | 138 dB SPL peak |
| Microphone Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: signal - phase |
| Pick-up pattern | Supercardioid |
| Size | 19 x 212 mm |
| Type | Shotgun Microphone |
| Weight [g] | 68.00 |
