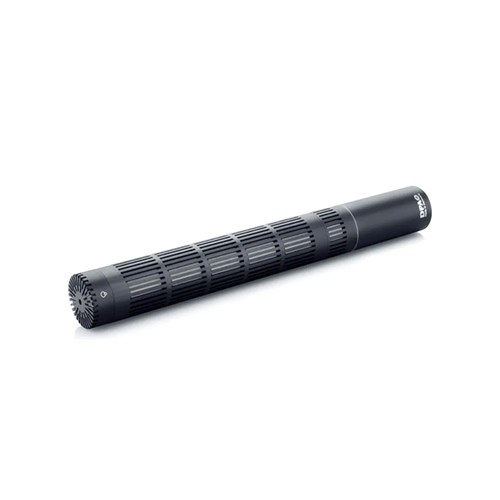

DPA 4017C Compact Shotgun Mic
The DPA 4017C Compact Shotgun Mic is a 154mm long supercardioid condenser microphone with an interference tube, designed for highly directional pickup in a remarkably small, 70g form. It delivers clean, controlled dialogue at a distance with natural off-axis sound, strong RF immunity, and reliable performance in humidity, heat, or cold, making it a serious broadcast-grade solution for compact boom and camera setups.
DPA 4017C Compact Shotgun Mic Key Features:
- Compact supercardioid shotgun mic for focused distant pickup
- Interference tube design increases directionality and side rejection
- 154mm length and 70g weight for lightweight boom setups
- Uniform off-axis response keeps ambience natural and controlled
- Handles peak SPL up to 152dB without clipping
- High RF immunity prevents interference from wireless systems
- Performs reliably in humid, hot or freezing conditions
- 19mm condenser cartridge delivers high output and wide dynamics
- Pre-polarised high-voltage back plate reduces noise and distortion
- Integrated active cable supports streamlined, compact rigging
What's in the box?
- 1 x DPA 4017C Compact Shotgun Mic
FAQs:
How does the 4017C differ from a traditional long shotgun microphone?
The 4017C achieves strong directionality in a much shorter 154mm body, which changes how it handles on a boom. It feels noticeably lighter at just 70g, reducing fatigue over long dialogue sessions. Despite its compact size, the interference tube and supercardioid design maintain tight pickup and strong off-axis rejection. It provides long-shotgun control without the front-heavy balance.
Is the off-axis sound usable, or does it colour the background heavily?
DPA has put considerable effort into smoothing the typical side-lobe irregularities found in many shotgun designs. The result is off-axis sound that feels natural rather than phasey or hollow. Background ambience stays believable, just reduced and damped. That makes mixing boom and plant mics far easier in post.
How well does the 4017C cope with RF-heavy environments?
It has excellent RF immunity, which is critical when working around wireless transmitters, IFBs, and camera systems. The RF immunity means fewer unexpected buzzes or interference issues when mounting close to digital gear. This stability is especially valuable on compact rigs where cabling runs close together.
Can it handle loud sources without distortion?
Yes. The 19mm condenser cartridge manages peak SPLs up to 152dB before clipping. That gives you confidence when capturing raised voices, shouting or sudden transients without worrying about harsh distortion. Combined with its high-output, low-noise design, it maintains clarity across a wide dynamic range.
Is it suitable for extreme weather conditions?
The 4017C is highly resistant to humidity and continues to perform in very hot or very cold climates. It has been designed to operate reliably in environments ranging from desert heat to arctic cold. For location recordists working outdoors, that consistency reduces the risk of moisture-related noise or capsule instability.
Back to topProduct Specification
| Frequency response | 20 Hz - 20 kHz |
| Max. sound pressure level | 146 dB SPL peak |
| Microphone Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Pick-up pattern | Supercardioid |
| Size | 19 x 154 mm |
| Type | Shotgun Microphone |
| Weight [g] | 70.00 |
