DZOFILM Arcana 32/45/75mm Lens Kit for PL Mount (Imperial)
Product Code: 3318359

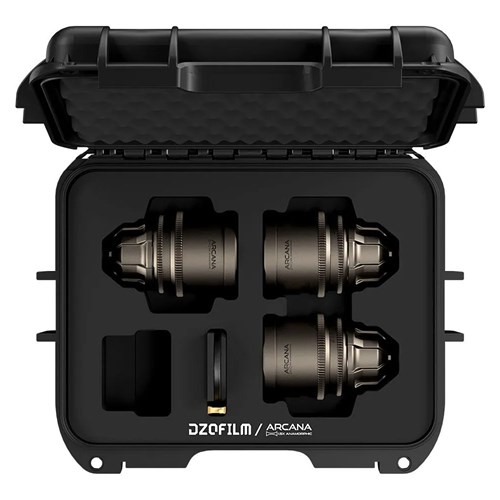

DZOFILM Arcana 32/45/75mm Lens Kit for PL Mount (Imperial)

£2,579.00 Awaiting Stock
Back to top

The DZOFILM Arcana 32/45/75mm kit is a set of T2.1 hybrid anamorphic cinema primes combining a 1.5x squeeze with the rendering characteristics of 2X anamorphic optics. They produce consistent oval bokeh and controlled horizontal flares while maintaining a compact, lightweight form, allowing cinematographers to achieve a cinematic image without the size and handling constraints typical of full-frame anamorphic lenses.

DZOFILM Arcana 32/45/75mm Lens Kit for PL Mount (Imperial) Key Features:

  • Hybrid anamorphic prime lenses combining 1.5x squeeze with 2X rendering character
  • Includes 32mm, 45mm, and 75mm lenses with similar weights and sizes
  • T2.1 aperture with oval iris design maintains consistent anamorphic bokeh
  • Front cylindrical design preserves natural distortion and avoids ‘mumps’ effect
  • Lightweight 700g per lens supports handheld and gimbal shooting setups
  • 14-blade iris produces smooth oval highlights across full aperture range
  • 270-degree focus throw allows precise manual focus control
  • Close focus range from 0.48m to 0.78m supports tighter framing
  • 80mm front diameter with 77mm thread fits standard filters and matte boxes
  • PL mount with multi-point positioning supports vertical shooting setups
  • Compatible with VND and autofocus adapters via compact rear element design
  • All-aluminium alloy housing for solid construction and low weight

A more compact approach to anamorphic

The Arcana series takes a considered approach to anamorphic design. By combining a front cylindrical element with an oval aperture, the lenses retain the spatial character and width typical of anamorphic lenses while reducing overall size and weight. They handle more like conventional cine primes, which simplifies rigging and balance on smaller camera systems.

Consistent bokeh and controlled depth of field

Alongside the 1.5x anamorphic front cylindrical elements, the oval iris plays a central role in maintaining a stable rendering across the aperture range. Bokeh remains consistently shaped as the lens is stopped down, avoiding the visual shifts often seen in more compact anamorphic designs. At T2.1, subject separation is clearly defined, with stretched highlights that reinforce the intended cinematic look without appearing exaggerated.

Predictable flare and distortion

The classic front cylindrical construction produces horizontal flares that respond naturally to light sources, without becoming dominant in the frame. Distortion is controlled and consistent, and the absence of the ‘mumps’ effect ensures facial proportions remain accurate across the image. This consistency is particularly useful when intercutting between focal lengths and reduces the burden on post-production.

Practical handling in production environments

Each lens weighs approximately 700g, which significantly reduces the physical demands of working with anamorphic optics. Their low weight makes them well-suited to handheld and gimbal operation, where balance and weight distribution are critical. The close focusing range, between 0.48m and 0.78m, allows for tighter compositions without requiring additional accessories.

Straightforward integration with existing setups

The physical design across the series supports standard production workflows. An 80mm front diameter with a 77mm thread on each lens allows the use of widely available filters and matte boxes. The PL mount incorporates multi-point positioning, enabling precise alignment for both horizontal and vertical shooting. Compatibility with VND and autofocus adapters further extends flexibility across different camera systems.

What’s in the box?

  • 1 x DZOFILM Arcana 32/45/75mm Lens Kit for PL Mount (Imperial)

FAQs:

How does the 1.5x squeeze compare to traditional 2X anamorphic lenses?

A 1.5x squeeze is generally easier to manage in both framing and post-production, while the oval aperture design helps retain the visual characteristics associated with 2X anamorphic lenses. This approach provides a balance between cinematic rendering and practical usability. It also reduces distortion and simplifies image handling during editing.

Are these lenses suitable for handheld or gimbal work?

Yes, the low weight of approximately 700g per lens makes them well-suited to handheld and stabilised setups. They are easier to balance than traditional anamorphic lenses, particularly on compact camera systems. The shorter minimum focus distance also supports more flexible shooting without additional equipment.

How consistent is the look across the three focal lengths?

The 32mm, 45mm and 75mm lenses match closely in both optical rendering and physical design. Flare characteristics, bokeh shape and overall image behaviour remain consistent across the set, ensuring continuity when cutting between focal lengths in a sequence.

What type of flare does the lens support?

The lenses produce horizontal anamorphic flares that respond naturally to light sources. These flares remain controlled and do not dominate the image, allowing them to be used deliberately within a scene. The behaviour is consistent, making it easier to predict results during production.

Can the lenses be adapted to different camera mounts?

Yes, the PL mount can be adapted to E, Z, L, RF and X mount systems with separately available adapters. The multi-point positioning feature also supports vertical shooting configurations. Compatibility with VND and autofocus adapters allows the lenses to integrate into a wide range of modern production setups.

Back to top

Product Specification

Aperture Blades 14
Filter Thread [mm] 77
Lens Mount PL-Mount
Max Aperture ~ Wide 2.1
Minimum Aperture 16
Size 80 x 80 mm
