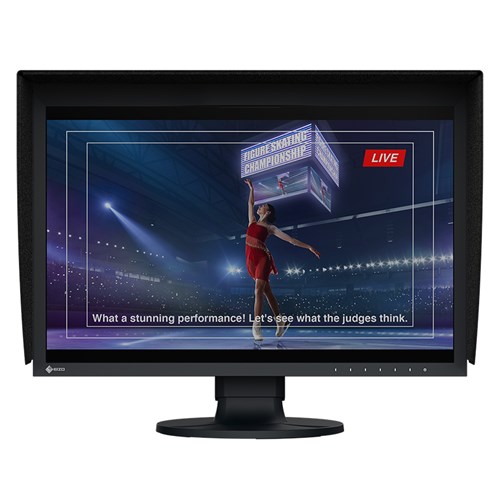

EIZO ColorEdge CG2400SV 24 Inch Monitor

The EIZO ColorEdge CG2400SV is a 24.1-inch WUXGA (1920 x 1200) reference monitor designed for broadcast and production applications. With 3G-SDI, DisplayPort and HDMI connectivity, it offers stable video transmission and clear monitoring. Equipped with 98% DCI-P3 coverage, a 10-bit display, and a 16-bit 3D LUT, along with HDR gamma support (PQ/HLG), it ensures faithful colour and true blacks, providing reliable accuracy for editing and grading.

EIZO ColorEdge CG2400SV 24 Inch Monitor Key Features:

• 24.1-inch WUXGA resolution 1920 x 1200 display
• 3G-SDI input and output with support for HD-SDI signals
• Additional DisplayPort and HDMI connectivity
• Wide gamut covering 98% DCI-P3 and 99% Adobe RGB
• 10-bit simultaneous display from a 16-bit LUT
• HDR gamma support with PQ and HLG curves
• True black display with 1800:1 contrast ratio
• Built-in self-calibration sensor for colour accuracy
• Pixel inspection for precise verification of image data
• Colour presets for broadcast and cinema standards
• Light-shielding hood with magnetic attachment
• Ergonomic stand with height tilt, swivel, and pivot adjustments

Advanced connectivity for broadcast and production

The EIZO ColorEdge CG2400SV 24 Inch WUXGA (1920 × 1200) monitor is built for editing, grading, and live production environments. With 3G-SDI input and output supporting uncompressed HD-SDI signals, as well as DisplayPort and HDMI connectivity, it integrates directly with professional camera systems and video feeds while preserving signal fidelity. Its compact cabinet design, featuring a built-in carrying handle, makes it suitable for both studio and on-location use.

Accurate colour reproduction for precise results

Covering 98% of the DCI-P3 cinema standard and 99% of the Adobe RGB space, EIZO’s CG2400SV ensures content is displayed with high accuracy across film and broadcast standards. Its 10-bit simultaneous display from a 16-bit LUT delivers over one billion colours, resulting in smoother gradations and reduced Delta-E between shades. A 3D LUT provides precise adjustments, while presets for broadcast and cinema allow quick adaptation to project requirements.

Intelligent calibration and control

A built-in self-calibration sensor automates colour adjustment without the need for external devices, ensuring long-term accuracy with minimal interruption. Paired with EIZO’s ColorNavigator 7 software, the monitor supports detailed calibration targets for brightness, gamma, white point, and gamut. Pixel inspection directly verifies displayed data against source input, giving production managers and editors confidence in meeting project specifications.

Preview and edit with HDR and AI-supported image stability

To support preview and editing work, the EIZO ColorEdge CG2400SV has features to ensure a consistently accurate and stable display. The CG2400SV supports HDR gamma curves, including PQ for streaming and film content and HLG for broadcast, providing accurate previews of high-dynamic-range material. With a high contrast ratio of 1800:1, true black reproduction is achieved, while EIZO’s digital uniformity equaliser maintains consistent brightness and chromaticity across the entire screen. Pixel Inspection on the ColorEdge CG2400SV allows users to check the exact colour data of any pixel, comparing the source input values with what is shown on screen. This function helps verify that technical parameters are correct, reducing the risk of mismatched settings during editing or grading. Temperature sensors and industry-first AI-driven adjustment algorithms stabilise colour and luminance in real time, achieving reliable accuracy within three minutes of power-up.

Designed for comfort and practicality

The EIZO ColorEdge CG2400SV 24 Inch Monitor is equipped with an ergonomic stand that allows for height, tilt, swivel, and pivot adjustments, enabling precise positioning for long editing sessions or collaborative monitoring. Its quick-release mechanism makes detaching the screen from the stand effortless, while the bundled light-shielding hood attaches magnetically to block ambient glare. A fanless design ensures silent operation, contributing to a distraction-free working environment.

What’s in the box?

• 1 x EIZO ColorEdge CG2400SV 24 Inch Monitor
• 1 x Signal Cable HDMI - HDMI
• 1 x USB Cable (Type A - Type B)
• 1 x Monitor Hood
• 1 x Power Cord
• 1 x Calibration Report
• 1 x Manual Via Download
• 1 x Quick Guide

FAQs:

What operating systems and hardware are compatible with the EIZO ColorEdge CG2400SV 24 Inch Monitor?

The EIZO ColorEdge CG2400SV 24 Inch Monitor is compatible with most operating systems, including macOS and Windows. It connects via DisplayPort, HDMI, or SDI and does not require special hardware to operate. This makes it straightforward to integrate into various professional production or editing environments.

How much can you adjust the EIZO ColorEdge CG2400SV 24 Inch Monitor?

The stand on the EIZO ColorEdge CG2400SV offers a wide range of adjustments to accommodate various working conditions. It supports height adjustment of up to 155 mm, tilt from 5° forward to 35° backwards, and 344° rotation. The panel can also pivot between portrait and landscape orientation, making it adaptable to both individual editing and collaborative viewing.

How many USB connections are available on the EIZO ColorEdge CG2400SV 24 Inch Monitor?

The CG2400SV is equipped with two USB Type-B upstream ports and four downstream Type-A ports. Two of the downstream ports support USB 5Gbps (USB 3), while the other two operate at USB 2.0 speeds. This setup allows easy connection of peripherals or external storage directly to the display.

What accessories are included with the EIZO ColorEdge CG2400SV 24 Inch Monitor?

The EIZO ColorEdge CG2400SV 24 Inch Monitor ships with a light-shielding hood, an HDMI cable, a USB Type-A to Type-B cable, a power cord, a factory calibration report, a quick guide, and a user manual (available for download).

How heavy is the EIZO ColorEdge CG2400SV 24 Inch Monitor, and is it suitable for portable use?

With the stand attached, the EIZO ColorEdge CG2400SV 24 Inch Monitor weighs 8.5 kg and without the stand, it weighs 5.5 kg. A built-in carrying handle makes transportation safer and more practical for mobile productions. Its compact depth of just 70.2 mm without the stand also helps it fit into tighter spaces or portable setups.
