Feelworld H5 5.5 inch Field Monitor
Product Code: 3314578

Feelworld H5 5.5 inch Field Monitor

£419.00 Limited stock - selling fast
Check stock near me

Back to top

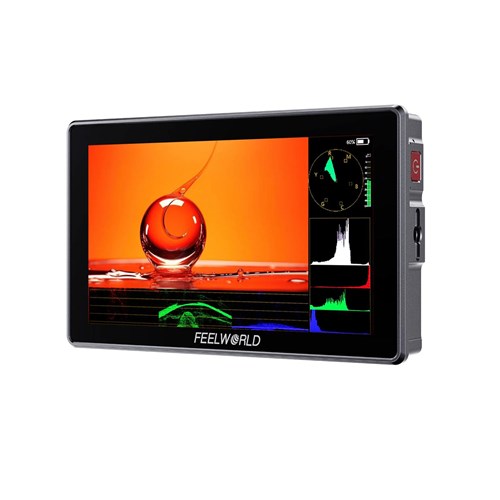

The Feelworld H5 is a 5.5-inch Full HD field monitor with 1200 nit brightness and 12G-SDI support, designed for on-camera and production monitoring up to 4K 60p. The screen stays clearly visible outdoors, while SDI and HDMI I/O keep it flexible across cameras and rigs. Touch control, LUT preview, and built-in scopes make it straightforward to judge exposure and colour directly on set.

Feelworld H5 5.5 inch Field Monitor Key Features:

  • 5.5-inch Full HD monitor designed for on-camera and broadcast use
  • 1200 nit brightness keeps image visible in strong daylight
  • 12G-SDI and HDMI 2.0 input and output support 4K 60p signals
  • Touchscreen control allows quick adjustment of monitoring tools
  • Loads up to 32 custom 3D LUTs for on-set colour preview
  • Built-in waveform, vectorscope, histogram, and audio monitoring tools
  • DCI-P3 and Rec.709 colour spaces with factory calibration
  • Loop-through SDI and HDMI output feeds additional monitors or recorders
  • Multiple power options, including NP-F batteries, DC input, and USB-C
  • Three custom shortcut buttons speed up access to key functions
  • Adjustable internal cooling system maintains performance over long sessions
  • Aluminium housing protects monitor during regular production use
  • Supplied mini hot shoe mount for attachment to camera or rig without tools

High-speed 12G-SDI support

The inclusion of 12G-SDI is what sets Feelworld’s H5 monitor apart from typical DSLR options. It supports 12G-SDI alongside HDMI 2.0, allowing signals up to 4096×2160 at 60p to pass through without compression, which keeps the image smooth and accurate when working with modern cinema or broadcast cameras. It also remains compatible with 6G-SDI, 3G-SDI, HD-SDI and SD-SDI, so it fits easily into older rigs. With both input and loop output on SDI and HDMI, you can feed another monitor, recorder or switcher without adding extra converters or splitters, and the monitor can display embedded timecode over SDI, which helps when syncing cameras or checking exact frame positions during multi-camera or broadcast work.

Bright, colour-accurate display

The first thing you notice with the H5 is the brightness. At 1200 nits, it holds up well in daylight without needing a hood, which makes a real difference when you’re working quickly or moving between setups. The 5.5-inch IPS panel is sharp enough to judge focus properly, with a 160° viewing angle that makes it easier for a director or focus puller to check the image from the side. Each screen is factory calibrated using CalMAN, with support for DCI-P3 and Rec.709 colour spaces, so exposure and colour judgement stay consistent on set.

Practical exposure and colour tools

All the expected monitoring tools are here, but they’re actually usable in practice. Waveform, vectorscope and histogram give you a proper read on exposure and colour, not just a rough guide. HDR monitoring is also available, with HLG support that lets you see a wider brightness range on the screen, which helps when checking highlight detail or working in high-contrast scenes. Being able to load LUTs directly via USB is helpful when shooting log, especially if you want to show clients a closer representation of the final look while keeping your exposure decisions grounded.

Reliable touch control

The touchscreen interface is responsive and cuts down time spent digging through menus. Swiping between tools or tapping to bring up scopes feels natural, especially when you’re working handheld or on a small rig. The three custom buttons on the top of the monitor let you set up shortcuts in advance, so you can jump straight to the functions you rely on most.

Built for mixed rigs and long days

Physically, it’s a straightforward, solid unit. The aluminium body gives it a bit of confidence when mounting and unmounting repeatedly, and the multiple 1/4-inch threads make it easy to position on different setups. Power is flexible too, with NP-F batteries for lightweight work and DC or USB-C when you’re building a more permanent rig. There’s also a 3.5mm headphone output for direct audio monitoring, which is useful when checking scratch audio from the camera without needing a separate recorder. The internal fan helps keep it stable during longer takes or live work.

What’s in the box?

  • 1 x Feelworld H5 5.5 inch Field Monitor
  • 1 x Micro HDMI Cable
  • 1 x HDMI Cable
  • 1 x Mini Hot Shoe Mount
  • 1 x USB-A to USB-C Adapter
  • 1 x Cable Management Tie
  • 1 x Manual

FAQs:

Does the Feelworld H5 support true 4K monitoring over SDI and HDMI?

Yes, it supports up to 4K 60p via both 12G-SDI and HDMI 2.0. Over SDI, it offers a single-link 12G transmission, which keeps cabling simple on higher-end rigs. It also remains backwards compatible with 6G, 3G, and HD-SDI sources, so it fits into mixed setups without any fuss. That flexibility is useful if you’re moving between different camera systems on the same job.

Is the screen bright enough to use outdoors without a sun hood?

In most situations, yes. At 1200 nits, it remains clearly visible in daylight, even in direct sunlight, reducing the need for additional shading. You can still benefit from angling the screen or using a hood in very harsh light, but for general outdoor shooting, it holds up well. It’s a noticeable step up from standard 400-nit to 500-nit monitors.

Can I load and use LUTs directly on the monitor?

Yes, you can load up to 32 custom LUTs via USB. This is particularly useful when shooting in log, as you can preview a corrected image while still recording a flat profile internally. Switching between LUTs is quick, so you can check different looks or match a production pipeline without slowing things down.

Are the built-in scopes usable for professional monitoring?

The waveform, vectorscope, histogram and audio meters give you an in-depth technical readout rather than a simplified overlay. You can display them individually or bring them all up at once, which is helpful when you’re balancing exposure and colour. It’s a practical replacement for carrying separate scopes on smaller productions.

What are the power options on the Feelworld H5?

Powering options are quite flexible. NP-F batteries work well for lightweight setups, giving roughly a couple of hours depending on capacity, while DC input is better for longer studio or interview setups. USB-C power is a useful addition, especially if you’re already running power banks or compact rigs. It’s easy to adapt depending on how minimal or built-up your setup is.

Does the monitor run hot during extended use?

There is an internal cooling system with adjustable modes, which helps manage heat during long recording sessions. In practice, it keeps the monitor stable without becoming distracting. You’ll hear the fan in very quiet environments, but on most sets it blends into background noise.

Back to top

Product Specification

Aspect Ratio 16:9
Audio Monitoring 3.5mm Stereo Headphone
Brightness 1200cd/m²
Contrast Ratio 1000:1
Dimensions 145.25 x 90.3 x 30.85 (mm)
Input | Output 1 x 12G-SDI, 1 x HDMI 2.0, 1 x USB-C, 1 x DC IN 12V | 1 x 12G-SDI, 1 x HDMI2.0
Operating Temperature -20°C~70°C
Panel Type IPS
Power Consumption ≤12W
Power Options NP-F batteries, DC input, and USB-C
Screen Size 5.5"
Storage Temperature -30°C~80°C
Timecode Yes
Weight 306g
