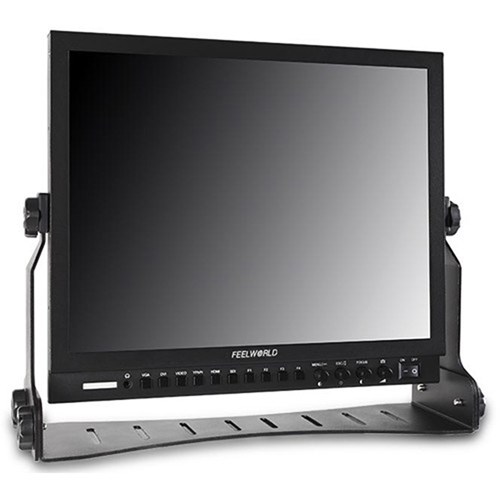

Feelworld P150-3HSD Broadcast Monitor HDMI Support 4k
Free delivery also available - more info
The Feelworld P150-3HSD Broadcast Monitor HDMI Support 4K with a 1024 x 768 resolution provides image clarity and sharpness. It supports HD and SD content and comes with multiple imaging functions for enhanced results. This monitor has HDMI and SDI inputs at the back for digital sources and composite and component video for analogue sources. It can be charged via a V-mount battery or power supply.
Feelworld P150-3HSD Broadcast Monitor HDMI Support 4k Key Features:
- Practical solution for live shows, broadcasts, and production purposes
- 1024 x 768 resolution & 350 cd/m² brightness for clear display in every lighting
- Supports HD and SD content for monitoring and framing
- HDMI & SDI inputs are included for digital sources
- Composite & component video inputs are included for legacy analogue sources
- Includes a 3.5 mm headphone jack and speaker for audio monitoring
- Imaging functions such as DSLR scaling, peaking focus assist, check field, & image flip
- Includes a power supply & a V-mount battery plate for efficient charging
- Includes an HDMI to mini HDMI cable to create a multi-monitor setup
- Include a tally kit to enable interfacing with the broadcast switchers
What's in the box?
- 1 x Feelworld P150-3HSD Broadcast Monitor HDMI Support 4k
- 1 x HDMI to Mini HDMI Cable
- 1 x V-Mount Battery Plate
- 1 x Power Supply
- 1 x Tally Kit
- Limited 1-Year Warranty
FAQs:
What is the resolution of this Feelworld broadcast monitor?
The Feelworld LCD monitor has a 1024 x 768 resolution.
Which imaging functions are included in the Feelworld P150-3HSD?
The monitor includes frame markers, focus peaking, 1:1 pixel mapping, DSLR scaling, image flip, check field, tally indicator, image freeze, and aspect ratio select functions.
What are the charging options available for the Feelworld P150-3HSD monitor?
The monitor comes with a V-mount battery plate and a power supply for charging.
How can I monitor the audio present in the digital signal?
The monitor has a 3.5 mm headphone jack and a built-in speaker to monitor the embedded audio.
Can I create a multi-monitor setup with this Feelworld HDMI support broadcast monitor?
The monitor comes with an HDMI to mini-HDMI cable to create a multi-monitor setup.
Back to topProduct Specification
| Audio Monitoring | Yes |
| Brightness | 350cd/m² |
| Connections | 1 x 3G-SDI HDMI 3 x YPbPr 1 x DVI 1 x Video 2 x Auido (L/R) 1 x Stereo Headphone |
| Contrast Ratio | 800:1 |
| Dimensions | H28.2 x W33.1 x D3.3 cm |
| Features | Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker, Power using included 12-volt supply or use standard 4-pin xLR, Built-in LED tally indicators (Red, Green, Yellow) |
| Included Accessories | 1 x Mini HDMI Cable 1 x V Battery Plate 1 x 1.5A Power Adapter 1 x Tally Kit 1 x Sunshade 1 x U bracket 1 x Operation Manual |
| Monitor Features | Image Freeze, Image Flip, Pixel to Pixel, Peaking Focus Assist |
| Power Consumption | ≤15W |
| Power Options | Battery Power DC 12V Power |
| Recording Formats and Framerates | 480i/576i/480p/576p, 1080i (60/59.94/50), 720p (60/59.94/50/30/29/25/24/23.98), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF), 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
| Resolution | 1024×768 |
| Screen Size | 15 Inches |
| Weight | 2.6kg |
| Manufacturers Link | Feelworld |
