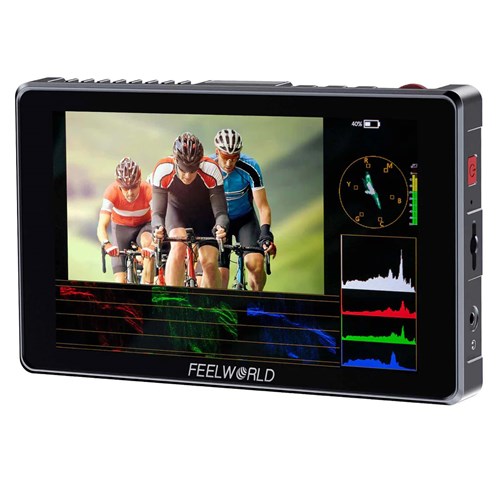

Feelworld S7 7 inch Field Monitor

Feelworld S7 7 inch Field Monitor Key Features:

• 7-inch 1920x1200 IPS field monitor for 4K production monitoring
• 12G-SDI connectivity enables a single-cable 4K signal workflow
• 1600nit brightness keeps the image visible in direct daylight
• Touchscreen control speeds up menu navigation and adjustments
• HDMI and SDI cross conversion simplifies mixed camera setups
• Supports importing up to 32 custom 3D LUTs via SD card
• LUT output over HDMI and SDI for the director or live feed
• Built-in waveform, vectorscope, and histogram for exposure control
• Aluminium CNC housing improves durability for location work
• Dual NP-F battery plate supports extended shooting sessions
• HDR monitoring with HLG profiles for expanded tonal preview
• Tally light integration supports live and multi-camera production
• Supplied mini hot shoe mount adapter with tilt and rotation adjustment

Single-cable 4K monitoring

The shift to 12G-SDI is what defines Feelworld’s S7 field monitor. Instead of dealing with four 3G-SDI cables for a 4K feed, this monitor uses a single line. With up to 12Gbps bandwidth, it carries high-resolution, high-frame-rate signals cleanly without splitting them across multiple connections. That makes rigging cleaner and far easier to manage, especially on smaller builds or when you’re moving quickly between setups. SDI and HDMI loop-out also make it easy to pass the signal on to another monitor, wireless transmitter, or switcher without adding extra distribution gear. It also keeps everything aligned, so you’re not monitoring a lower-resolution signal while shooting 4K.

Bright screen for outdoor viewing

At 1600 nits, you can rely on this monitor when shooting outdoors. Even in strong daylight, the image stays readable without needing a hood. The 7-inch IPS panel gives you enough space to judge focus and composition properly, with 10-bit colour support and wide gamut coverage that keeps tones looking consistent when checking footage on set. A 160° viewing angle means the picture holds up when a director or focus puller is standing off to the side, checking the frame.

Practical colour control on set

The S7 is calibrated via Calman software before it leaves the factory and covers around 94.9% of the DCI-P3 cinema gamut, so colour sits where you expect it to when matching cameras or checking a graded look. The 10-bit panel displays over a billion colours, helping avoid banding and keeping gradients smooth when working with log or HDR footage. Loading LUTs is straightforward via SD card, and being able to switch between them quickly helps when you’re checking different looks. The option to output LUTs over SDI or HDMI is useful when feeding a wireless system or client monitor.

Handling and on-set usability

The touchscreen is responsive enough to make menu navigation quick, especially when adjusting LUTs or monitoring tools, but a scroll wheel key offers an alternative method of operation. Three custom buttons on the top let you set up shortcuts that match how you shoot. The aluminium housing feels solid without adding too much weight, and with three standard 1/4” mounting points, it fits easily into different rig configurations.

Waveform, vectorscope, histogram and audio meters are all built into the S7. You can bring them up individually or all at once, depending on how you like to work. For smaller productions, this removes the need for separate scopes, which keeps the setup lighter and more manageable.

Flexible power and connectivity

Running dual NP-F batteries gives you decent operating time, and the ability to hot-swap between them avoids interruptions mid-take. The S7 also supports DC input for longer sessions. With 12G-SDI and HDMI 2.0 input and output, it cleanly handles up to 4K 60p signals across both connections, so you can switch between cinema cameras and mirrorless bodies without changing monitors. Built-in cross-conversion lets you take an SDI feed and output it over HDMI, or the other way around, which is useful when feeding wireless systems, recorders, or client monitors. It keeps everything connected without adding extra converters or complicating the rig.

What’s in the box?

FAQs:

Can the S7 handle both SDI and HDMI workflows on the same shoot?

Yes, and that’s one of its strengths. You can take an SDI input and output via HDMI, or the other way around, using the built-in cross-conversion. This is particularly useful when combining cinema cameras with mirrorless bodies or feeding different types of monitors. It reduces the need for external converters and keeps the setup simpler.

Is the screen bright enough for outdoor filming without a hood?

In most situations, yes. At 1600 nits, the display remains clearly visible even in strong daylight. You can still add a hood in extreme conditions, but for general outdoor work, you won’t need it constantly. The bright screen makes it easier to move quickly between locations without extra accessories.

How useful are the built-in scopes for real production work?

They’re genuinely usable. The waveform and vectorscope give you accurate exposure and colour information, and being able to position them on screen helps avoid covering important parts of the image. For many setups, they remove the need for separate monitoring gear, especially on smaller crews.

Can I easily load and use my own LUTs?

Yes. You can load up to 32 LUTs via the SD card slot using standard .cube files, and switch between them quickly through the touchscreen interface. The S7 also supports LUT loop-out over both SDI and HDMI, so you can send the graded image to a director’s monitor or wireless system while keeping control of the look on your screen. This makes it easier to maintain a consistent visual reference across the whole crew.

How does the monitor perform in longer shooting sessions?

It is designed to run continuously without issue. The built-in cooling helps manage heat during extended use, and dual-battery support lets you swap power without shutting down. For longer days or studio work, using DC input keeps everything stable and avoids battery changes altogether.
