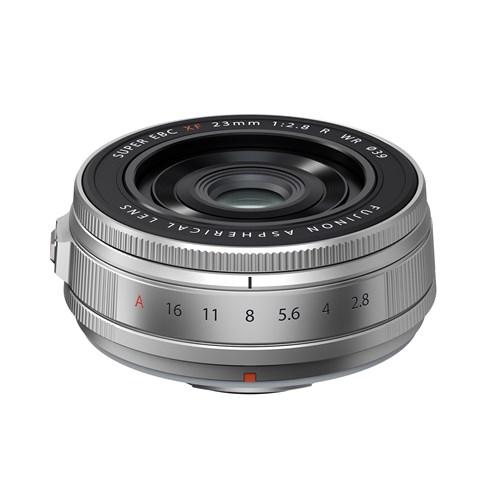

Fujifilm XF 23mm f2.8 WR Pancake Lens - Silver
Product Code: 3254138

Fujifilm XF 23mm f2.8 WR Pancake Lens - Silver

Variants
Loading...
£399.00 Pre-Order

Free delivery

2 Year Pentax Warranty
2 Year Fujifilm Warranty
Free Extended Warranty Fujifilm X-Series lenses.
Back to top

The Fujifilm XF 23mm f2.8 R WR is an ultra-compact wide-angle prime for X Series cameras. Designed to complement Fujifilm’s 40.2MP sensors, its 8-element f2.8 optical design with an 11-blade diaphragm minimises aberrations, maintains edge-to-edge sharpness and delivers naturally circular bokeh. With a 0.2m close focusing distance, fast DC autofocus and weather sealing, it offers a highly portable option for travel, street and everyday photography.

Fujifilm XF 23mm f2.8 WR Pancake Lens Key Features:

  • Ultra-compact wide-angle prime for X Series mirrorless cameras
  • Pairs with X-E5 as a portable high-performance kit for everyday shooting
  • 8-element 6-group optical construction designed for 40.2MP sensors
  • 2 Aspherical elements control distortion and maintain sharpness
  • f2.8 maximum aperture allows creative depth of field control
  • 11-blade rounded diaphragm delivers smooth circular bokeh
  • 0.2m close focusing distance with 0.15x maximum magnification
  • DC motor delivers fast, quiet autofocus for stills and video
  • Weather-sealed barrel with 9 points to protect against dust and moisture
  • Lightweight 90g build with 23mm length for easy portability
  • 39mm filter thread for attaching optional accessories
  • Compact form factor complements smaller Fujifilm bodies

Compact wide-angle prime optimised for Fujifilm’s latest X Series

The XF 23mm f2.8 R WR introduces a new ultra-compact option to Fujifilm’s XF lens lineup, designed to pair perfectly with fifth-generation X Series bodies, such as the X-E5. Weighing just 90g and measuring 23mm in length, it provides a highly portable solution for photographers seeking maximum image quality in a compact form factor. The lens delivers a 35mm full-frame equivalent field of view, making it ideal for travel, street, documentary and general-purpose photography where mobility and versatility are priority.

Optical design with aspherical elements

The lens features an 8-element, 6-group optical construction including two aspherical elements. This design minimises distortion, curvature, and edge softness while preserving sharpness across the entire frame, even when used with Fujifilm’s high-resolution 40.2MP X-Trans CMOS 5 HR sensor. The bright f2.8 maximum aperture offers depth-of-field control in low light, while the 11-blade rounded diaphragm produces naturally circular bokeh for portraits, close-ups and subject separation.

Fast autofocus with close focusing capability

A DC motor drives the autofocus system, delivering quick, accurate and near-silent focusing performance suitable for both stills and video. The full-group focusing system maintains image quality throughout the focus range, while a minimum focus distance of 0.2m allows photographers to capture close-up subjects with 0.15x magnification. This flexibility makes the lens well-suited to tabletop photography, product shots, and tight indoor spaces.

Durable construction with weather sealing

Despite its compact size, the XF 23mm f2.8 R WR features a durable metal barrel and precision-machined controls for long-term reliability. Separate aperture and manual focus rings enable more precise adjustments, supported by a sensor-driven manual focus system for accurate and controlled focusing. Weather sealing at nine points protects against dust, moisture, and light rain, while maintaining full operational performance at temperatures as low as -10°C.

What’s in the box?

  • 1 x Fujifilm XF 23mm f2.8 WR Pancake Lens
  • 1 x Front Lens Cap FLCP-39 II
  • 1 x Rear Lens Cap RLCP-001
  • 1 x Lens Hood LH-XF27
  • 1 x Lens Hood Cap LHCP-27
  • 1 x Lens Wrapping Cloth

FAQs:

Can I use filters on the Fujifilm XF 23mm f2.8 WR Lens?

Yes. The XF 23mm f2.8 R WR accepts 39mm screw-in filters, allowing you to attach UV, polarising, or ND filters directly to the front of the lens. This feature enables greater creative control over reflections, contrast, exposure and colour when shooting in different lighting conditions.

How does the XF 23mm f2.8 R WR differ from Fujifilm’s existing 23mm f2 lens?

While both lenses offer a 35mm equivalent field of view, the XF 23mm f2.8 R WR is significantly smaller and lighter, measuring only 23mm in length and weighing 90g. It prioritises portability for photographers who want a compact option for everyday shooting, especially when paired with smaller X Series bodies. The f2 version offers a wider maximum aperture but is physically larger and heavier.

Back to top

Product Specification

Angle Of View 63.4°
Aperture Blades 11
Autofocus Motor DC Motor
Colour Silver
Filter Thread [mm] 39
Focal Length ~ Wide [mm] 23.0
Included Accessories Front Lens Cap FLCP-39 II, Rear Lens Cap RLCP-001, Lens Hood LH-XF27, Lens Hood Cap LHCP-27, Lens Wrapping Cloth
Lens Elements 8
Lens Groups 6
Lens Mount Fujifilm X-Mount
Lens Type Wide-Angle Prime
Max Aperture ~ Wide 2.8
Minimum Aperture 16
Minimum Focus Distance [m] 0.20
Size 61.8 x 23 mm
Weight [g] 90.00
