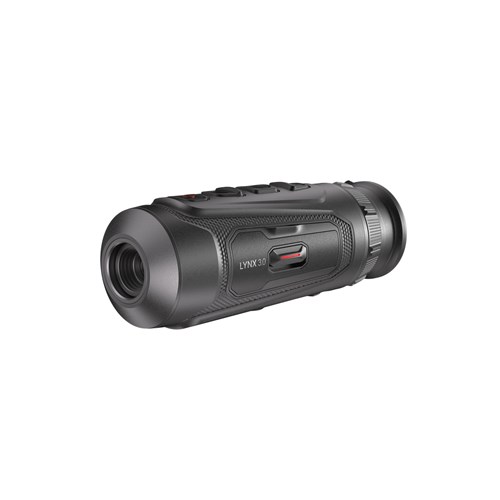

HIKMICRO Lynx 3.0 10mm LE103.0 Thermal Monocular
The HIKMICRO Lynx 3.0 10mm LE103.0 Thermal Monocular offers compact scanning performance with a 256×192 high-sensitivity thermal sensor and a 10mm f1.0 lens optimised for close-range detection. With AI-powered Image Pro 3.0, HSIS Shutterless technology and a 0.39” 1024×768 AMOLED display, it delivers clean, stable imaging in a pocket-sized body. A replaceable 18650 battery supports over 5.5 hours of continuous operation.
HIKMICRO Lynx 3.0 10mm LE103.0 Key Features:
- Lynx 3.0 thermal monocular with 10mm f1.0 lens
- 256×192 thermal sensor with NETD <20mk for high sensitivity>
- 1.4× base magnification with up to 8× digital zoom
- 18° × 13.6° field of view for close-range scanning
- Detection range up to 500m
- 0.39” AMOLED display at 1024×768 resolution
- HSIS Shutterless technology for uninterrupted viewing
- AI-based Image Pro 3.0 and Zoom Pro processing
- Built-in Wi-Fi hotspot for wireless control
- Still image capture for quick thermal snapshots
- Onboard video recording with audio support
- 64GB internal storage for saved footage and photos
- Replaceable 18650 battery offering up to 5.5 hours of operation
- Lightweight 291g design for easy transportation
Thermal Sensor Performance
The Lynx 3.0 LE103.0 incorporates a 256×192 VOx uncooled sensor with a sub-20 mK NETD rating, enabling more precise separation of subtle heat signatures, even in low-contrast environments. Its 12 μm pixel pitch supports better detail reproduction, making it effective for identifying wildlife, people, or heat traces during short- to mid-range observation.
Optics and Digital Zoom
A 10mm f1.0 thermal lens delivers a wide 18° × 13.6° field of view for efficient scanning in tight spaces or dense environments. The monocular provides a 1.4× base magnification and up to 8× digital zoom (1.4 - 11.2×), with Zoom Pro algorithms maintaining image stability during magnified viewing.
Viewing Experience
The 0.39” 1024×768 AMOLED display offers bright, detailed visuals across multiple colour palettes, including White Hot, Black Hot, Red Hot, Fusion, and monochrome. HSIS Shutterless technology eliminates traditional calibration interruptions, ensuring smooth, uninterrupted scanning, while AI-driven Image Pro 3.0 adjusts the image for clarity across varying conditions.
Battery System and Connectivity
A replaceable, rechargeable 18650 battery provides up to 5.5 hours of runtime at -20°C, with support for direct USB-C charging and charging from external power banks. The monocular includes onboard video recording, snapshots, audio capture, hotspot Wi-Fi streaming, hot-track and picture-in-picture modes, all stored on 64GB of internal memory.
Compact Outdoor-Ready Design
Weighing 291.5g, the LE103.0 is purpose-built for fast deployment and pocket-friendly carrying. Its IP67-rated housing withstands rain, dust and harsh temperatures from -30°C to 45°C, making it suitable for year-round outdoor use in wildlife observation, inspection, security work or agricultural monitoring.
What's in the box?
- 1 x HIKMICRO Lynx 3.0 LE103.0
- 1 × Battery Charger
- 2 × Batteries
- 1 × Lint-Free Cloth
- 1 × Type-C Cable
- 1 × Quick Start Guide
FAQs
What sensor does the HIKMICRO Lynx 3.0 LE103.0 use?
It uses a 256×192 VOx uncooled thermal sensor with a NETD rating below 20 mK, enabling it to detect minimal temperature differences for improved clarity in fog, rain, and cold environments. This sensitivity helps reveal heat signatures that may be difficult to distinguish on lower-performance sensors.
What is the detection range of the LE103.0?
The LE103.0 offers a detection range of up to 500m, making it suited to close- and mid-range scanning, especially when paired with its wide 18° field of view, allowing users to monitor open spaces or wooded areas with accuracy.
How long does the battery last?
The replaceable 18650 battery provides up to 5.5 hours of continuous operation at -20°C, and the device supports direct USB-C charging and external power banks. This ensures reliable performance during extended observation sessions or in colder weather.
What display does the LE103.0 use?
It features a 0.39” 1024×768 AMOLED display, offering high contrast, sharp detail and stable imagery. Combined with Image Pro 3.0 and multiple palette options, it delivers a clear visual output well-suited for night monitoring and wildlife detection.
Is the LE103.0 suitable for outdoor use?
Yes. The monocular is IP67-rated for dust and water protection and functions in temperatures from -30°C to 45°C. Its durable construction and lightweight 291.5g build make it appropriate for wildlife tracking, pest control, security patrols and general field scanning.
Back to topProduct Specification
| Colour | Pattern | Black |
| Included Accessories | Battery Charger 2 × Batteries Lint-Free Cloth Type-C Cable Quick Start Guide |
| Size [cm] | 15.24 × 5.36 × 6.73 cm |
| Type | Thermal Monocular |
| Weight [g] | 291.50 |
