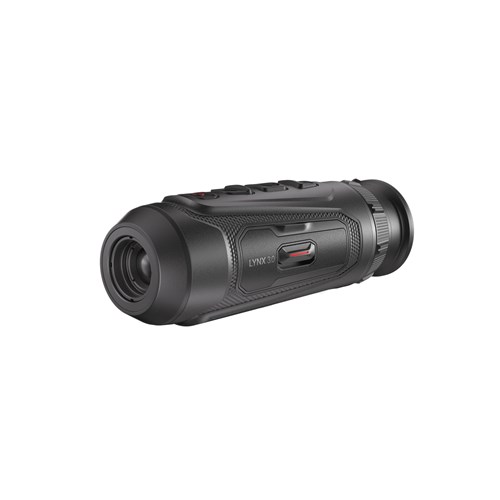

HIKMICRO Lynx 3.0 15mm LH153.0 Thermal Monocular
The HIKMICRO Lynx 3.0 15mm LH153.0 Thermal Monocular delivers a 320×240 high-sensitivity thermal sensor paired with a 15mm f1.0 lens, offering a 2.2× base magnification and an 11.7° field of view. With AI-powered Image Pro 3.0, HSIS Shutterless technology and a 0.39” 1024×768 AMOLED display, it produces precise, stable thermal imaging in a compact, pocket-sized body. A replaceable 18650 battery supports up to 5 hours of continuous operation.
HIKMICRO Lynx 3.0 15mm LH153.0 Key Features:
- Lynx 3.0 thermal monocular with 15mm f1.0 lens
- 320×240 thermal sensor with <18mk sensitivity>
- 2.2× base magnification with up to 8× digital zoom
- 11.7° × 8.8° field of view for mid-range scanning
- Detection range up to 750m
- 0.39” AMOLED display at 1024×768 resolution
- HSIS Shutterless technology for uninterrupted viewing
- AI-based Image Pro 3.0 and Zoom Pro processing
- Built-in Wi-Fi hotspot for wireless control
- Still image capture for quick thermal snapshots
- Onboard video recording with audio support
- 64GB internal storage for saved footage and photos
- Replaceable 18650 battery offering up to 5 hours of operation
- Lightweight 296.5g design for easy transportation
Thermal Sensor Performance
The Lynx 3.0 LH153.0 incorporates a 320×240 VOx uncooled thermal sensor with a < 18 mK NETD rating, offering greater detail than 256×192 models. Its 12 μm pixel pitch supports strong thermal separation, helping identify wildlife, people or heat traces across mid-range distances with improved clarity in low-contrast or forest environments.
Optics and Digital Zoom
A 15mm f1.0 lens delivers an 11.7° × 8.8° field of view and a 2.2× base magnification suited to mid-distance detection. The LH153.0 supports up to 8× digital zoom (2.2 - 17.6×), while Zoom Pro algorithms maintain image stability and detail during magnified viewing.
Viewing Experience
The 0.39” 1024×768 AMOLED display provides bright, high-contrast visuals across a wide range of colour palettes, including White Hot, Black Hot, Red Hot, Fusion and monochrome modes. HSIS Shutterless technology eliminates traditional calibration freezes, ensuring a smooth, uninterrupted viewing experience. Image Pro 3.0 further refines clarity in changing outdoor conditions.
Battery System and Connectivity
A replaceable 18650 battery provides up to 5 hours of continuous operation at -20°C, with support for USB-C direct charging and external power banks. The monocular offers onboard video recording, snapshot capture, audio recording, picture-in-picture mode, hot-track and dual-band Wi-Fi hotspot streaming, with files stored on 64GB of internal EMMC memory.
Compact Outdoor-Ready Design
Weighing 296.5g, the LH153.0 combines a pocket-sized form with reliable durability. Its IP67-rated housing protects against dust, rain and harsh temperatures from -30°C to 45°C. This makes it well-suited for forest environments, wildlife monitoring, agricultural checks, night patrols or general outdoor scanning.
What's in the box?
- 1 x HIKMICRO Lynx 3.0 LH153.0
- 1 × Battery Charger
- 2 × Batteries
- 1 × Lint-Free Cloth
- 1 × Type-C Cable
- 1 × Quick Start Guide
FAQs
What sensor does the HIKMICRO Lynx 3.0 LH153.0 use?
It uses a 320×240 VOx uncooled thermal sensor with a <18mk netd rating. this higher resolution improves definition when scanning woodland, detecting small animals or identifying distant heat signatures in challenging conditions.>
What is the detection range of the LH153.0?
The LH153.0 has a detection range of up to 750m, supported by its 15mm f1.0 lens and 11.7° field of view. This makes it effective for identifying movement or heat sources at mid-range distances in forest or open environments.
How long does the battery last?
A replaceable 18650 battery offers up to 5 hours of continuous operation at -20°C. The unit supports USB-C direct charging and power from external battery banks, helping extend runtime during prolonged sessions.
What display does the LH153.0 use?
It features a 0.39” 1024×768 AMOLED display that provides high contrast and stability. Combined with Image Pro 3.0 processing and multiple palette modes, it delivers precise, reliable thermal imaging across varied lighting conditions.
Is the LH153.0 suitable for outdoor use?
Yes. The monocular is IP67-rated for water and dust protection and operates between -30°C and 45°C. Its durable construction and 296.5g weight make it ideal for forestry work, wildlife tracking, security patrols and general outdoor observation.
Back to topProduct Specification
| Colour | Pattern | Black |
| Included Accessories | Battery Charger 2 × Batteries Lint-Free Cloth Type-C Cable Quick Start Guide |
| Size [cm] | 16.27 × 5.36 × 6.73 cm |
| Type | Thermal Monocular |
| Weight [g] | 296.50 |
