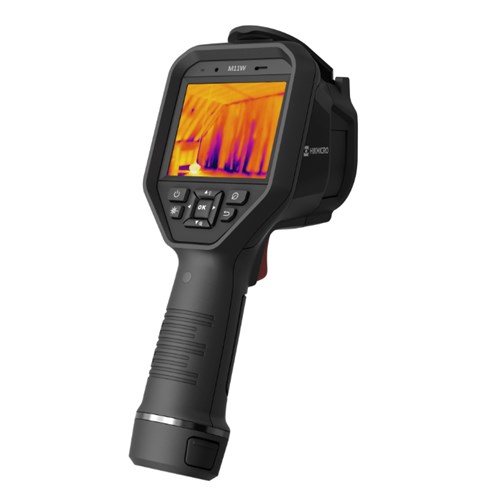

HIKMICRO M11W Handheld Thermal Camera

The HIKMICRO M11W is a professional-grade handheld thermal imaging camera designed for inspecting large surfaces and industrial systems. With a 192 × 144 IR resolution upscaled to 384 × 288 via SuperIR, a wide 37.2° × 27.8° field of view, and an 8MP visual camera, it captures detailed thermographic images with clarity. Ideal for HVAC, electrical, and mechanical maintenance, the M11W offers intuitive controls, a large 3.5" touchscreen, and robust battery life for all-day use.

Key Features:

• 192 × 144 thermal resolution (SuperIR upscales to 384 × 288)
• 8MP visible-light camera with Thermal, PIP, Fusion, and Optical modes
• Temperature range from -20°C to 550°C with ±2°C / ±2% accuracy
• Wide 37.2° × 27.8° field of view for scanning large targets
• 3.5" LCD touchscreen with 640 × 480 resolution
• 1.0× to 8.0× continuous digital zoom
• Built-in laser pointer and LED work light
• Removable 32GB microSD card stores up to 60,000 images or 15 hours of video
• Add 60s voice notes and 200-character annotations
• Supports manual, auto, and 1-tap Level & Span contrast modes
• Dual 6-hour rechargeable batteries included for all-day inspections
• Drop tested to 2 m and IP54 rated for dust and water resistance
• Wi-Fi connectivity for real-time sharing with HIKMICRO Viewer App

What’s in the box?

• 1 × HIKMICRO M11W Thermal Imaging Camera (Auto Focus)
• 1 × Calibration Certificate
• 1 × Printed Quick Start Guide
• 1 × Hard Carrying Case
• 1 × Charging Base with US/EU/UK/AU Adapters
• 2 × Interchangeable Rechargeable Batteries
• 1 × Wrist Strap
• 1 × 64GB MicroSD Card
• 1 × 2-in-1 USB-C to USB-C/A Cable

FAQs

What resolution and detail can I expect from the HIKMICRO M11W?

The M11W features a 192 × 144 infrared sensor, which is enhanced to 384 × 288 with SuperIR technology. This, along with an 8MP visual camera and 3.5" touchscreen, ensures clear and accurate thermal detail even when inspecting large areas or distant targets.

Can I annotate images or add notes during inspections?

Yes, the M11W allows users to record up to 60 seconds of voice notes and add 200-character text annotations to both images and video. This feature streamlines post-inspection analysis and helps professionals keep context for every scan.

How long can I use the M11W without needing to recharge?

The camera includes two interchangeable rechargeable batteries, each offering around 6 hours of runtime. This gives you up to 12 hours of field use, supported by a dual-slot charging base and plug adapters for global use.

Does the M11W support real-time sharing or mobile access?

Absolutely. The M11W connects to the HIKMICRO Viewer App via built-in Wi-Fi, allowing real-time image streaming, analysis, and reporting directly from your mobile device—ideal for collaborative or on-site workflows.

Is the M11W suitable for tough environments?

Yes, it is IP54 rated for dust and water resistance and drop tested to 2 m. Whether on a job site, in a workshop, or navigating industrial facilities, the M11W is built for durability and consistent performance.
