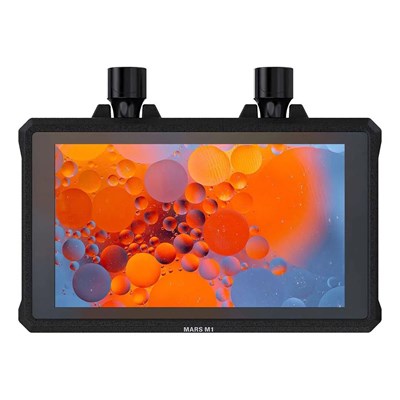

Hollyland Mars M1 Enhanced Kit
The Hollyland Mars M1 Enhanced Kit contains two versatile all-in-one wireless monitor, transmitter, and receivers with a 450ft (150m) LOS range. Its colour-accurate and responsive 5.5” LCD touchscreen and ultra-low latency of 80ms, which eliminates lag for a stable wireless signal, make image monitoring a breeze. HDMI and SDI support provide connectivity options for professional video productions.
Hollyland Mars M1 Enhanced Kit Key Features:
- Kit contains two Mars M1 Enhanced wireless transceiver monitors
- All-in-one wireless monitor, transmitter, and receiver
- 5.5” LCD touchscreen with a brightness of 1,000 nits
- Display features incredible accuracy with Rec.709 colour gamut
- Finetune the RGB gain to achieve your ideal colours
- Supports an impressive LOS range of up to 450ft (150m)
- Low latency of only 0.08 seconds for seamless monitoring
- Switch between functionalities on a user-friendly interface
- Powered by HollyOS for advanced monitoring controls
- Supports an impressive 4K/30fps HDMI input and loopout
- SDI input offers additional connectivity options for pro video
- Smart channel scan ensures a stable connection is selected
- Offers automatic trigger recording and video playback
- Connect with up to two receivers or four mobile device apps
- Compatible with Mars Pro series and Mars 4K video transmission systems
- Features a new and improved, comfortable-to-use textured design
- Capsule antennas eliminate the need to disassemble and reassemble constantly
What’s in the box?
- 2 x Hollyland Mars M1 Enhanced 5.5" Wireless Transceiver Monitor
- 4 x Capsule Antenna
- 2 x Tempered Glass Screen Protector
- 2 x USB-C Converter
- 2 x D-Tap to Locking DC Power Cable
FAQs:
How much does the Hollyland Mars M1 Enhanced Kit weigh?
The Hollyland Mars M1 Enhanced wireless transceiver monitor weighs approximately 400g, excluding the antenna, and has a durable shell for protection in any environment.
Does the Hollyland Mars M1 Enhanced Kit have any mounting points?
The Hollyland Mars M1 Enhanced has two 1/4"-20 (Female), enabling you to mount it on compatible screws.
How do I power the Hollyland Mars M1 Enhanced Kit?
The Hollyland Mars M1 Enhanced has one L-series battery, or it can be powered by 7 to 16 VCD DC input power.
What video transmission systems is the Hollyland Mars M1 Enhanced Kit compatible with?
The Hollyland Mars M1 Enhanced is universally compatible with the Mars Pro series and Mars 4K video transmission systems, reducing the need for additional devices.
Back to topProduct Specification
| Dimensions | 6 x 3.8 x 1.6" / 152 x 96 x 40 mm, Excluding Antenna |
| Included Accessories | 4 x Capsule Antenna, 2 x Tempered Glass Screen Protector, 2 x USB-C Converter, 2 x D-Tap to Locking DC Power Cable |
| Input | Output | Antenna I/O: 2 x RP-SMA Male, Video I/O: 1 x HDMI (Unspecified Signal) Input, 1 x BNC (3G-SDI) Input, 1 x HDMI (Unspecified Signal) Loop Output, Embedded Audio: HDMI/SDI, Audio I/O: 1 x 1/8" / 3.5 mm Headphone Output, Power I/O: 1 x Barrel (16 VDC) Input, 1 x Barrel Output, Other I/O: 1 x USB-C (Firmware) Input |
| Mounting | 2 x 1/4"-20 Female |
| Power Input | 7 to 16 VDC |
| Supported Video | HDMI: DCI 4K: 30/29.97/25/24/23.98, UHD 4K: 30/29.97/25/24/23.98, 1080p: 60/59.94/50/30/29.97/25/24, 1080i: 60/59.94/50, 720p: 60/59.94/50, SDI: 1080p: 60/59.94/30/29.97/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50 |
| Weight | 400g |
