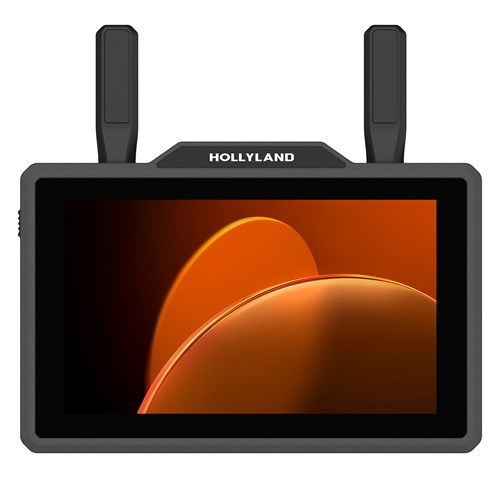

Hollyland Pyro 5

The Hollyland Pyro 5 is a 5.5-inch wireless monitor with a daylight-viewable 1500-nit screen and robust dual-band 2.4G/5G transmission. With support for up to four receivers with a single transmitter, it maintains transmission over a 400m line-of-sight distance. It offers SDI and HDMI inputs and outputs, camera control via touchscreen, proxy recording, and RTMP live streaming, making it ideal for multi-cam and mobile production setups.

Hollyland Pyro 5 Key Features:

• 5.5-inch wireless monitor with 1500 nits brightness
• Designed for professional production environments
• Powered by cutting-edge Wi-Fi Broadcast technology
• Supports 4-way monitoring via Broadcast Mode
• One transmitter can connect to up to four receivers
• Up to 400m line-of-sight (LOS) range and 150m back-to-back
• Adjust your camera’s shutter speed, aperture, focus, and more
• Records proxy files to an SD card or USB drive while monitoring
• Offers multi-camera switching suitable for live productions
• RTMP live streaming directly to Zoom, YouTube Live, TikTok, and more
• Dual-band 2.4G/5G transmission system for low latency
• SDI and HDMI ports for flexible connectivity options
• Integrates into the Pyro ecosystem with Lock Pairing
• Compact, lightweight, and durable for reliable on-set monitoring

Bright, 5-inch wireless monitor

The Hollyland Pyro 5 is a compact transceiving monitor ideal for outdoor and location-based shoots. The 5.5-inch touchscreen display boasts a peak brightness of 1500 nits, ensuring clear visibility even in direct sunlight. The touchscreen provides intuitive operation for direct camera control, allowing you to make adjustments to shutter speed, aperture, focus mode, white balance, trigger, and ISO.

Stable dual-band transmission

Designed for stable transmission, Hollyland’s Pyro 5 is powered by cutting-edge Wi-Fi broadcast technology. In Broadcast Mode, it enables one transmitter to connect to up to four receivers, maintaining smooth, real-time video transmission, with intelligent camera views switching and frequency hopping. Suitable for multi-camera setups, Broadcast Mode provides a 200m line-of-sight or 100m back-to-back transmission range. When Broadcast Mode is off, connecting to up to four receivers is still possible, offering an extended range up to 400m line-of-sight and 150m back-to-back.

Using dual-band 2.4GHz and 5GHz technology, the Pyro 5 also features automatic frequency selection and real-time auto-hopping to minimise interference and enhance reliability. When switched on, the transceiver automatically scans and locks onto the optimal frequency channel thanks to Smart Channel Selection.

Built for complex productions

Hollyland’s Pyro 5 is more than just a monitor, supporting a range of functions for smooth video production on set. It supports proxy recording, allowing you to record proxy files to an SD card or USB drive while monitoring. The proxy files include timecode for accurate editing in post production.

The Pyro 5 is suitable for multi-camera setups, providing quick switching between camera groups. With easy access to switching, it is ideal for keeping up with fast-paced live productions, which demand close monitoring. When using multiple Pyro systems, you can use Lock Pairing to avoid signal mix-ups and ensure each receiver remains connected to its original transmitter. You can even use the Pyro 5 to stream directly to Zoom, YouTube Live, TikTok, and other platforms, thanks to RTMP support, requiring minimal setup for live streaming anywhere.

Ready for any setup

To suit your production needs, the Hollyland Pyro 5 includes a range of customisation options and handy tools. Whether you prefer high-fidelity visuals or low latency, the Pyro 5 can deliver with HD Mode and Smooth Mode. HD mode provides clear transmission with a 12Mbps bitrate and a minimum latency of 75ms, making it ideal for critical image monitoring. In contrast, Smooth Mode adjusts the bitrate to achieve a latency of 60ms at the lowest, making it suitable for long transmission distances. The Pyro 5 is equipped with enhanced image analysis tools that provide accurate and user-friendly support. With support for HDMI and SDI input and output, it connects easily across a wide range of professional setups.

What’s in the box?

• 1 x Pyro 5 Wireless Transceiving Monitor
• 2 x Easy-Install Short Antenna
• 1 x Quick Guide
• 1 x Warranty Card
• 1 x Tempered Glass Screen Protector
• 1 x Packing List Card
• 1 x USB-C OTG Adapter

FAQs:

Is the Hollyland Pyro 5 easy to set up?

The Hollyland Pyro 5 features a durable, lightweight build with easy-install antennas that make setup, transport, and storage quick and easy.

How compact is the Hollyland Pyro 5?

The Hollyland Pyro 5 has a dual-injection shell that keeps the device both light and durable, supporting you in harsh outdoor conditions or through long-term use. With a 5.5-inch touchscreen, it weighs just 538g and measures 180 x 127 x 45.8mm, making it a compact choice for on-set or on-location shoots.

What audio formats and connections does the Pyro 5 support?

The Pyro 5 supports 8-channel audio input and output over HDMI 1.4b, making it suitable for professional-grade monitoring that requires multi-channel audio. It also includes a 3.5mm headphone jack for direct audio monitoring on set. This ensures that both camera operators and sound technicians can verify audio fidelity in real-time without the need for external converters.

What screen specifications make the Pyro 5 suitable for accurate monitoring?

Hollyland’s Pyro 5 features a 5.5-inch touchscreen with a 1920x1080 resolution, Rec.709 colour gamut coverage, and 1000:1 contrast ratio. This provides reliable colour reproduction and visual clarity for critical monitoring. The 16:9 aspect ratio ensures compatibility with most standard broadcast and cinematic formats.

How do you stream with the Hollyland Pyro 5?

With RTMP support, the Pyro 5 lets you stream directly to Zoom, YouTube Live, TikTok and more with the HollyView App and minimal additional setup. To stream, you must connect a 4G LTE Wi-Fi modem, enter your stream key, and go live.
