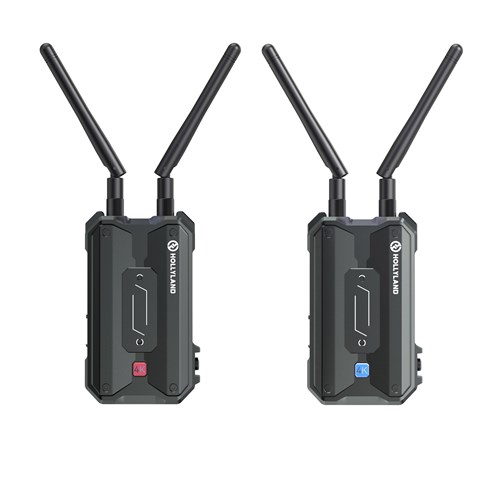

Hollyland Pyro H Dual HDMI Wireless Video Transmission System
Product Code: 3166609

Hollyland Pyro H Dual HDMI Wireless Video Transmission System

£340.00 Awaiting Stock
Back to top

Pryo H is your ultimate HDMI-only solution for video transmission at up to 4K/30fps. With transmission over dual 2.4 GHz and 5 GHz frequency bands, this innovative kit marks Hollyland’s pioneering leap into the realm of 4-receiver support, offering enhanced monitoring stability and collaboration on set. With upgraded performance in transmission range, latency, and more, it makes a difference.

Hollyland Pyro H Dual HDMI Wireless Video Transmission System Key Features:

  • 1TX can be used with 4RX
  • Up to 1,300ft (400m)
  • 0.06s Low Latency
  • 2.4 GHz & 5 GHz Dual Band
  • 4K30 Transmission
  • HDMI Loopout
  • USB Video Class (UVC)
  • Smart Channel Scan

4 Receivers. Not an Issue.

Pyro H's WifiBroadcast technology enables one transmitter to connect to up to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set. When Broadcast mode is activated, the transmitter can transmit signals to at most four receivers, and the LOS range reaches 650ft (200m). When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices, and the LOS range extends up to 1,300ft (400m).

Faster. Longer. Stronger.

With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro H features a stable transmission range of up to 1,300ft (400m) and a latency of as low as 60ms. Compared to Mars series whose transmission range extends at the cost of image quality and latency, Pyro H excels with increased transmission distance while preserving video quality and minimizing latency. The kit also provides two modes for users to tip the balance between image quality and latency, with HD mode for better image quality with bitrate at up to 12 Mbps and Smooth mode for a dynamic change in latency.

4K. Crisp and Sharp.

With 4k/30fps transmission capabilities, Pyro H presents images with superior clarity, detail, and realism, making it competent for professional applications, such as filmmaking.

HDMI Loopout Support.

HDMI Loopout port allows the output of signals to another display device, such as a monitor, without compromising the quality of the transmitted signal, which enables users to conveniently monitor the transmitted content, and make adjustments as necessary.

USB Video Class.

UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring additional drivers or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.

Smart Channel Scan.

Upon startup, Pyro H automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the receiver’s smart channel scan function to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.

Easy Setup. Ready to Go.

Pyro H supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time matters to content creators. What matters to you matters to Hollyland.

USB-C Charging. Continuous Power.

In addition to DC and NP-F batteries, Pyro H also supports USB-C power supply (5-12V). This power supply option proves convenient, especially when using stabilisers, as it eliminates the need for NP-F batteries, thus reducing overall weight and enhancing manoeuvrability.

What’s in the box?

  • 1 x Pyro H Wireless Video Transmitter
  • 1 x Pyro H Wireless Video Receiver
  • 5 x Cylindrical Antenna (2.4GHz & 5GHz)
  • 1 x Rotatable Cold Shoe Mount
  • 1 x USB-C OTG Adapter
  • 1 x Quick Guide
  • 1 x Warranty Card
  • 1 x Packing List Card
  • 1 x Compliance Information
Back to top

Product Specification

Dimensions Transmitter: (L x W x H) 109 x 62.3 x 33.4mm Receiver: (L x W x H) 109 x 62.3 x 33.4mm
Frequency Band 2.4 GHz and 5 GHz
Included Accessories Cylindrical Antenna (2.4GHz & 5GHz), Rotatable Cold Shoe Mount, USB-C OTG Adapter, Quick Guide, Warranty Card, Packing List Card, Compliance Information
Input | Output Transmitter: DC Input: 2.0mm Core Socket, HDMI Input: HDMI 1.4b, HDMI Loopout: HDMI 1.4b, USB-C: USB 2.0 OTG, Antenna SMA Male. Receiver: DC Input: 2.0mm Core Socket, HDMI Output: HDMI 1.4b, USB-C: USB 2.0 OTG, Antenna: SMA Male
Power Input USB-C 5V/2A (not supported in Broadcast mode), Battery Voltage Range: 6.8 - 8.4V, DC Voltage Range: 6 - 16V
Weight Transmitter: 192g, Receiver: 192g
