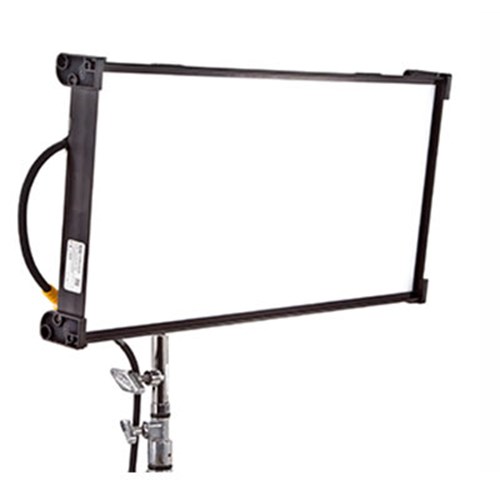

Kino Flo's award-winning FreeStyle 21 unleashes your creative side with a quick-release feature to remove the LED panel from the fixture, cutting the weight nearly in half (from 11.6 lbs/5.3kg to 7 lbs/3.2kg) and creating a smaller form factor for better rigging flexibility. The LED panel's corner bumpers can be used to hang from rope or wire. The panel also takes a Twist-On mount for working on light stands.
The Freestyle 21 comes complete with the full color, programmable FreeStyle controller, Head Cable (25ft), Complete Fixture with removable LED panel, and a twist-on KinoGrip Center Mount. Honeycomb 90° or 60° louvers, mounted with Velcro, give direction to the light, and when removed the panel displays a broad soft beam across the set.
The FreeStyle 21 is known for its >96 white light, full hue and saturation colour, cinema gel choices, and RGB chromatic selection via the AC/DC FreeStyle 150Watt controller. It has built-in Lumen Radio wireless DMX; no extra cost for wireless receiver accessories. The light can also be operated directly up to 50 feet away from the controller via Kino Flo head cables. The Freestyle's driver technology achieves bright, soft light with continuous dimming from 100% to 0% on a linear or square curve without flicker at higher camera speeds or at varied shutter angles. There is no light level change when shifting from 2500K to 9900K, and the color duoesn't change when the light levels rise or fall.
Colour and luminosity remain stable over the rated life of the LED's using Kino Flo's advanced True Match® daylight and tungsten colour management system, which has been an unqualified success since the Kino Flo introduced the idea of soft panel True Match Celeb Studio LED's six years ago. Passive cooling keeps the LED's in good shape for a longer usable life than fixtures that require electric fans.
In the Gels/Hue menu, the Kelvin range is extended to 2500K Kelvin to 9900K daylight and a fourth channel is called Gel. The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapour, mercury vapour as well as over 100 well-known lighting gels. The gel function can be applied to any Kelvin temperature and by pushing the control knob in/out, the gel will be applied or removed. A fifth channel called Hue Angle (Hue) and sixth channel Saturation (Sat) are also included in the gel menu. These two channels behave similar to a traditional colour wheel, where white light is in the center and Hue Angle determines the colour along a 360-degree range and Saturation determines how much colour is applied. With the Hue Angle and Saturation it is possible to create over 2 million color combinations!
The RGB colour menu gives individual control of red, green and blue LED's. The RGB mode is a great way to work with apps with predetermined RGB presets or colour wheels. RGB menu is also a great feature to dial in specific gel RGB values or when controlling colors from a DMX desk.
The FX (Effects) menu introduced on June 1, 2018 provides access to popular effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. When on the desired effect, there are several pre-sets as well as control parameters that can be altered. For example, in the Lightning effect there is a "Storm" and "Frankenstein" preset, but it is possible to change Rate to provide additional variation.
In the colour menu, the Kelvin range travels from 2500K tungsten to 9900K daylight, and Kino Flo has set up a fourth channel called Gel. The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapour, mercury vapour and over 100 well-known lighting gels. In addition, there is also a fifth channel called Hue Angle and sixth channel, Saturation. These two channels behave similar to a traditional colour wheel, where you have white light in the center, and the Hue angle determines the colour along a 360-degree range, and Saturation determines how much colour is applied. The second colour menu provides individual red, green, blue (RGB) control. The RGB menu is a great way to work with apps with predetermined RGB presets or colour wheels.
For further product information, you can visit the KinoFlo website here.
