Kino Flo FreeStyle/GT 41 LED DMX Kit and Travel Case

Special Order
This product is either directly despatched from our supplier or produced to order. Delivery usually takes at least 4 weeks. Order today and no payment will be taken until the item is in stock and ready to be despatched. Full details »
Please note:

This product is fitted with an EU/US plug
This product is sold for professional usage in studios and on location. It is not intended for domestic use.

£4,249.00

1x Kino Flo FreeStyle/GT 41 LED DMX Kit and Travel Case Sorry, there are no more available.

Please Login or Register to add to your Wish List.
Back to top
The Kino Flo FreeStyle 41 LED light is known for its >96 white light, full hue and saturation colour, cinema gel choices, and RGB chromatic selection via the AC/DC FreeStyle 150Watt controller. It features a quick-release feature to remove the LED panel from the fixture, cutting the weight nearly in half and creating a smaller form factor for better rigging flexibility.

Main Features: Kino Flo FreeStyle/GT 41 LED DMX Kit and Travel Case (KIT-F41TU)

  • Kelvin presets
  • Dial-in colour temperature control between 2700K-6500K
  • Extended colour palette from 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • RGB control
  • FX Control
  • Works with Apps with predetermined RGB presets or colour wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No colour shift while dimming
  • Colour-correct with high colour rendering index (CRI 95)
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC (FreeStyle 21)
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate

Kino Flo Lighting Overview | Compare the Diva, Freestyle, & Celeb LED Lights

FreeStyle LED Design:

  • Remote fixture with built-in barndoors
  • Removable LED panel with center mount and molded corner mounts
  • Fixture includes removable 90° Honeycomb Louver
  • Honeycomb louver also available in 60° as accessory
  • Removable Center Mount
  • KinoGrip Center Mount
  • Lightweight, slim profile
  • Mounts to stand, light enough to be hand-held
  • Controller mounts onto fixture or operates remotely with extension cable

Freestyle Menu:

White Menu

Those working with "white light" can use the White menu, which provides access to Dimming, Kelvin and Green/Magenta control channels. Kelvin range is from 2700K tungsten to 6500K daylight.

Colour Menu 1

In the first colour menu, the Kelvin range is from 2500K to 9900K, with three additional channels: Gel, Hue Angle, and Saturation. The Gel channel includes Kino Flo presets such as blue and green screen and over 100 well-known lighting gels.

Colour Menu 2

The RGB colour menu gives individual control of red, green and blue LED’s. The RGB mode is a great way to work with apps with predetermined RGB presets or colour wheels. RGB menu is also a great feature to dial in specific gel RGB values or when controlling colors from a DMX desk.

Special Effects Menu

The FX (Effects) menu provides access to popular effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. When on the desired effect, there are several pre-sets as well as control parameters that can be altered. For example, in the Lightning effect there is a "Storm" and "Frankenstein" preset, but it is possible to change Rate to provide additional variation.

Design improvements

For additional versatility, the FreeStyle LED panel can be easily removed from the housing and mounted onto a stand. The Gaffer Tray accessory allows further flexibility with its slim profile and centre mount and screw points.

FreeStyle 151 LED DMX Controller

The controller comes with standard DMX, wireless DMX (Lumen Radio), universal voltage input 100-240VAC and 24VDC. It can be mounted to the fixture or run remotely with a 25ft extension cable.

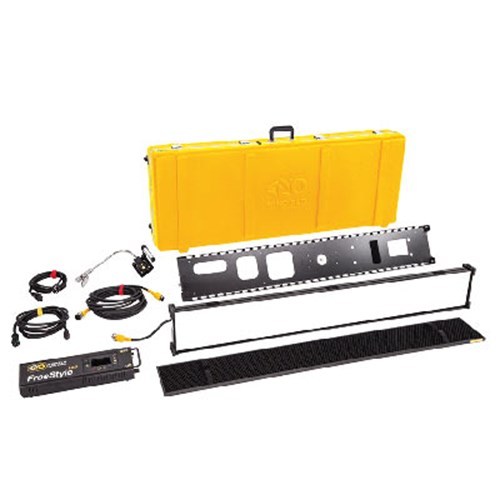

Contents:

  • 1x FreeStyle/GT 41 LED Fixture
  • 1x FreeStyle 151 LED DMX Controller
  • 1x MTP-BG41 Mount w/ Baby Receiver (16mm)
  • 1x Extension, 25ft
  • 1x Louver, 90°
  • 1x Travel Case

Dimensions: 54.5 x 21 x 9" (138.5 x 53.5 x 23cm)
Weight: 46 lb (20.9kg)

Kino Flo FreeStyle - How to Remove the LED Panel from the Housing

Back to top

Product Specification

Colour Temperature (k) 2500-9900K
No. of heads 1
Power source 100 - 240VAC, or 24VDC
Size 125.7 x 19.1 x 6.4
Weight (g) 5.7
