Product Code: 1628503

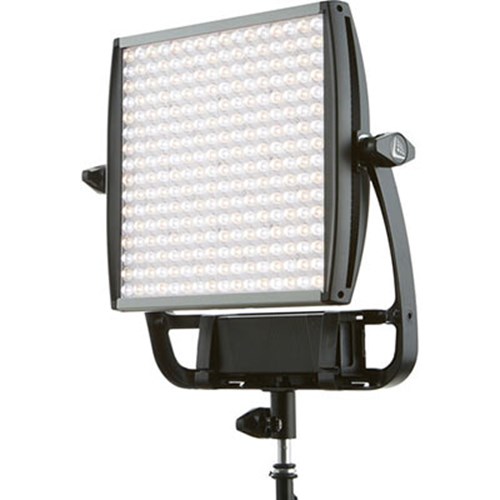

Litepanels Astra 3X Bi-Color LED Panel
Spread cost over 12, 24 or 36 months
>
Pay in 3 interest free payments
>
Get this for even less with trade-in
>
The Astra 3X Bi-Color LED Panel is 3x the brightness of the original Bi-Color 1x1. As in previous versions of the 1x1 form, the Astra has variable tungsten to daylight colour temperature with negligible colour shift and 0-100% dimming. It has high CRI and increased brightness due to tightly-binned LEDs and fine-tuned Total Internal Reflection optics, resulting in a longer throw over a wider field.
Key Features: Litepanels Astra 3X Bi-Color LED Panel
- Variable Tungsten to Daylight Balance
- 345 fc / 3714 lux @ 5.0' at 5600K
- Passive Cooling
- Optional DMX Module, TIR Optics,
- 100-240 VAC with Included AC Adapter
- 13-24 VDC with Optional Battery
- Optional Gold Mount and V-Mount Plates
- High CRI: Daylight 95, Tungsten
- No noticeable color shift throughout the entire range
- Flicker-free at any frame rate or shutter angle
Specifications
- Material: Aluminium
- Light Source: LED
- Colour Range: Approximately 3200-5600K
- CRI: Daylight 95, Tungsten 98
- Beam angle: 46°
- Dimming: 0-100%
- Fan Cooled: No, passive cooling
- Photometrics:
- Daylight: 345 fc / 3714 lux @ 5.0' (1.5 m)
- Tungsten: 301 fc / 3241 lux @5.0' (1.5 m)
- Operating Voltage: 100-240 VAC 50/60 Hz with included AC adapter, 13-24 VDC with optional battery
- Power Draw: 55 W
- DMX: Yes, with optional adapter
- Power Connector: 3-Pin XLR
- Mount: Yoke with 16 mm (5/8") receiver
- Dimensions (W x H x D): 45 x 41.4 x 13.4 cm (17.7 x 16.3 x 5.3")
- Weight: 3.2 kg (7.0 lb)
Product Specification
| AC Input Power | 100-240AC; DC input 13V to 24V |
| Battery Plate | V-Mount |
| Beam Angle | 46 |
| Colour Accuracy Standard: CRI | 95+ |
| Colour Accuracy Standard: TLCI | 98+ |
| Colour Temperature [k] | 3200-5600K Bi-Colour |
| Cooling System | Passive or active cooling for silent operation |
| Dimming | 0.1 - 100% |
| Included Accessories | Astra 3X Bi-Color Fixture, Standard Yoke, Power Supply, US & EU Power Cables |
| Power Source | 13-24VDC 120-240VAC |
| Remote Control Type | Wireless DMX (LumenRadio) Module / Wired DMX Modules (RJ-45 and XLR5) / Bluetooth Module |
| Size [cm] | H41.3 x W45 x D13.4 cm |
| Weight [g] | 3200.00 |
| Manufacturers Link | Lite Panels |
