Product Code: 1628502

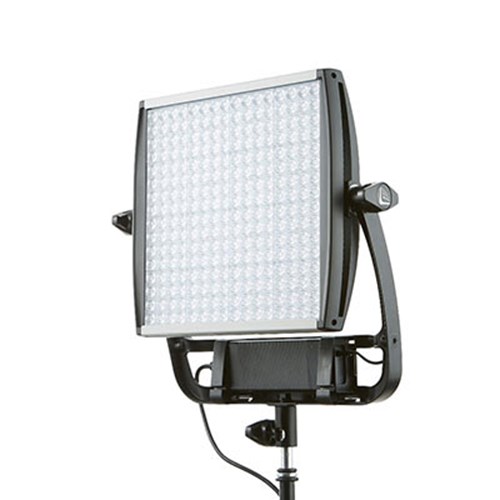

Litepanels Astra 3X Daylight LED Panel
Spread cost over 12, 24 or 36 months
>
Pay in 3 interest free payments
>
Get this for even less with trade-in
>
The Astra 3X Daylight LED Panel offers 3x the brightness compared to the original Daylight 1x1. It boasts a stable daylight colour balance, and 0-100% dimming with negligible colour shift. The improvements are evident in its high CRI and increased brightness due to the use of tightly-binned LEDs and fine-tuned Total Internal Reflection optics, resulting in a longer throw over a wider field.
Key Features: Litepanels Astra 3X Daylight LED Panel
- 3x Brighter than Original 1x1
- Dual Cooling Modes
- Approximately 5,600K
- Optional DMX Module
- 100-240 VAC with Included AC Adapter
- 13-24 VDC with Optional Battery
- Optional Gold Mount and V-Mount Plates
- TIR Optics, High CRI
- No noticeable colour shift throughout the entire range
- Flicker-free at any frame rate or shutter angle
Specifications
- Material: Aluminium
- Light Source: LED
- Colour Range: Approximately 5600K
- CRI: 95
- Beam Angle: 46°
- Photometrics:
- 364 fc / 3922 lux @ 1.5 m (5.0')
- 91 fc / 1653 lux @ 3.0 m (10')
- 41 fc / 436 lux @ 4.6 m (15')
- Dimming: 0-100%
- Fan Cooled: Ultra-quiet active cooling mode or fan off
- Operating Voltage: 100-240 VAC 50/60 Hz with included AC adapter, 13-24 VDC with optional battery
- Power Draw: 55
- DMX: Yes, with optional adapter
- Power Connector: 3-Pin XLR
- Mount: Yoke with 16 mm (5/8") receiver
- Dimensions (W x H x D): 45 x 41.4 x 13.4 cm (17.7 x 16.3 x 5.3")
- Weight: 3.2 kg (7.0 lb)
Product Specification
| AC Input Power | 100 ~ 240V 50/60Hz |
| Battery Plate | V-Mount |
| Beam Angle | 46 |
| Colour Accuracy Standard: CRI | 95+ |
| Colour Accuracy Standard: TLCI | 95+ |
| Colour Temperature [k] | 5600K Daylight |
| Cooling System | Passive Cooling and Active Cooling |
| Dimming | 0 - 100% |
| DMX Connection | Yes |
| Equiv Output[W] | 55.0 |
| Included Accessories | Astra 3x Daylight Fixture, Standard Yoke, Power Supply, US and EU Power Cables |
| Remote Control Type | Wireless DMX (LumenRadio) Module / Wired DMX Modules (RJ-45 and XLR5) / Bluetooth Module |
| Size [cm] | H41.3 x W45 x D13.4 cm |
| Weight [g] | 3200.00 |
| Manufacturers Link | Lite Panels |
