Product Code: 1628500

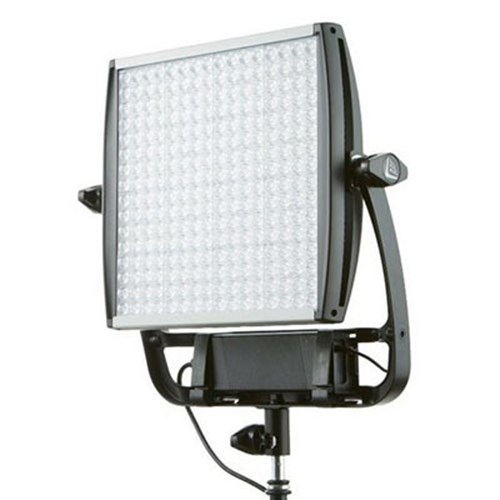

Litepanels Astra 6X Daylight LED Panel
Spread cost over 12, 24 or 36 months
>
Pay in 3 interest free payments
>
Get this for even less with trade-in
>
The Litepanels Astra 6X Daylight LED Panel is designed with select premium quality, high CRI, surface-mount LEDs and paired with custom optics. The Astra 6X is 50% brighter than the first generation Astra and 6 times brighter than the original 1x1, giving longer throw and illuminating a wider area to compete with exterior light sources or illuminate a large area with a single fixture.
Key Features: Litepanels Astra 6X Daylight LED Panel
- Premium selected LEDs paired with custom optics
- Flexible, modular concept
- Optional communications module allows the brightness, colour temperature, and cooling mode to be controlled via DMX or Bluetooth
- Optional yoke-mounted Gold Mount or V-Mount battery plates
- Field-replaceable fan module and external power supply
- Modern fixture design
- Easily identifiable and ergonomic manual controls for dimming, colour, and power status
- Aluminium I-beam core construction to provide maximum durability and superior thermal management
- Integrated smooth dimming from 100% to 0 with no colour shift
- Flicker-free at any frame rate or shutter angle
- Aluminium accessory mounting points and lens/filter rails
- End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
- Durable, industry standard 3-pin XLR locking power connector
- Optional battery plates with dual integrated cable guides
- Removable TVMP connector for flexible mounting options
- Two alternate ¼-20 mounting points
Specifications
- Beam angle (degrees): 45
- Max. power draw (Watts): 105
- Comparative output: 200 W HMI
- Optics: Custom Lens
- Remote Control: Optional (DMX or Bluetooth)
- Weight: 3.2 kg
- Power supply: 13-24VDC 120-240 VAC
- Dimensions (W x H x D): 45 x 41.3 x 13.4 cm
- Fixture type: Panel Lights
- Colour temperature: Daylight
Product Specification
| AC Input Power | 100-240AC, 13V to 24V |
| Battery Plate | V-Mount, Gold Mount |
| Beam Angle | 46 |
| Colour Accuracy Standard: CRI | 95+ |
| Colour Accuracy Standard: TLCI | 95+ |
| Colour Temperature [k] | Daylight |
| Cooling System | Passive or Active Cooling |
| Dimming | 0-100% |
| Equiv Output[W] | 105.0 |
| Power Source | 13-24VDC 120-240VAC |
| Remote Control Type | Wireless DMX (LumenRadio) Module / Wired DMX Modules (RJ-45 and XLR5) / Bluetooth Module |
| Size [cm] | H41.3 x W45 x D13.4 cm |
| Weight [g] | 3200.00 |
| Manufacturers Link | Lite Panels |
