Product Code: 1641749

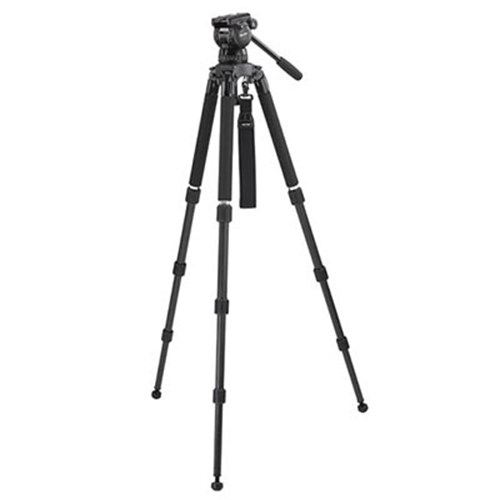

Miller CompassX CX10 3768 Solo 100 3-St CF Tripod

Special Order
This product is either directly despatched from our supplier or produced to order. Delivery usually takes at least 4 weeks. Order today and no payment will be taken until the item is in stock and ready to be despatched. Full details »
£2,878.00

1x Miller CompassX CX10 3768 Solo 100 3-St CF Tripod Sorry, there are no more available.

Please Login or Register to add to your Wish List.
Back to top
The Miller CompassX CX10 Solo 100 3-Stage carbon fibre tripod offers premium support and counter-balance options in a lightweight, professional package. Combining the 1505 Solo 100 tripod and CX10 fluid video head, users can comfortably use camera rigs that weigh up to 12kg, making it ideal for professional and broadcast usage, where larger cameras with expansive rigs are required.

Key Features: Miller CompassX CX18 3790 Solo 100 3-Stage CF Tripod

  • Ideal for professional and broadcast use: This tripod offers reliable stability for users with high-capacity tripod needs. Capable of holding up to 12kg the CompassX CX10 Solo 100 tripod is ideally suited to professional and broadcast use, where camera rigs are often far heavier due to the accessories attached to the camera
  • Lightweight frame: The tripod’s carbon fibre frame keeps its weight to just 6kg with the head attached, making it almost half the weight of other tripods with similar maximum payloads, and offering an incredible stiffness to weight ratio
  • CB Plus™ counterbalance technology: The CX10 head features Miller’s innovative CB Plus counterbalance technology, allowing users to precisely configure the balance of their rigs. With 16 positions of counterbalance to choose from, there’s a setting for every camera rig configuration
  • Innovative leg angle control: Miller have eliminated the need for a leg spreader thanks to their innovative leg angle control, which uses a safety lock for stability while also ensuring quick and easy setup
  • Premium fluid pan and tilt drag controls: The CX10 head features 5+0 selectable positions of fluid pan and tilt drag control, which is adjustable via a radial ring on the ball to the bottom of the head

IBC Show 2017 - Miller CompassX Fluid Head Series

Additional features: CX10 Fluid Head

  • Ergonomically located CB Plus switch
  • Illuminated bubble level
  • Side mounting point for viewfinders
  • 60mm balance travel camera plate with ¼” + pin, 1/4” and 3/8” screws

Additional features: Solo 100 3-Stage CF Tripod

  • Integrated 100mm bowl
  • Neoprene leg protection
  • 3-stage rapid leg lock extension
  • Air Cell carry strap
  • Leg spike with wind-down rubber feel

Specifications:

  • Payload range: 0-12kg
  • Weight: 6kg
  • Height range: 37.3 x 202.3cm
  • Transport length: 90cm
  • Counterbalance positions: 16 (15+0)
  • Pan tilt drag:5 selectable fluid drag positions
  • Pan tilt locks:Positive lock calliper brake system
  • Tilt range: +90 / -75°
  • Pan range: 360°
  • Camera platform Quick release / side load camera plate
  • Sliding range: 60mm
  • Mounting base: 100mm ball levelling
  • Height above bowl: 150mm
  • Illuminated controls: Bubble level
  • Pan handle: Fixed length 390mm
  • Temperature range: -40~+65°C
  • Leg extension: 3-stage telescopic
  • Leg material: Carbon fibre

What’s in the box:

  • CX10 fluid head (1096)
  • Solo 100 3-stage tripod – carbon fibre (1505)
  • Pan handle –fixed clamp (679)
  • Solo shoulder strap – Aircell (1520)
  • ArrowX soft case 2-stage (3502)
Back to top

Product Specification

Closed Length 90
Colour Black
Included Accessories CX10 fluid head (1090), Toggle 2-stage alloy tripod (402), Above ground spreader (508), Pan handle - fixed with clamp (679), Shoulder strap (554), Rubber feet - set of 3 (550), Softcase 2-stage (3514)
Leg sections 3
Max height 202.3
Max Load 12000
Min height 37.3
Range CompassX 10
Weight (g) 6000
Manufacturer Link Miller
Back to top
Back to top
Back to top
Product Code: 1641749-wex Manufacturers Part Number: 3768
