Product Code: 1641741

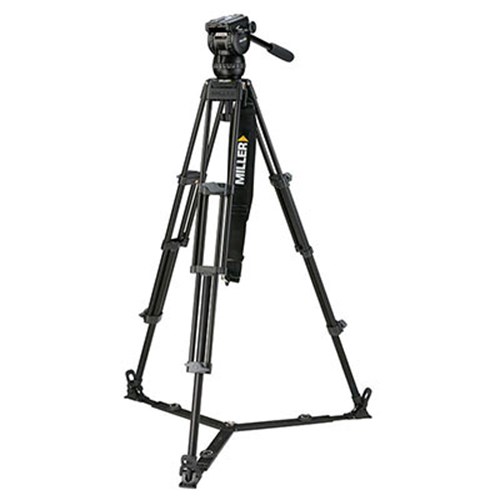

Miller CompassX CX8 3736 Toggle 2-St Tripod

Special Order
This product is either directly despatched from our supplier or produced to order. Delivery usually takes at least 4 weeks. Order today and no payment will be taken until the item is in stock and ready to be despatched. Full details »

1x Miller CompassX CX8 3736 Toggle 2-St Tripod Sorry, there are no more available.

Please Login or Register to add to your Wish List.
Back to top
Designed to meet the needs of creative professionals, the Miller CompassX CX8 3736 Toggle 2-Stage Tripod system was built with speed, balance and strength in mind. The CX fluid head offers a 12kg payload and CB Plus technology, providing 16 positions of counterbalance and 3+0 pan-and-tilt drag positions. The alloy legs are extendable to 174cm and supported by the on-ground spreader for maximum stability.

Key Features: Miller CompassX CX8 3736 Toggle 2-St Tripod

  • Ideal for professional and broadcast use: This tripod offers reliable stability for users with high-capacity tripod needs. Capable of holding up to 25kg the CompassX CX8 Toggle tripod is ideally suited to professional and broadcast use, where camera rigs are often far heavier due to the accessories attached to the camera
  • Lightweight frame: The tripod’s alloy frame keeps its weight to just 3.0kg with the head attached, making it almost half the weight of other tripods with similar maximum payloads, and offering an incredible stiffness to weight ratio
  • CB Plus™ counterbalance technology: The CX8 head features Miller’s innovative CB Plus counterbalance technology, allowing users to precisely configure the balance of their rigs. With 16 positions of counterbalance to choose from, there’s a setting for every camera rig configuration
  • Premium fluid pan and tilt drag controls: The CX8 head features 5+0 selectable positions of fluid pan and tilt drag control, which is adjustable via a radial ring on the ball to the bottom of the head
  • IBC Show 2017 - Miller CompassX Fluid Head Series

    Key Features: Miller Toggle 75 2 Stage Alloy Tripod (420G)

    • 75mm ball levelling
    • 2-stage fast toggle adjustment legs
    • Durable black anodised alloy tubing
    • Flip out transport clips
    • Integrated stainless steel spikes
    • Stay flat rubber feet (optional)
    • Comes with on ground spreader and 2-stage tripod bag
    • 3 year warranty

    Key Features: CompassX 8 Fluid Head (1093)

    • Compact, uncompromised performance
    • Perfect for payloads to 0-12kg (26.4bs)
    • 15+0 CB Plus selectable counterbalance positions
    • Ergonomically located CB Plus switch
    • 5+0 selectable positions of fluid pan and tilt drag
    • Positive selection radial ring controls
    • Illuminated bubble level
    • Precise floating pan-tilt calliper locks ensure bounce free on-off performance
    • Side loading, 60mm balance travel camera plate with 1/4" + pin, 1/4" and 3/8" screws
    • Robust construction for rugged outdoor shooting conditions
    • Side mounting point for viewfinders and accessories
    • Optional second pan handle mount
    • 3 year warranty


    • Payload Range: 0-12.0 kg (0-26.4lbs)
    • Weight: 6.8kg (14.9lbs)
    • Height Range: 570-1740mm (22.4-68.5")
    • Transport Length: 870mm (34.3")
    • Counterbalance Positions: 16 selectable positions (15+0)
    • Pan Tilt Drag: 5 selectable fluid drag positions + 0
    • Pan Tilt Locks: Positive lock calliper brake system
    • Tilt Range: + 90°/ -75°
    • Pan Range: 360°
    • Camera Platform: Quick release, side load camera plate
    • Sliding Range: 60mm (2.4")
    • Mounting Base: Ø75mm (2.9") ball levelling
    • Height Above Bowl: 167mm (6.6")
    • Illuminated Controls: Bubble level
    • Pan Handle: Fixed length 390mm (15.4")
    • Temperature Range: -40° to +65°C (-40° to +149°F)
    • Leg Extension: 2-stage
    • Lock Type: Toggle
    • Leg Material: Alloy

    Kit contents:

    • 1093 - CX8 fluid head
    • 420G - Toggle 75 2-stage tripod (alloy)
    • 411 - On ground spreader
    • 679 - Pan handle - fixed with clamp
    • 554 - Shoulder strap (padded)
    • 3514 - Softcase 2-stage
    Back to top

    Product Specification

    Closed Length 87
    Colour Black
    Included Accessories CX10 fluid head (1093), Toggle 75 2-stage alloy tripod, (420G), On ground speader (411), Pan handle - fixed clamp (679), Shoulder strap (554), Softcase 2-stage (3514)
    Leg sections 2
    Max height 174
    Max Load 12000
    Min height 57
    Primary material Alloy
    Range CompassX 8
    Weight (g) 6800
    Manufacturer Link Miller
    Back to top
    Back to top
    Back to top
    Product Code: 1641741-wex Manufacturers Part Number: 3736
