Nagra Seven
Product Code: 1636608

Nagra Seven

We no longer sell this product and will not be receiving any new stock. Check below for availability of second-hand units.

Condition Availability
New Discontinued - we can no longer source new stock of this product
Loading Alternatives
Used: {{condition.ConditionCode}} {{condition.Quantity}} x In Stock - from {{condition.LowestPrice | currency:"£"}} View {{condition.ConditionCode}} versions of the Nagra Seven »
View all used versions of the Nagra Seven currently available »
Back to top

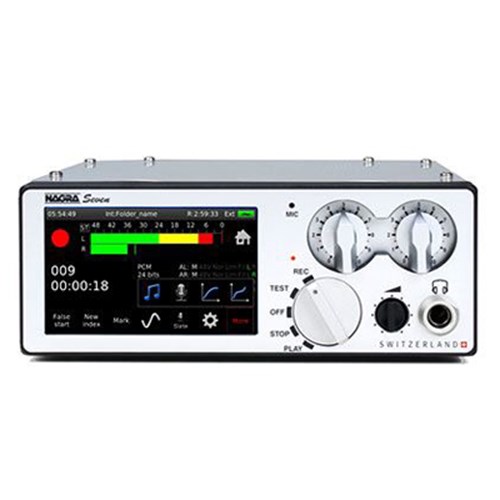

A successor to the Nagra LB, ARES-C, ARES-BB+, and Nagra V, the Seven Nagra Seven is a versatile, portable professional audio recorder. Built for extremely high performance, the Seven's additional ISDN or SMPTE/EBU time code boards make it ideal for the professional film or TV markets*. *Please call us for further information on these additional variants.

Key Features: Nagra Seven

  • Dual channel audio recording: The Nagra Seven features 2 discreet audio channels
  • Versatile: Record either 16 or 24-bit audio up to 192kHz, featuring a user programmable pre-recording buffer, and with a host of additional options, the Seven caters for almost all usages
  • High capacity: Record directly to 16GB of internal Flash memory, or use removeable SD Flash media
  • Additional extras*: ISDN, SMPTE / EBU, WiFi, and 3G are all additional extras - *PLEASE NOTE: As standard, we sell this product without these features. If you are interested in a model that has any of these additional capabilities, please contact us directly for pricing and availability


  • Recording:
    • Internal storage: Micro SD Flash memory card
    • Removable media: SD Flash memory card
    • Disk format: FAT 16 / 32
    • Recording Method: Linear digital PCM, optional: MPEG 1 layer II
    • File type: 16 / 24 bit Broadcast Wave File BWF (WAV)
    • A/D & D/A: 24 Bit Sigma Delta
    • Bit-rates: 32 kbits/s up to 384 kbits/sec
    • Tracks: 2 individual
    • Sampling Rate: 44.1, 48 kHz, 88.2, 96, 176.4 and 192kHz
    • Recording capacity: 1hr at 24 bit 48 kHz per GB of memory
    • Pre-recording buffer: Programmable
    • Display: Colour LCD touchscreen
    • Level meters: On colour display
  • Inputs:
    • Digital input: XLR 3-pole / AES 42
    • Analogue inputs: 2 x XLR Microphone (Dynamic, +48V Phantom) / line
    • Mic. input sensitivity: 2.8, 10 and 40 mV/Pa selectable
    • Mic. input noise: Uin < 1µV (2.8 and 10 mV) @ 220O Uin < 1.6µV (40 mV)
    • Limiters: On microphone inputs
    • Line input sensitivity: Adjustable from -6 dBm up to +24 dBm for 0 dBFS recording
    • THD at 1 kHz: 2.8mV Mic <0.2%, 10mv mic><0.1%, line><0.1% (measured on aes out)>
    • Frequency response: Mic, 10Hz - 75 kHz (+0 - 3dB), Line 10 Hz - 90 kHz (+0 -1dB) (measured on AES out)
    • Signal-to-noise ratio: >110 dB ASA "A"
    • Input level adj. range: 42 dB Mic and from -6 to +24 dB Line
    • Input filters: LFA
    • Internal microphone: On the front panel
    • Crosstalk: Mic >70dB : Line > 110dB
  • Outputs:
    • Analogue line output: XLR 4.4V max (+15 dBm)
    • Crosstalk: >110 dB
    • Signal-to-noise ratio: >100 dB
    • Digital output: XLR AES-3 (24 bit or 16 bit)
    • THD+N: <0.004%>
    • Frequency response: 10 Hz - 75 kHz (+0-3dB)
    • Headphones: Stereo 6.3mm (¼") Jack 50 O
    • Internal speaker: 0.3W
  • Other:
    • USB: Micro AB connector
    • M/S Decoder: Switchable
    • Ethernet: RJ 45
  • General:
    • Dimensions: 165 x 175 x 65mm (W x H x D) (Incl. battery box)
    • Weight: 800g (Incl. battery pack)
    • Power supply: External 15V
    • Power Consumption: Approximately 5W
    • Charge time: Approximately 3 hours
    • Battery life: >5 hours
    • Relative humidity: From 10% to 99% (non-condensing)
  Back to top

Product Specification

Channels 2-Channel
Dimensions H175 x W165 x D65mm
Frequency response 10Hz - 90kHz
Included Accessories External 15V, 1x Nagra Seven
Inputs 2 XLR Microphone
Phantom Power Yes
Recording Formats WAV, 16/24bit/44.1/48/88.2/96/176.4/192kHz
Size H175 x W165 x D65mm
Storage Capacity Internal 16GB Memory
Type Audio Recorder
Weight 800g
Manufacturers Link Nagra
