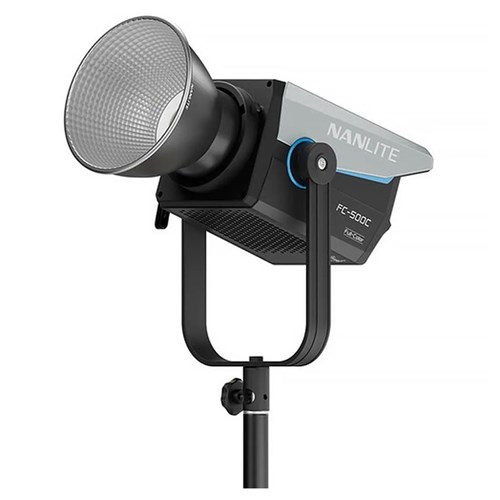

NanLite FC-500C LED RGBW Spot Light
The Nanlite FC-500C LED RGBW Spot Light is a 520W full-colour spotlight delivering remarkable white and colour output from a compact point source. Its RGBW engine and precision mixing technology provide an even beam and accurate colour across a 2700-7500K range with green/magenta adjustment. Lightweight at 3.9kg and compatible with Bowens accessories, it delivers accuracy and creative control for photography, video, and production.
NanLite FC-500C LED RGBW Spot Light Key Features:
- 520W RGBW LED delivering 77,110 lux (5600K) with reflector at 1m
- Wide 2700-7500K CCT range with ±150 G/M adjustment
- High colour accuracy with CRI 95, TLCI 94 and TM-30 Rf/Rg 92/100
- Five lighting modes and 15 adjustable effects for creative lighting control
- Built-in 2.4 GHz, DMX/RDM and NANLINK App 2.0 for remote operation
- Lightweight 3.91kg head with detachable 2.24kg AC power supply
- Standard Bowens and umbrella mounts for broad accessory compatibility
- Four-mode cooling system (Smart, High, Low, Off) for noise control
- Supports DC 48 V input and V-mount battery operation via FC PowerController
- Includes reflector, clamp, cables, and EPP carry case for transport protection
High-output full-colour spotlight
The FC-500C combines Nanlite’s high-power RGBW LED array with optical light-mixing technology to produce 77,110 lux at 5600K and 34,630 lux in green mode at 1m with the included reflector. This point-source design enables tight beam control with reflectors or lenses and smooth, soft diffusion through modifiers such as softboxes. The RGBW system delivers both intense white output and vivid colour, offering strong creative flexibility on set.
Wide CCT range and colour accuracy
A CCT range from 2700K to 7500K, with ±150 green/magenta shift, ensures precise matching with natural light, tungsten, or other fixtures. The FC-500C achieves CRI 95, TLCI 94, TM-30 Rf 92 and Rg 100, maintaining natural tones in both still and motion capture. SSI ratings of 84 (3200K) and 71 (5600K) confirm its spectral accuracy, supporting consistent results when mixing sources or colour grading across multiple cameras.
Flexible control and creative lighting modes
Five operational modes include CCT, HSI, RGBW, Gel, and Effect, all adjustable through on-board controls or remote systems. Fifteen built-in effects, such as flash, storm, candle, and firework, can be customised for realism, making the light adaptable to studio and narrative production. Users can control settings directly on the fixture, through the NANLINK 2.0 App, via DMX/RDM for broadcast rigs, or using the optional FC PowerController for wired adjustment.
Efficient cooling and quiet operation
A redesigned 11cm fan delivers high airflow at lower speeds, keeping noise below 29 dBA in Smart mode. Four modes, Smart, High Speed, Low Speed and Off, allow users to balance output and sound for each shoot. In Smart or High-Speed modes, the fixture maintains full 100% output, while Low Speed limits to 50% and Off to 8%, supporting sound-sensitive filming or interviews.
Lightweight design and accessory compatibility
With the lamp head weighing 3.91kg, the FC-500C is easy to position for overhead or mobile setups. The standard Bowens mount accepts Nanlite’s FL-20G Fresnel Lens and a wide range of third-party modifiers, while an umbrella slot adds further diffusion options. The separate 2.24kg power supply keeps the head compact and stable when rigged. A high-density EPP carry case with lockable closures protects the light and accessories during transport.
Versatile power and firmware support
The NanLite FC-500C LED RGBW Spot Light runs on AC 100-240 V or DC 48 V input, with optional battery operation possible via the FC PowerController for remote or outdoor setups. This controller also functions as a dual V-mount battery charger and remote interface up to 3m from the lamp head. A USB port on the fixture enables firmware updates via a USB drive, ensuring compatibility and continued feature refinement.
What’s in the box?
- 1 x FC-500C
- 1 x Power Supply
- 1 x Reflector
- 1 x Quick Release Clamp
- 1 x AC Power Cable 6M
- 1 x DC Connection Cable 3M
- 1 x User Manual
- 1 x Carry Case
FAQs:
What level of output does the Nanlite FC-500C provide?
At 1m with the included reflector, the FC-500C produces 77,110 lux at 5600K and 34,630 lux in green mode. Its 520W power rating ensures strong illumination for studio setups and location work.
Can the NanLite FC-500C LED RGBW Spot Light be powered by batteries?
Yes. When paired with the optional FC PowerController, it can run from one or two 14.4-14.8 V or 26V V-mount batteries. This setup also charges the batteries and extends lighting use where AC mains is unavailable.
How can I control the FC-500C remotely?
Users can adjust settings on the fixture via the FC PowerController up to 3 m away, the NANLINK App 2.0 on a smart device, or DMX/RDM for multi-light setups. A 2.4 GHz wireless module also supports the Nanlite remote controller.
Does the FC-500C support common lighting accessories?
Yes. It features a standard Bowens mount and umbrella mount, ensuring compatibility with Nanlite and third-party modifiers such as softboxes, barn doors and Fresnel lenses.
What is included with the Nanlite FC-500C?
The package includes the FC-500C lamp head, power supply, reflector, quick-release clamp, AC cable (6m), DC cable (3m), user manual, and EPP carry case for secure storage and transport.
Back to topProduct Specification
| AC Input Power | AC100-240V 50/60Hz |
| Accessory Mount | Bowens |
| Beam Angle | 65° |
| Colour Accuracy Standard: CRI | 95 |
| Colour Accuracy Standard: TLCI | 94 |
| Colour Temperature [k] | 2700-7500(G/M±150) |
| Cooling System | 11cm Diameter Fan |
| Dimming | 0-100%，by 0.1% increment |
| Equiv Output[W] | 520.0 |
| Included Accessories | Power Supply, Reflector, Quick Release Clamp, AC Power Cable 6M, DC Connection Cable 3M, User Manual, Carry Case |
| Photometrics: Lux @ 1M | 77,110 lux (5600K) |
| Remote Control Type | Remote Controller, NANLINK APP, DMX/RDM, FC PowerController |
| Size [cm] | Light Fixture (without COB protective cap): 37.32 x 24.64 x 14.9, Power Supply (without safety strap)：11.3 x 9.1 x 28.18 |
| Weight [g] | 3910.00 |
