NanLite PavoSlim 240CL LED RGBWW Panel

The NanLite PavoSlim 240CL LED RGBWW Panel is a 260W full-colour light engineered for brightness, flexibility, and portability. Measuring just 2.35cm thick, it produces up to 21,030 lux at 1m in a fixture weighing only 3.62kg. It delivers four times the output of similar panels, while its metal housing ensures efficient heat dissipation. Designed for studios and compact sets, it installs in under a minute with wireless control options for remote operation.

NanLite PavoSlim 240CL LED RGBWW Panel Key Features:

• 260W RGBWW LED panel producing 21,030 lux at 5600K, 1m distance
• Slim 2.35cm profile and 3.62kg aluminium alloy housing
• Four times higher output than comparable-sized panels
• CCT range 2700-7500K with green/magenta adjustment ±150
• High colour accuracy: CRI 96, TLCI 97, TM-30 Rf 94, Rg 100
• Wireless control via NanLink App, remote controller, or LumenRadio CRMX
• Rapid 1-minute setup with pre-mounted softbox and quick-release system
• DMX/RDM compatibility for professional lighting integration
• Multiple power options: AC, DC, and V-mount battery with hot-swap support
• Supplied with control unit, softbox, diffusers, eggcrate, and carrying case

Slim design with strong output

The NanLite PavoSlim 240CL LED RGBWW Panel combines an ultra-thin 2.35cm body with a 260W power rating that achieves up to 21,030 lux at 1m when set to 5600K. Each LED sits behind a precision optical lens that blends and focuses the light evenly, producing four times the brightness of comparable panels in its class. The elongated 4x1 layout offers creative flexibility by delivering a softer spread along its long side and a harder beam across the short side, making it practical for key, fill or rim lighting in studio or on-location setups.

Built for quick and practical setup

Every component of the PavoSlim 240CL is engineered for speed and convenience. The fixture mounts in under a minute using its integrated softbox and quick-release clamp system. A universal and baby pin holder on the rear panel allows flexible tilt adjustment, while the control unit attaches securely to a stand or truss using the supplied clamp. The pre-installed softbox attaches with hook-and-loop fasteners, and the eggcrate fits via an elastic strap, enabling rapid transitions between setups without additional tools.

Reliable metal housing with advanced cooling

Constructed from lightweight aluminium alloy, the PavoSlim 240CL maintains structural strength and effective heat management in a compact form. A multi-row rear heat sink increases surface area for efficient thermal dispersion, preserving output stability during long sessions. The slim housing allows placement in confined spaces or low-ceiling environments without sacrificing output or control, offering a professional-grade build that supports continuous use on set.

Full colour accuracy and extended control

NanLite’s RGBWW system provides a CCT range from 2700K to 7500K with ±150 green/magenta adjustment for precise matching with other light sources. The panel delivers consistent colour quality with CRI 96, TLCI 97, TM-30 Rf 94, and Rg 100. Five creative modes, CCT, HSI, RGBW, Gel, and Effects, cover a full lighting spectrum, including 36,000 hues, 151 gels, and 15 effects with adjustable parameters. These modes allow fine control over tone, saturation, and dynamics for cinematic lighting across genres from interviews to music videos.

Flexible control and power management

The PavoSlim 240CL supports on-board operation through its dual-dial control unit and 2-inch display, or remote adjustment via NanLink App, 2.4G controller, DMX/RDM, and built-in LumenRadio CRMX for wireless DMX setups. Power options include AC, DC (48V), and 14.4–26V V-mount batteries, ensuring reliable performance in studio or field use. Hot-swapping between power sources maintains uninterrupted operation, and an optional 5m DC extension cable increases reach for elevated rigs or distant placements.

Expandable system and transport protection

The PavoSlim 240CL integrates easily into larger lighting configurations. Two panels can be coupled with an optional dual-panel adapter to form a 4x2 setup for increased coverage and softer diffusion. The included carrying case features a reinforced shell and padded internal partitions that organise the fixture, control unit, and accessories while protecting them during transport. The compact and durable design makes it straightforward to carry and store between shoots.

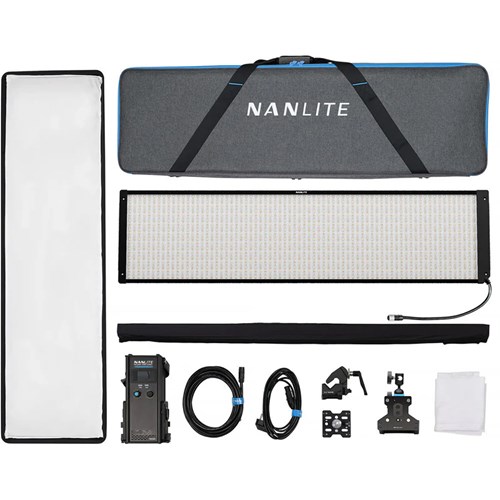

What’s in the box?

• 1 x NanLite PavoSlim 240CL LED RGBWW Panel
• 1 x Control Unit
• 1 x Universal Holder
• 1 x Baby Pin Holder
• 1 x Quick Release Clamp
• 1 x DC Connection Cable 5M
• 1 x AC Power Cable 4.5M
• 1 x Quick-release Softbox
• 2 x Diffuser (Lite Diffuser + Standard Diffuser)
• 1 x Eggcrate
• 1 x Carrying Bag
• 1 x User Manual

FAQs:

Can I control the PavoSlim 240CL without cables?

Yes. The PavoSlim 240CL includes multiple wireless control options to fit different setups. The built-in 2.4G module connects easily to the NanLink 2.0 app for intuitive lighting adjustment on mobile devices, while LumenRadio CRMX enables stable wireless DMX integration for professional multi-light rigs. A handheld remote controller is also supported for quick, direct access to brightness and colour settings without needing a phone or console connection.

How accurate is the PavoSlim 240CL’s colour reproduction?

NanLite’s RGBWW system in the PavoSlim 240CL achieves exceptional colour accuracy across a wide CCT range of 2700K to 7500K, with green/magenta fine-tuning of ±150 for precise matching to other sources. It maintains an average CRI of 96 and TLCI of 97, along with TM-30 Rf 94 and Rg 100 values, ensuring natural skin tones and faithful colour rendering on camera. This consistency makes it suitable for high-end production work where lighting accuracy is critical.

Does the PavoSlim 240CL support battery operation?

Yes. The fixture can run on 14.4-26V V-mount batteries, offering full brightness even when powered off-grid. NanLite’s efficient circuit design supports hot-swapping between AC, DC, and battery power, allowing users to change power sources without interrupting a shoot. This flexibility makes the PavoSlim 240CL well suited to both studio use and location work where mains power may not be available.

Is a softbox included with the NanLite PavoSlim 240CL LED RGBWW Panel?

Yes. The PavoSlim 240CL includes a quick-release softbox pre-mounted to the fixture for immediate setup. The design uses hook-and-loop fasteners for fast attachment and compression storage, while the included eggcrate fits securely with an elastic strap. Two diffusers are provided, Lite and Standard, offering adjustable softness levels. Everything packs neatly into the supplied reinforced carrying case, which also has space for the control unit and cables.
