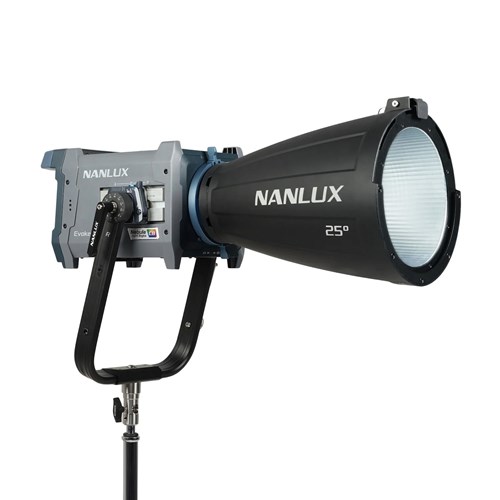

NANLUX Evoke 600C LED Full-Colour Spot Light with Trolley Case
The NANLUX Evoke 600C LED Full-Colour Spot Light with Trolley Case is a 600W light built for professional film and broadcast work. Using the Nebula C8 light engine, it delivers high output with a wide 1,000K to 20,000K colour range and clean skin tones. The all-in-one magnesium body keeps setup simple, while IP66 protection and quiet cooling suit demanding indoor and outdoor productions.
NANLUX Evoke 600C LED Full-Colour Spot Light with Trolley Case Key Features:
- 600W full-colour LED spotlight built for film and broadcast production
- Nebula C8 light engine delivers clean skin tones and saturated colour
- Wide 1,000K-20,000K CCT range with green and magenta adjustment
- High output reaches 20,820 lux at 3m with 25° reflector
- All-in-one magnesium alloy body reduces cabling and setup time
- IP66 rating handles rain, dust and harsh location conditions
- Smooth 0.1% dimming supports precise fades and cues
- Multiple control options, including DMX, CRMX and NANLINK App
- Quiet cooling system stays suitable for sound-sensitive shoots
- BE mount supports motorised Fresnels and secure modifier locking
- Includes a durable trolley case with a retractable handle
FAQs:
How powerful is the Evoke 600C compared to bi-colour or daylight fixtures?
The Evoke 600C delivers output on par with many 600W-class daylight LEDs, reaching over 20,000 lux at 3 metres with the supplied 25-degree reflector. This level of output makes it usable as a key light, through diffusion, or bounced on larger sets. Unlike bi-colour units, it maintains high intensity even when working in saturated colours.
Is the Evoke 600C practical for outdoor and location work?
Yes. The light is rated IP66, so it can work in rain, dust, and changing weather without additional housing. The all-in-one design means there is no separate ballast to manage, which speeds up rigging and reduces clutter on location. With the lamp head weighing just over 7kg, it remains manageable for stands, cranes, or vehicle-mounted rigs.
How quiet is the cooling system during filming?
In Smart mode, the fan noise averages around 28 dB(A), which is low enough for most dialogue and interview setups. Users can select other fan modes to prioritise silence or maximum cooling. This flexibility helps the light stay stable during long takes without drawing attention on set.
What control methods are available on set?
The Evoke 600C supports on-board control, wired DMX/RDM, LumenRadio CRMX, Art-Net/sACN, and the NANLINK App. The rear panel includes a clear display with physical controls for quick adjustments when working close to the lamp. NFC pairing also speeds up wireless setup when connecting phones or tablets.
Can I use my existing modifiers with the Evoke 600C?
The light uses the NANLUX BE mount with a PosiTight locking system for secure attachment of reflectors and Fresnels, including motorised options. With adapters, it also works with Bowens and NL mount modifiers. This makes it easier to integrate into existing lighting kits without replacing accessories.
Can the light be powered from batteries or DC sources?
The Evoke 600C supports DC input at 48V, allowing it to run from suitable high-capacity battery systems. This makes it workable for locations where mains power is limited or unavailable, provided the battery supply can meet the current demand. It can be powered by a V-Mount battery using the Power Station, available separately.
Product Specification
| Beam Angle | 65° |
| Colour Accuracy Standard: CRI | 98 |
| Colour Accuracy Standard: TLCI | 98 |
| Colour Temperature [k] | 1000-20000 (G/M±200) |
| Cooling System | 5 Built-in Fan Modes (Smart, Full Speed, Low Speed, Off, Pause) |
| Dimming | 0.0%-100.0%, 0.1% increment |
| Equiv Output[W] | 600.0 |
| Included Accessories | Yoke, RF-BE-25 BE Mount Reflector 25, AC Power Cable 6m, USB Flash Drive, AS-MB-2 Magnetic Base, WC-EXT Wired Controller, Connection Cable 8m, AS-MB-1 Magnetic Base, 2 x User Manual, CC-ST-EV600C Trolley Case |
| Power Source | AC100-240V/50-60Hz, 8A Max, DC48V/12.5A |
| Remote Control Type | Nanlink App, Remote Controller, DMX/RDM*, LumenRadio CRMX, Art-Net/sACN*,NFC (*via the Extension Adapter) |
| Size [cm] | 35.82 x 24.63 x 20.533mm |
| Weight [g] | 7260.00 |
