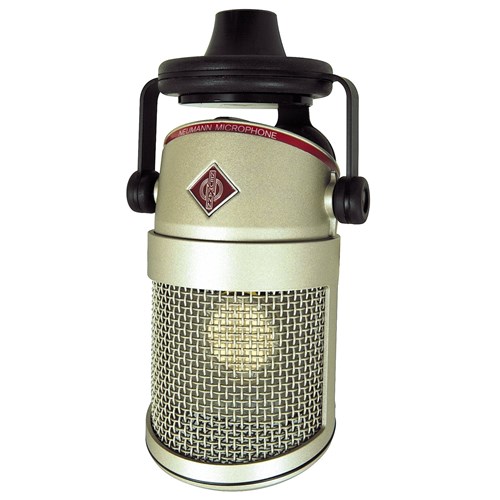

Neumann BCM 104 Microphone

The Neumann BCM 104 is a large-diaphragm, cardioid condenser microphone, ideally used for broadcasting. It can be used for in-studio recording by podcasters, radio DJs, talk show hosts, newscasters, announcers and more for any kind of speech reproduction at close range. It can be used with industry-standard microphone boom arms and features a twist-off head grille for easy maintenance.

Neumann BCM 104 Microphone Key Features:

• Can be used professionally by radio DJs, announcers, talk shows hosts, etc.
• Features a large-diaphragm, cardioid condenser capsule for low self-noise
• The twist-off head grille can easily come off for quick cleaning
• Functions optimally with industry-standard microphone boom arms
• Has an elastic mount to reduce the structure-borne noise
• The integrated pop screen protects the capsule perfectly from air blasts and plosives
• The diaphragm condenser delivers clear speech without any distortion
• The diaphragm condenser delivers clear speech without any distortion
• Capable of handling enormous sound pressure levels of up to 138 dB without distortion
• Consists of a subsonic filter to suppress frequencies below 20 Hz
• The fixed cardioid polar pattern provides excellent rejection of rearward sound
• The built-in electronic circuit works as a transformer to ensure minimal hum interference
• Offers a dynamic range of 131 dB (A-weighted)
• A thread adapter can be used to fit the microphone to different connector threads
• Consists of high-pass and pre-attenuation internal switches

Expanded Neumann BCM 104 Microphone Key Features:

Ideal for Broadcasting World

The Neumann BCM 104 is a dedicated broadcast microphone perfect for speech reproduction at close range. It is ideal for in-studio recordings and can be used by radio DJs, newscasters, announcers, talk show hosts, and broadcast announcers to convey stories. Its many different features aid in delivering a clear, direct, and noise-free sound. It is compatible with industry-standard microphone boom arms for professional use and its construction maintains a good sound quality.

Designed for the Human Voice

The fixed cardioid polar pattern of the microphone ensures excellent rejection of rearward sound to accommodate only the speaker’s voice. The specially designed large-diaphragm condenser capsule has a linear frequency response, with a gentle presence boost around 4 kHz and a slight treble lift above 10 kHz. It ensures enhanced speech intelligibility, an outstanding transient response for capturing detailed human voice at a close range. The integrated internal switch can compensate for the proximity effect and reduce the sensitivity by 14 dB.

Easy Maintenance

The microphone has a twist-off head grille on top which can be easily removed for quick cleaning. There is also an integrated screen-mesh pop filter around the capsule in a tensioned mount that can be easily removed for cleaning. This pop screen protects the capsule from air blasts and plosives, as well as the build up of unwanted particles on the diaphragm.

Stunning Sound Quality

The electronic circuit of the BCM 104 can handle enormous sound pressure levels of up to 138 dB without any distortion and delivers extremely low self-noise of around 7dB-A. It produces a balanced, transformerless output with minimal hum interference and high common-mode rejection against extraneous signals. It retains the naturally warm, open and transparent sound which is pleasant to listen to.

What's in the box?

• 1 x Neumann BCM 104 Microphone
• Limited 2-Year Warranty

FAQs:

How can the microphone be cleaned?

The integrated pop screen and the mounted head grille can be easily removed from the microphone for quick cleaning. Ethanol or isopropanol can be used to clean the microphone housing and protect it from getting soiled by human exhalations. A disposable soft cloth, a soft brush or a paper tissue should be used when cleaning. A soft brush can be lightly used to clean off the dust from the amplifier or inner assemblies, without any liquid or solvents.

What is the frequency range of the microphone?

The BCM 104 has a frequency range from 20 Hz to 20 kHz.

How can the microphone be connected to an external device?

The microphone features an analogue output connector and the XLR 3-pin can be used to connect the microphone to an external device.

Which accessories can be used with the microphone?

There are a few accessories that can be used with the microphone, such as an external pop screen, a windscreen, a swivel joint, and a power supply.

What are the two switches used for?

It has two switches located inside the microphone housing - one is to electronically compensate for the proximity effect, and the other one is a 14 dB pre-attenuation switch to adjust the sensitivity.
