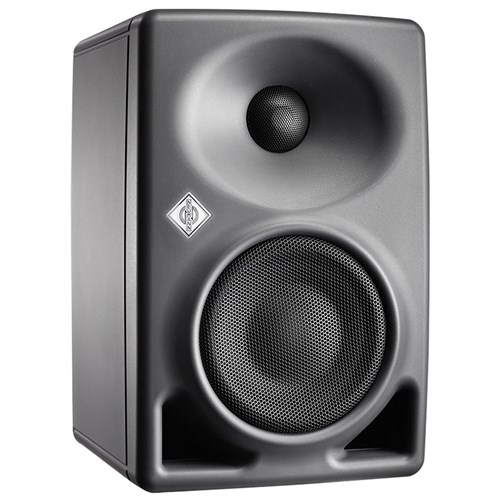

Neumann KH 80 DSP A G UK

The Neumann KH 80 DSP A G UK is a two-way active monitor for near-field monitoring and multi-channel setups in studios. This bi-amplified monitor has a DSP engine for optimised output and a Mathematical Modelled Dispersion Waveguide for a precise sound direction. It features an Acoustical Control switch at the rear to make easy adjustments to the monitor position.

Neumann KH 80 DSP A G UK Key Features:

• Features a DSP engine for optimised sound
• Mathematically dispersion delivers excellent detail in surroundings
• Compact design enables positioning of the monitor in any studio or room
• The Mathematical Modelled Dispersion Waveguide provides precise sound direction
• Has a powerful alloy fabric tweeter dome
• Used for near-field monitoring and multichannel setups
• Can be used in music and broadcast studios, and for desktop audio applications
• Utilises two amplifiers to power the woofer and the tweeter
• Offers an extensive range of optional mounting hardware
• Can be controlled using the Neumann Control app on Windows/Mac computer
• Ensures correct sound reproduction in diverse acoustical conditions
• Perfectly complemented by the KH 750 DSP subwoofer
• Includes a sandwich cone bass driver to eliminate harmonic distortions
• Delivers smooth off-axis response
• Dimmable Neumann logo displays operation status

Expanded Neumann KH 80 DSP A G UK Key Features:

Positioning Flexibility

Be it a project studio, a room corner, or an open space; the Neumann KH 80 DSP monitor offers many positioning capabilities. It produces a true and clear sound, without any disturbance. The surfaces and corners in a room can cause diffraction, interference, refraction, and reflection of the sound waves for which the rear “Acoustical Control” switch comes into play. It allows easy adjustment of the monitor (free-standing, small/medium/large desk) by guided alignment. There is an option of further precise control via the Neumann Control app and the automatic monitor alignment for room correction.

Higher Mathematics for Perfect Sound

The monitor is mathematically optimised to deliver accurate detailed sound in any surroundings. It features a pure and transparent sound reproduction with precise sound direction. Its design is based on computer simulations that calculate with a high level of accuracy. The Mathematical Modelled Dispersion Waveguide (MMD) provides the monitor with a uniquely precise sound direction to suit smaller studio environments. It is ideally used in project studios, OB vans, post-production, and mixing-mastering studios. This elliptical waveguide ensures a smooth off-axis response and is more forgiving in diverse acoustical environments.

Mounting and Connectivity

The flexibility of monitor positioning also enables an extensive range of mounting hardware. It provides more flexibility in mounting cabinets and has easy installation in multichannel setups. All connectivity options are found on the rear of the loudspeaker including electronically balanced XLR/jack combination input and RJ45 connection for IP network compatibility. Powered by a universal switched-mode power supply, this monitor has symmetrical internal signal routing for minimised noise or electromagnetic interference.

What's in the box?

• 1 x Neumann KH 80 DSP A G UK Monitor Speaker
• 1 x UK Mains Cable
• 4 x Self-adhesive Feet
• 1 x Safety Booklet
• 1 x Getting Started Guide
• Limited 1-Year Warranty

FAQs:

What do the lights on the Neumann logo mean?

The monitor has a dimmable Neumann logo to display operation status and activation of the extensive protection system. It is used for low-light conditions and emits different lights for operation status. The “white” colour displays normal operation and the “red” light is displayed for limit/clip/protection/error/shut down mute/boot mute.

What is it made from?

The loudspeaker cabinet is made from composite polycarbonate and has a painted, metallic anthracite surface finish on the front. The back of the monitor has a black colour with a metal grille protection on the woofer and the tweeter.

How can the monitor be mounted?

This lightweight monitor weighs up to 3.5 kg and offers an extensive range of mounting options. It features two M6 threaded inserts on the back panel, with a 70 mm spacing and a thread depth of 15 mm, for mounting hardware.

What is the available protection circuitry?

It has separate fast-acting thermo limiters for the woofer and the tweeter to protect the voice coils and the power amplifiers. It is highly reliable and allows the extraction of maximum performance. The amplifiers have low heat dissipation with large headroom and overheat limiting. It improves transient response and assures safety.

What is the dynamic range of the loudspeaker?

The monitor has a varied dynamic range for the woofer and the tweeter. It features a dynamic range A-D of 114 dB, a dynamic range A-D-A of 111 dB for the woofer and 112 dB for the tweeter. The dynamic range D-A of the woofer is 114 dB and that of the tweeter is 117 dB.
