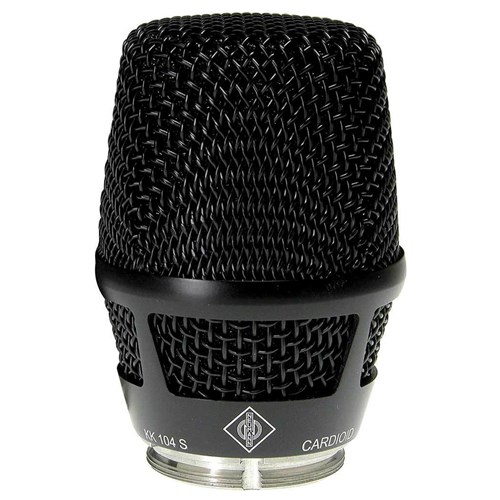

Neumann KK 104 S Microphone

Specifically designed for use with Sennheiser SKM 5000/5200 handheld transmitters, the Neumann KK 104 S is a cardioid condenser capsule. It is manufactured based on the KMS 104 microphone to deliver excellent pop protection, high feedback resistance, and enormous SPL capability. This premium-quality capsule head offers studio sound quality on stage for live applications.

Neumann KK 104 S Microphone Key Features:

• Designed exclusively for use with the Sennheiser SKM 5000/5200 handheld transmitters
• Engineered based on the Neumann KMS 104 vocal microphone
• Features a cardioid polar pattern with high feedback resistance
• The condenser capsule offers superior sound quality
• Provides a stunning studio quality on stage for live applications
• Capable of withstanding enormous sound pressure levels of up to 148 dB
• The cardioid pattern ensures high gain and is frequency-independent
• Airy top-end ensures a smooth frequency response
• Effortless intelligibility without the usual EQ boost improves the feedback resistance
• Features a fixed low-cut filter for proximity effect and clear bass
• The steel head-grille and the integrated pop screen keep moisture away from the capsule
• Suited for in-ear monitoring and conventional monitoring systems
• Delivers naturally warm, transparent and clear sound without excessive accentuation of the bass
• Cardioid pattern offers a high rejection of rearward sound

Expanded Neumann KK 104 S Microphone Key Features:

Wide Applications

The Neumann KK 104 S capsule is exclusively designed for Sennheiser wireless systems and offers outstanding sound quality for live applications. It can be used for on-stage applications, international TV events and many more. Designed for vocals and speech on stage and in other feedback-prone environments, the KK 104 S is well suited for conventional monitoring and in-ear monitoring systems. It provides Neumann sound quality to the Sennheiser SKM 5000/5200 handheld transmitters.

Studio-Quality Sound

This rugged stage microphone capsule provides excellent pop protection, high feedback resistance and enormous SPL capability. It is a condenser capsule and has brought studio sound quality to the stage with superior clarity. The cardioid polar pattern is frequency-independent and ensures high gain before feedback. It effectively minimises noise and ambience at off-axis sections of the microphone. Producing a natural, warm and transparent voice, this capsule has set high standards of wireless microphones for live applications.

Cardioid Condenser Capsule

The cardioid polar pattern feature of the capsule makes it primarily sensitive to sound at the rear section and is unidirectional. It rejects ambient sounds from the sides and rear of the microphone. Being a condenser microphone, it captures vocals and high frequencies for detailed and accurate results. Mostly known for studio use, the KK 104 S exceeds the expectations and works amazingly well with wireless systems on stage and in other feedback-prone environments.

What's in the box?

• 1 x Neumann KK 104 S Microphone Capsule
• 1 x Nylon Bag
• Limited 1-Year Warranty

FAQs:

What all can the nylon bag accommodate?

The package includes a padded nylon bag that is spacious enough to securely hold the capsule, a transmitter, battery packs, and other additional accessories.

What is the supported frequency range?

The KK 104 S has a wide frequency range of 80 Hz to 20 kHz and supports the transmitter frequency range of 450 MHz to 960 MHz.

How can it be cleaned?

The interior assembly of the capsule can be removed to clean the head grille, by loosening the 3 axial hexagonal socket screws. Soap solution or a standard dishwashing detergent can be used to clean the head grille. There is an integrated foam screen/pop screen that also comes off easily for quick cleaning.

How much does it weigh?

This capsule head weighs only 120 grams and the complete kit of capsule, transmitter and power supply weigh around 325 grams.
