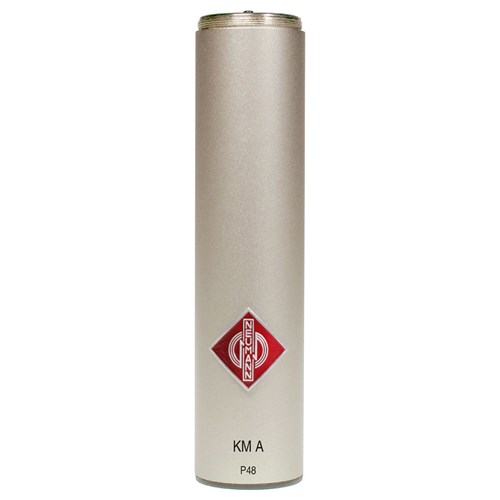

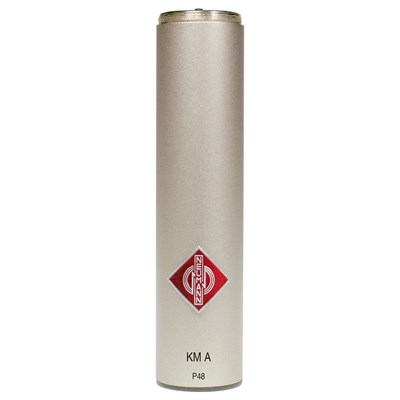

Neumann KM A nx Analog output stage

The Neumann KM A nx Analogue Output Stage is the analogue output section of the microphone that is used with Neumann KK series microphone capsules. This modular miniature microphone system with a passive capsule design is powered by P48 phantom power. Compatible with an extensive range of Neumann accessories, it can be used in a wide range of applications, from recording film foley to live shows.

Neumann KM A nx Analog output stage Key Features:

• Makes a complete microphone with Neumann KK series microphone capsules
• Adaptable to a wide range of applications
• Offers lower self-noise and high immunity to electromagnetic interference
• Requires P48 phantom power
• Includes a switch for pre-attenuation of 10dB
• Capable of handling a maximum SPL level of up to 152dB
• Compatible with a range of Neumann accessories
• Compatible with a range of Neumann accessories
• Uses an optional mechanical adapter to connect to the capsules of the KM 100 system
• Modular design allows the capsule to be detached from the output stage up to 100m
• Compatible with an LC4 cable to keep the detached head connected to the output stage

What's in the box?

• 1 x Neumann KM A nx Analogue Output Stage
• Limited 1-Year Warranty

FAQs:

What are the dimensions of the output stage?

The KM A output stage has the same dimensions as that of the KM D output stage, which is a diameter of 22mm and a length of about 93mm.

What is the output stage’s supported pre-attenuation and SPL capability?

This output section of the microphone system includes a switch for pre-attenuation of 10dB and is capable of handling a maximum SPL of 152 dB (depending upon the capsule type).

Which microphone capsules is it compatible with?

It supports the passive capsule design and is compatible with 8 KK series microphone capsules: KK 120, KK 131, KK 133, KK 183, KK 143, KK 145, KK 184, and KK 185.
