Neumann REK 4
Free delivery also available - more info

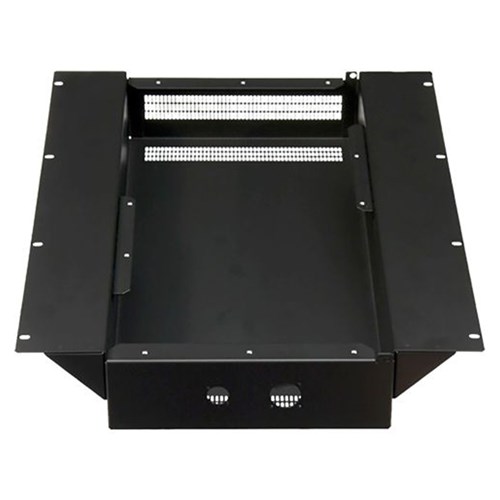

The Neumann REK 4 electronics kit allows the electronics panel of an active loudspeaker to be located up to 30 metres away from the loudspeaker cabinet. When the loudspeaker is flush-mounted, it helps with the issues of heat dissipation while enabling easy adjustment of the controls. It is designed to complement Neumann’s extensive range of monitors. More
Thinking of upgrading? Trade in today
The Neumann REK 4 electronics kit allows the electronics panel of an active loudspeaker to be located up to 30 metres away from the loudspeaker cabinet. When the loudspeaker is flush-mounted, it helps with the issues of heat dissipation while enabling easy adjustment of the controls. It is designed to complement Neumann’s extensive range of monitors.
Neumann REK 4 Key Features:
- Allows the electronics panel to be located up to 30 metres away from the cabinet
- Consists of pre-mounted cables and a damping material
- Helps in flush mounting the loudspeaker
- Enables easy adjustment of controls and easy servicing of the electronics
- Aids in the lack of a heat dissipation system
- Compatible with the standard 19” racks
- No requirement for additional space behind the cabinet as the connectors face downwards
- No requirement for additional space behind the cabinet as the connectors face downwards
- An 8-pole Speakon terminated cable carries the driver signals
- A CAT-5 cable carries the display signals
- Easy to install with the loudspeakers
What's in the box?
- 1 x REK 4 Loudspeaker Electronics’ Chassis with Pre-mounted Cables
- 1 x REK 4 Cover Plate for Loudspeaker with Pre-mounted Cables
- 1 x Piece of Damping Material
- 4 x Torx 25 Cylinder Head Screw M5x25
- 4 x Washer for M5 Screw
- 1 x Operating Manual
FAQs:
Which all cable packs are compatible with the kit?
It is compatible with cable packs of different cable lengths such as the CP 2, CP 5, CP 10, CP 15, CP 20, CP 25, and CP 30.
Which connectors are used in the REK 4?
There are two connectors used in the kit to carry the signals. The Neutrik Speakon NLT8MP, an 8-pin connector is used to carry the driver signals, and a Neutrik etherCON NE8FBV connector is used to carry the display signals.
What is it made from?
Both the cover plate and the chassis of the REK 4 kit is made from steel and weigh up to 1.2 kg and 5 kg respectively.
How much space is required for the CP cables?
It is recommended to leave a gap of at least 12 cm behind and below the chassis for the CP cables.
Back to topProduct Specification
| Amplifier | No |
| AUX Input | No |
| Connectivity | Neutrik speakON NLT8MP, 8-pin connector |
| Included Accessories | REK 4 Remote Electronics Kit |
| Size | H230 x W282 x D74mm |
| Weight | 1.2kg |
| Weight [g] | 1200.00 |
| Manufacturers Link | Neumann |
