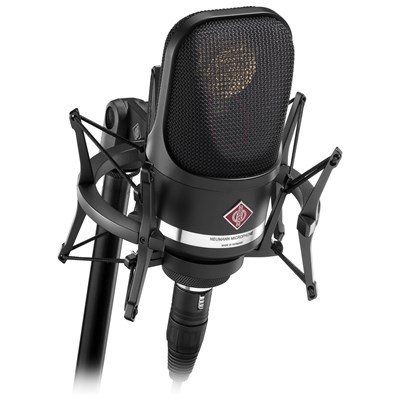

Neumann TLM 107 bk Studio Set

The Neumann TLM 107 bk is a large-diaphragm condenser studio microphone featuring five polar patterns: omnidirectional, wide cardioid, cardioid, hyper-cardioid, and figure-8. It is ideal for capturing vocals and instruments at high-definition quality for applications such as broadcasting and classical recordings. The TLM 107 blends convenience with a state-of-art design.

Neumann TLM 107 bk Studio Set Key Features:

• Delivers high definition sound quality without any colouration
• 5 polar patterns: omnidirectional, cardioid, wide cardioid, hyper-cardioid, and figure-8
• Capable of capturing anything from a whisper to massive drums
• One navigation switch can control pad, polar patterns, and low cut filter
• Offers an incredible performance to price ratio
• Retains the source of the sound for post-processing and mixing
• Tapered head grille gives it a modern and stylish look
• Tapered head grille gives it a modern and stylish look
• Consists of a dual-diaphragm condenser capsule for a transient response
• Provides a carefully balanced frequency response for all polar patterns
• Operates with a transformerless (TLM) circuit
• Maintains an open sound and unrestricted bass transmission at high levels
• Capable of withstanding enormous sound pressure levels of up to 141dB
• Has a very low self-noise of up to 10dB-A
• Treble boost above 8kHz maintains detail and articulation in the sound

Expanded Neumann TLM 107 bk Studio Set Key Features:

Neumann Engineering

The Neumann TLM series microphones feature a transformerless (TLM) circuit for open and transparent sound reproduction. Even at high signal levels, it helps in maintaining a full, unrestricted bass transmission. The high SPL capability of up to 141dB ensures recording of various instruments without clipping. Even without the two pad settings, the SPL capability can increase up to 153dB with pre-attenuation. The low self-noise of 10dB-A is much lower than the ambient noise in a very quiet recording studio, which helps in capturing clear sound without any unwanted distortion or noise. Two low-cut settings are available in this microphone to reduce rumble and compensate for the proximity effect in close-miking situations.

Polar Patterns

This microphone features a unique and modern design with the tapered head grille and dual-diaphragm condenser capsule. There are five polar patterns available for different recording situations: omnidirectional, cardioid, wide cardioid, hyper-cardioid, and figure-8. There is a navigation switch at the back that controls all the settings in one place: pad (0/–6 /–12dB), low cut (linear/40Hz/100Hz) and polar patterns. The capsule is specifically designed to offer a transient response and a carefully balanced frequency response for all polar patterns. You can adjust the directional pattern of the microphone according to the recording situation and not affect the overall sound balance.

Wide Applications

Initially designed for small studios, this microphone exceeds the application range with its outstanding sound quality. It can be used in various ways such as for broadcasting, classical recordings, and capturing vocals. The five selectable pickup patterns enable the use of close miking of instruments without any colouration. The high SPL capability and low self-noise make it ideal for a wide range of instruments such as upright bass, drums, percussion, piano, acoustic guitar, and electric guitar. The TLM 107 is flexible enough to capture anything from a slight whisper to massive bass drums.

What's in the box?

• 1 x Neumann TLM 107 bk Microphone
• 1 x EA 4 bk Shock Mount
• Limited 2-Year Warranty

FAQs:

How can the navigation switch be used to control the settings?

The navigation switch at the back of the microphone can be used to adjust all the settings: pad, polar patterns, and low-cut filter. Pressing the switch in the centre position will activate the display, and the polar patterns can be selected by activating the switch upwards or downwards. A high-pass filter with a cutoff frequency of –3dB can be selected for 40Hz or 100Hz by activating the switch towards the right, and the pre-attenuation of –6dB or –12dB can be set by activating the switch towards the left.

How can noise interference be suppressed?

The frequency response of the microphone extends below 20Hz and is sensitive to low-frequency interference such as structure-borne noise or the wind. An additional pop screen, elastic suspension, or foam windscreen can be used to suppress the noise interference.

How much does it weigh?

The TLM 107 has a compact and modern construction in nickel colour. It weighs up to 445 grams for easy handling.

What accessories are compatible with the microphone?

Various Neumann accessories can be used with the microphone such as elastic suspensions, pop screen, an auditorium hanger, stand mounts, table and floor stands, and microphone cables.
