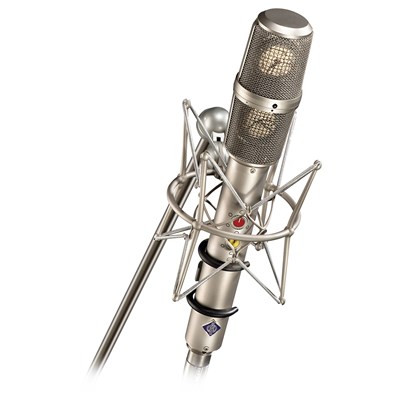

Neumann USM 69 i mt Microphone

Ideal for professional recording, the Neumann USM 69 i Microphone combines two multi-pattern capsules and amplifier stages. It features K67 capsules that can be configured independently for customised results. The amplifier stages also enable independent mono recording for audio backups. This powerful stereo microphone delivers pristine audio quality ideal for instrumental recordings.

Neumann USM 69 i mt Microphone Key Features:

• Ideal for instrumental and vocal recordings in the studio
• Used in professional recording sessions, concert halls, voice-over, and broadcast
• One-point design for MS- and XY stereo capturing techniques
• Multi-pattern capsules are rotatable at up to 270° for the desired setting
• Capsules with flexible polar patterns for the ultimate audio experience
• Five patterns; figure-8, cardioid, omnidirectional, wide-angle cardioid & hypercardioid
• Integrated rotary switches to select the polar pattern
• Integrated rotary switches to select the polar pattern
• Independent amplifier stages for mono operation in audio backup recordings
• Large diaphragm capsules for natural and better audio quality
• Balanced transformer circuit with a low noise floor (13 dBA-A) and exceptional audio
• Capsules have independent XLR 5 output connector pins
• Active subsonic filter for overload protection caused by structure-borne noise
• Serves as its own backup
• Remains operational in case the capsule’s DC converter fails

Expanded Neumann USM 69 i mt Microphone Key Features:

One-point Mic System

In situations where two microphones are required, audio setups can be challenging, especially during live shows. The USM 69 i is a powerful one-point mic system that makes it easy for you to use various stereo recording techniques. The Neumann microphone has two independent vertically-mounted dual-diaphragm capsules. These capsules feature five polar patterns and are rotatable up to 270° against each other for optimised results. With a variety of polar patterns (figure-8, cardioid, wide-angle cardioid, hypercardioid, and omnidirectional), you can set the mic to XY and MS stereo techniques. Also, the condenser capsules have separate amplifier XLR 5 output connector pins. This provides the capabilities of two microphones in one device.

Versatile Application

Without worrying about distortion or excessive noise, you can use the Neumann USM 69 i microphone for all your recording needs. A dependable stereo device for vocal and instrumental music applications, it is used to record drum overheads, harp, and grand piano sounds. It can also be used with solo instruments where spatial movement and stereo width are required to enhance the overall listening experience. Neumann's mic is also a great choice when it comes to audio book productions, radio drama alongside standard sound. You can also use it to record mono audios with separate polar patterns.

Exceptional Dependability

The USM 69 i microphone features two condenser capsules and amplifier stages that work independently, providing users with backup audio. Especially useful in high-reliability audio sessions, if one capsule or amplifier stage fails or is accidentally disconnected, the other side continues functioning. In cases where the capsule bias DC converter fails to operate, the Neumann microphone still continues to work. In this situation, both the systems select the cardioid polar pattern automatically and continue performing with a slightly decreased sensitivity. This dependable microphone also features an active subsonic filter to protect the output transformers from overloading problems.

What's in the box?

• 1 x Neumann USM 69 i Variable Pattern Stereo Microphone (MT)
• Limited 1-Year Warranty

FAQs:

What is the benefit of using this dual capsule stereo microphone?

This powerful stereo microphone includes two independently configurable capsules with rotary switches. You can benefit from the added security of backup audio.

Where can I use the Neumann microphone?

This Neumann USM microphone is ideal for recording professional audio, film dubbing, voice-over, foley, broadcast, and stage shows.

How many XLR connector pins are available in the USM 69 i?

This microphone with dual amplifier stages has two capsules with independent amplifier heads. These heads come with separate XLR 5 output connectivity pins to give you the advantage of two microphones in one.

How can I stop distortion and external noise while recording?

Neumann USM 69 i has 13 dB-A self-noise and 132 dB high sound pressure level capability. This allows you to place the microphone freely for efficient imaging and sound quality without distortion or noise issues.
