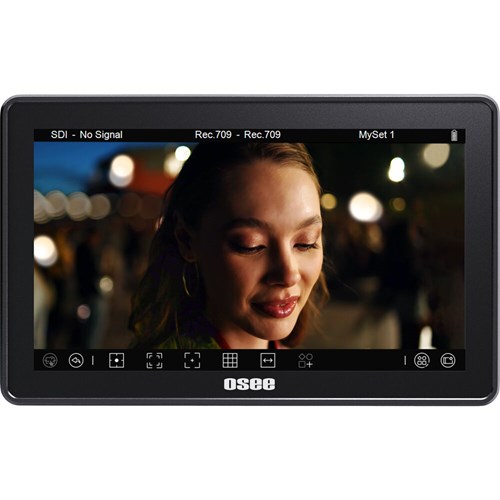

Osee G7 Pro 7in Touchscreen Field Monitor with Camera Control
The Osee G7 Pro 7in Touchscreen Field Monitor with Camera Control is a professional on-camera display designed for precision monitoring and direct camera operation. Its 7-inch 1920 × 1080 touchscreen delivers 3000 cd/m² brightness and 1300:1 contrast for accurate visibility outdoors. Supporting HDMI up to UHD 4K and 3G-SDI up to 2K, it integrates camera control via USB-C, allowing operators to adjust exposure, focus, and recording settings directly from the screen.
Osee G7 Pro 7in Touchscreen Field Monitor with Camera Control Key Features:
- 7-inch 1920 × 1080 touchscreen with 10-bit colour depth
- 3000 cd/m² brightness and 1300:1 contrast for daylight visibility
- HDMI input/output up to 4K30 and 3G-SDI input/output up to 2K
- Integrated USB-C camera control for compatible models
- Preinstalled 3D LUTs for major camera profiles with up to 10 custom uploads
- Supports HDR and Rec.709 monitoring with accurate Log conversion
- Waveform, vectorscope, false colour, histogram, and focus assist tools
- Rugged aluminium chassis with silicate glass touchscreen
- Powered via L-series battery, USB-C PD input, or D-Tap connection
- Includes D-Tap to DC cable and USB-C cable
High-brightness touchscreen for professional visibility
The G7 Pro’s 7-inch LCD touchscreen delivers 3000 cd/m² brightness with 1300:1 contrast, maintaining accurate tonal separation in bright sunlight or controlled studio lighting. The 10-bit colour engine supports over one billion colours, ensuring smooth gradients and precise reproduction of HDR and Log footage. Its 178° viewing angle allows crews to monitor from different positions without loss of contrast, making it ideal for on-set collaboration.
Integrated camera control via USB-C
Through its dedicated USB-C port, the G7 Pro enables direct control over key camera settings, including ISO, shutter speed, aperture, focus, and record start/stop. Compatible models include cameras from Canon, Panasonic, Sony, Z CAM, Nikon, and Fujifilm, providing a unified control interface across brands. This system reduces the need for separate controllers, simplifying handheld or gimbal operation where quick adjustments are critical.
Advanced colour and LUT management
Preloaded with LUTs for major camera profiles—such as ARRI Log-C, Canon Log 2/3, Panasonic V-Log, RED Log3G10/Film, and Sony S-Log3—the G7 Pro delivers accurate Log-to-Rec.709 conversion on set. Users can upload up to ten custom 3D LUTs via SD card, supporting 17³, 33³, and 65³ cube formats for look development or calibration. This flexibility ensures consistent colour across multiple cameras and post-production pipelines.
Comprehensive exposure and monitoring tools
The G7 Pro incorporates advanced tools for exposure and image analysis, including waveform, vectorscope, histogram, zebra, and audio metering. Super False Colour and anamorphic de-squeeze assist with accurate exposure and framing, while focus peaking and magnification provide precision for manual focus pulls. Scene and aspect-ratio markers allow operators to match broadcast, cinematic, or social-media framing standards directly in view.
Durable construction with flexible power options
Built from lightweight aluminium with silicate glass protection, the G7 Pro withstands demanding production environments. The rear L-series battery plate supports continuous field use, while a USB-C PD input and an included D-Tap-to-DC cable provide additional power options from professional batteries. Dual HDMI and SDI inputs with loop outputs allow simultaneous monitoring or signal routing to external recorders or transmitters.
What's in the box?
- 1 × Osee G7 Pro 7in Touchscreen Field Monitor
- 1 × D-Tap to DC power cable
- 1 × USB-C cable
FAQs
Which cameras support USB-C control on the G7 Pro?
The G7 Pro currently supports camera control for models including Canon EOS R6/R6 II/5D IV, Panasonic GH5S/GH6/S5 series, Sony a7 IV/FX3, Z CAM E2 series, Nikon Z9/Z6 II, and Fujifilm GFX100 II/X-T5/X-S20.
Does the G7 Pro support HDR or Log display modes?
Yes. It includes HDR support with Rec.709 colour and preinstalled Log conversions, ensuring accurate exposure and tone mapping for HDR, HLG, and standard Log workflows.
How can I upload custom LUTs?
Insert an SD card (up to 16 GB) into the monitor’s slot and load 3D LUTs in 17³, 33³, or 65³ cube formats. Up to 10 LUTs can be stored simultaneously.
What are the available power options?
An L-series battery, a USB-C PD input, or a D-Tap connection via the supplied cable can power the monitor. A DC input is also available for continuous power during longer setups.
Is the display suitable for outdoor use?
Yes. With 3000 cd/m² brightness, the G7 Pro remains visible in full daylight without requiring a sunhood, maintaining colour accuracy and contrast in any lighting conditions.
Back to topProduct Specification
| Audio Monitoring | 3.5 mm headphone output |
| Brightness | 3000 cd/m² (nits) |
| Connections | 1 × HDMI 1.4 input 1 × HDMI 1.4 output 1 × 3G-SDI input 1 × 3G-SDI output 1 × 3.5 mm headphone output 1 × USB-C input/output (shared with camera control and power) 1 × Barrel DC input 1 × SD card slot for LUT and firmware updates |
| Contrast Ratio | 1300:1 |
| Dimensions | 178 × 111.6 × 28.9 mm |
| Display | 1920 × 1080 touchscreen LCD with 10-bit colour depth and HDR support |
| LUT Support | Preinstalled 3D LUTs for major camera profiles (ARRI, Canon, Panasonic, RED, Sony, Fujifilm, Nikon, Blackmagic) User LUT upload via SD card (up to 10 custom LUTs, 17³ / 33³ / 65³ cubes) |
| Panel Type | LCD |
| Power Consumption | 16W |
| Power Options | 1 × Sony L-series battery mount USB-C PD input (7–16 VDC) Barrel DC input D-Tap connection via included cable |
| Recording Formats and Framerates | HDMI: DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 DCI 2K: 50/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI: DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Resolution | 1920 × 1080 (Full HD) |
| Screen Size | 7" |
| Storage Media | Single SD card slot (for LUT upload and firmware update) |
| Timecode | Display via SDI input |
| Weight | 409g |
